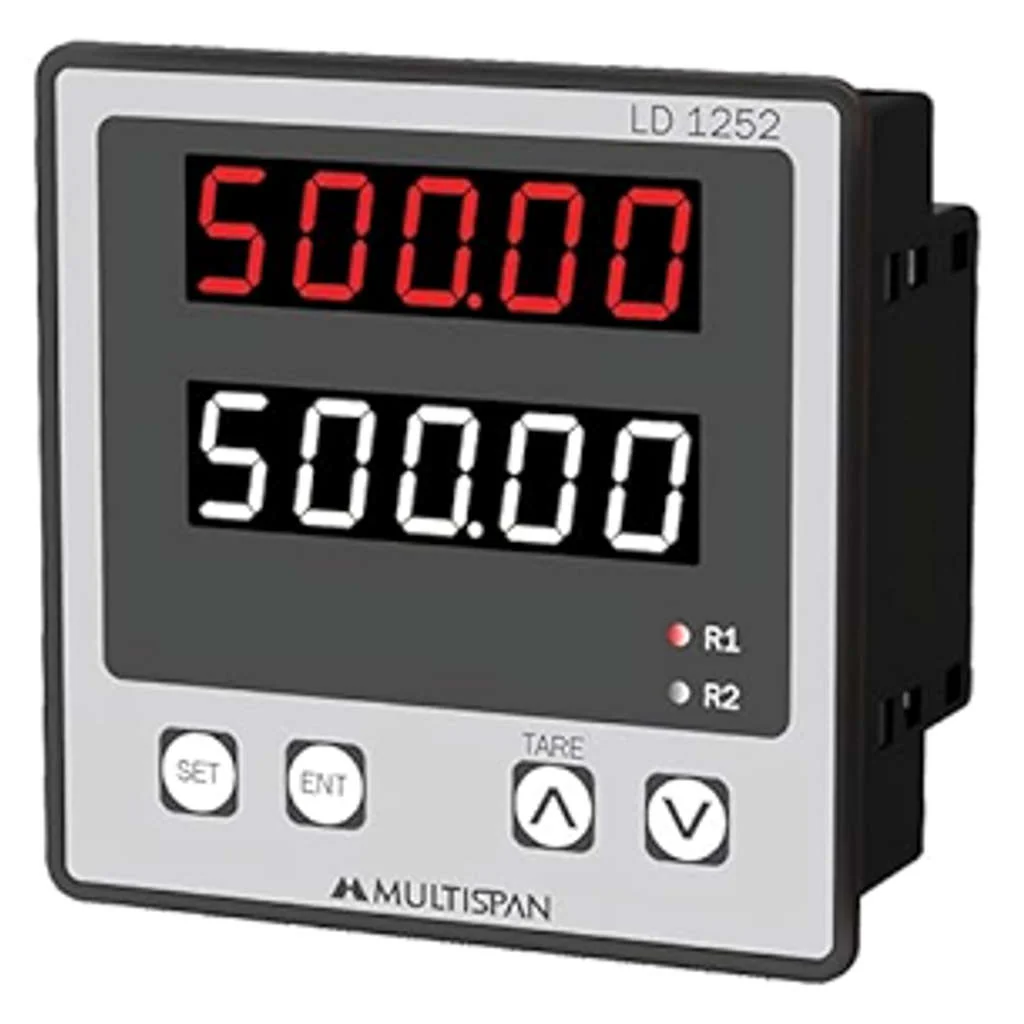

Multispan Load Cell Indicator With Relay Output LD-1252

Brand

Multispan

Product Type

Indicator

Product Model

LD-1252

Input

0-20mV DC / 0-30mV Dc from load cell (Factory cell)

Analog Input

0-10V DC / 4-20mA DC/ 0-20mA DC (Configurable)

Range

0 to 99999

Output

1 Relay & 2 Relay (1 Relay by default)
10V DC@100mA DC load cell supply (by default)
0-10V DC / 4-20mA DC Retransmission
RS-485 Modbus (Optional)

Accuracy

±0.5% of FSD

Supply

100 to 270V AC (SMPS), 50/60Hz

Note

Actual product image may vary from that shown on the picture

Pannel Cutout

92 x 92 mm

Dimension (HxWxD)

96 x 96 x 54 mm

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) - L x B x H

9.6 x 9.6 x 5.4

Unit of Measurement

1 Piece

Weight

0.75 kg

Generic Type

Indicators

Manufacturer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Packer Details

Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445

Country of Origin

India
