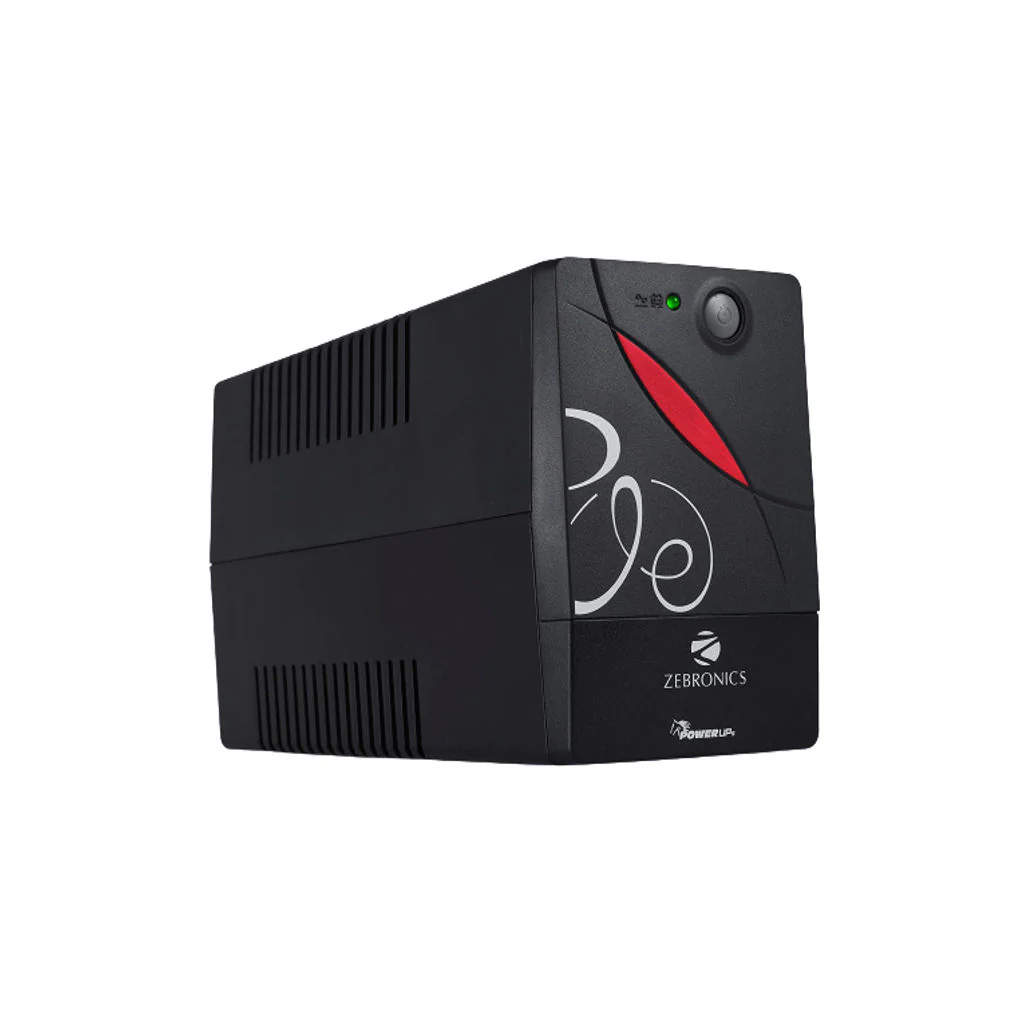

Zebronics UPS 600VA

Product Description

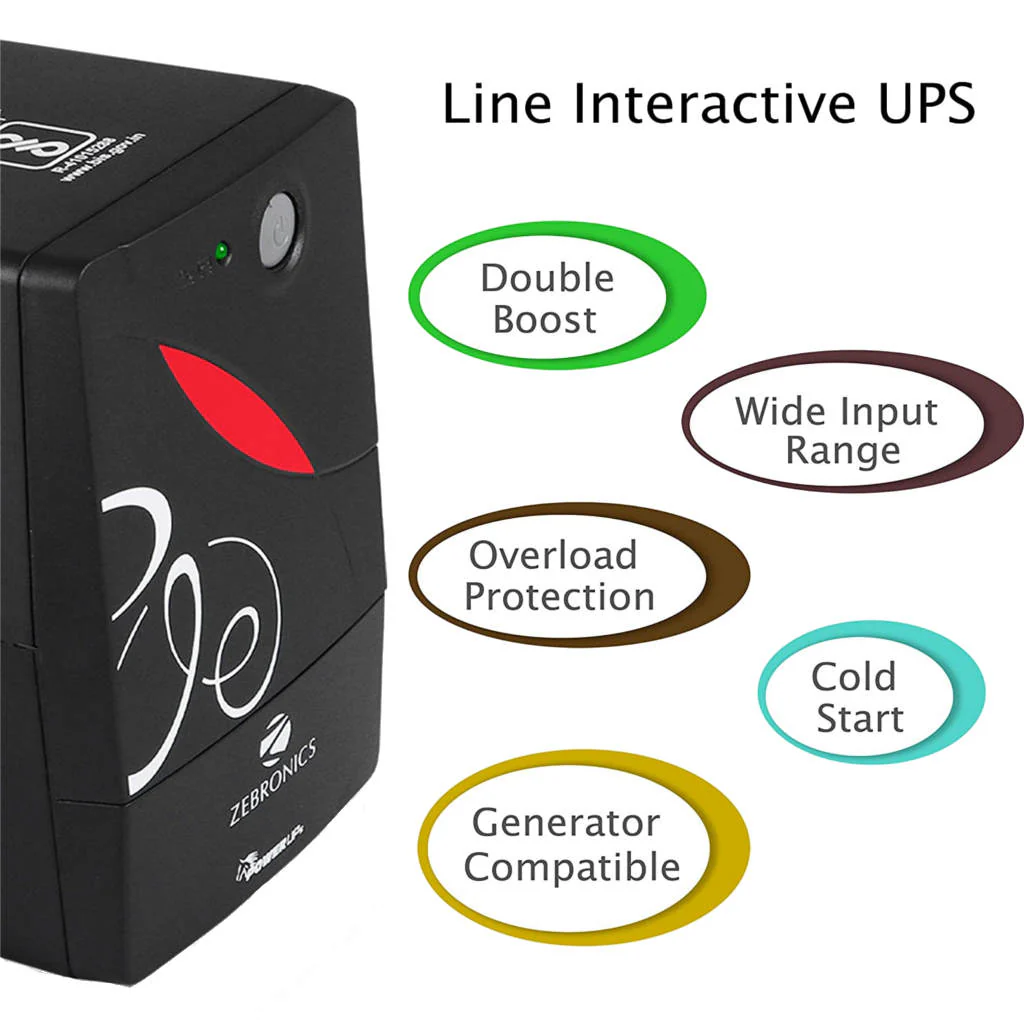

• Zeb-U725 is a line-interactive UPS that comes with wide input range

• 3 output sockets

• LED and audible alarms

• Type Offline/Standby

• Overload Protection

• U725 is a line interactive UPS that comes with overload protection that helps in saving your connected device from damage cost by overloading.

• Sleep Mode Charging /LED & Audible Alarm

• The UPS supports sleep mode charging and it also comes with LED indicator and audible alarm that alerts the user incase of a fault

• Automatic Voltage Regulation

• The UPS regulates the output voltage according to the given input voltage inorder to provide us constant output waveform

• Features

• Line interactive UPS

• Auto restart while AC is recovering

• Double Boost

• Automatic Voltage Regulation (AVR)

• Wide Input Range

• Micro-controller Based

• Generator Compatible

• Indicators

• AC Mode: Green LED Glows

• Battery Mode: Green LED blinks

• Battery Mode: Beeping every 10 Seconds

• Low Battery: Beeping every Seconds

• Overload: Beeping every 0.5 seconds

• Fault: Continuous Beeping

Product Specification

Brand	Zebronics
Product Type	UPS

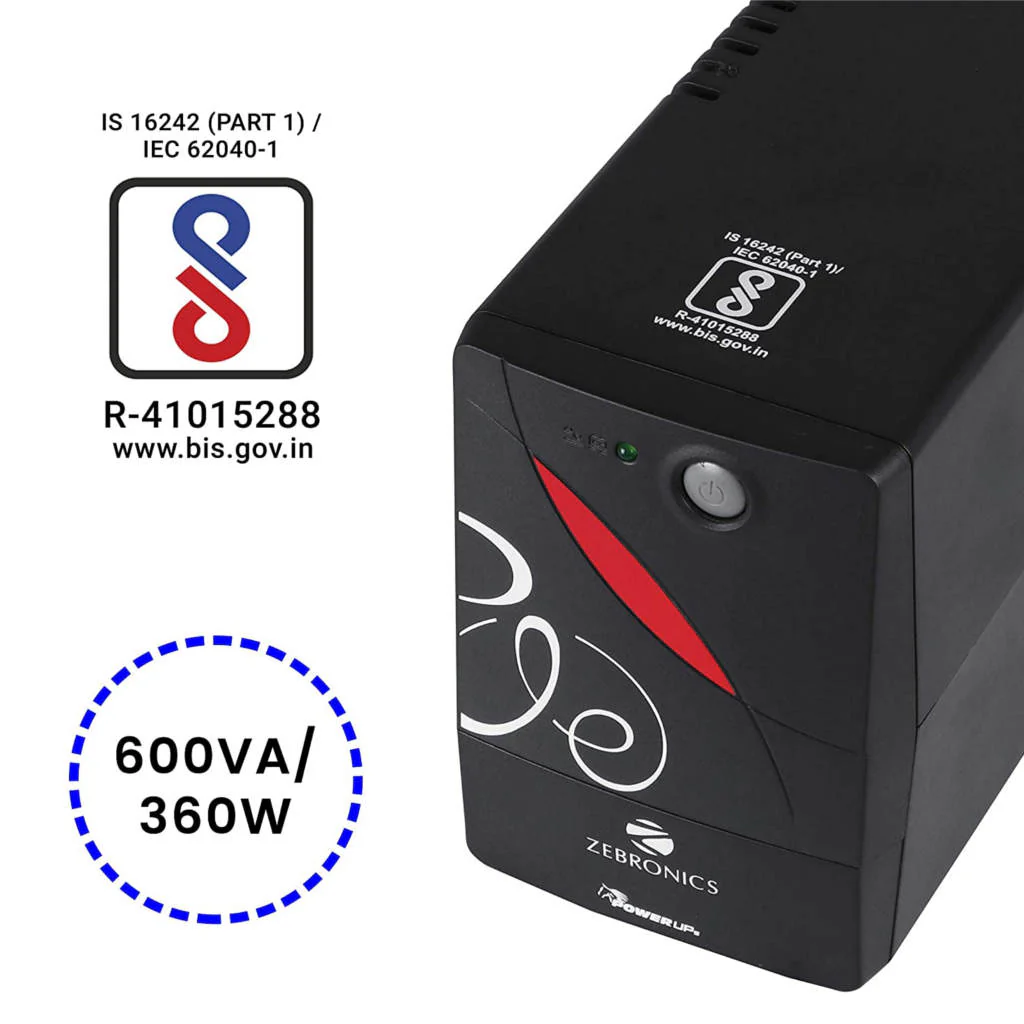

Capacity	600VA/360W
Input Voltage	220-240VAC
Input Voltage Range	140-300VAC
Output Voltage Regulation (Batt.mode)	230VAC +/- 10%
Transfer Time	Typical 4-8 ms
Waveform	Simulated Sine Wave
Battery Type	12V/7Ah x 1nos
Recharge Time	4-6 hours to 90% after complete discharge
Dimension (L x W x H)	280x100x142 mm
Weight	4 Kgs
Warranty	1 Year
