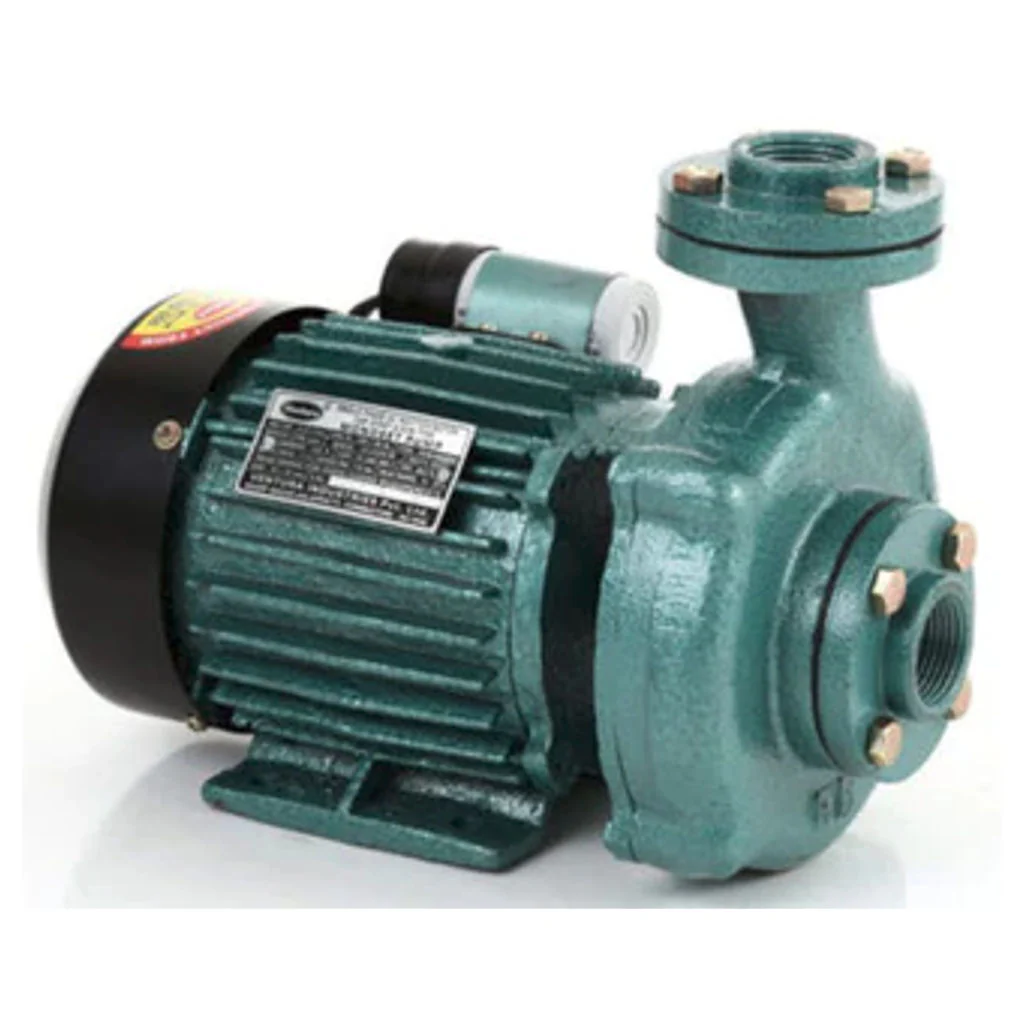

Ventura Cast Iron Body Centrifugal Monobloc Pump 0.37-1.50kW
Product Description
-
High quality extruded Cast Iron body
Power savings up to 15%
Wide voltage range 160 to 240 Volt
Capacitor start and capacitor run type (Eliminating centrifugal switch)
-
For High discharge application
Note : Actual product image may vary from that shown in the picture.
Product Specification
|
Power kW / HP |
Model |
Pipe Size (mm) |
Head Range (Meter) |
Discharge Range (lph) |
|
Minimum - Maximum |
||||
|
0.37 / 0.50 |
VCM 0522 |
25 x 25 |
6-16 |
100-25 |
|
0.37 / 0.50 |
VCM 0522 3P |
25 x 25 |
6-16 |
100-25 |
|
0.37 / 0.50 |
VCM 0522 HH |
25 x 25 |
6-24 |
130-30 |
|
0.37 / 0.50 |
VCM 0544 |
40 x 40 |
6-12 |
200-140 |
|
0.55 / 0.75 |
VCM 0722 |
25 x 25 |
10-26 |
120-40 |
|
0.75 / 1.00 |
VCM 1022 |
25 x 25 |
14-28 |
130-55 |
|
0.75 / 1.00 |
VCM 1032 |
35 x 25 |
12-26 |
160-90 |
|
0.75 / 1.00 |
VCM 1044 |
40 x 40 |
6-20 |
230-174 |
|
0.75 / 1.00 |
VCM 1055 |
50 x 50 |
6-14 |
400-300 |
|
1.10 / 1.50 |
VCM 1543 |
40 x 32 |
14-28 |
180-144 |
|
1.10 / 1.50 |
VCM 1554 |
50 x 40 |
12-22 |
300-150 |
|
1.50 / 2.00 |
VCM 2054 |
50 x 40 |
16-28 |
300-190 |
|
1.50 / 2.00 |
VCM 2055 |
50 x 50 |
12-20 |
400-300 |
|
1.50 / 2.00 |
VCM 2065 |
65 x 50 |
10-18 |
540-470 |
|
0.37 / 0.50 |
Slow Speed 1440 RPM |
25 x 25 |
6-30 |
2400-600 |
|
0.75 / 1.00 |
Slow Speed 1440 RPM |
25 x 25 |
6-36 |
3600-1020 |
