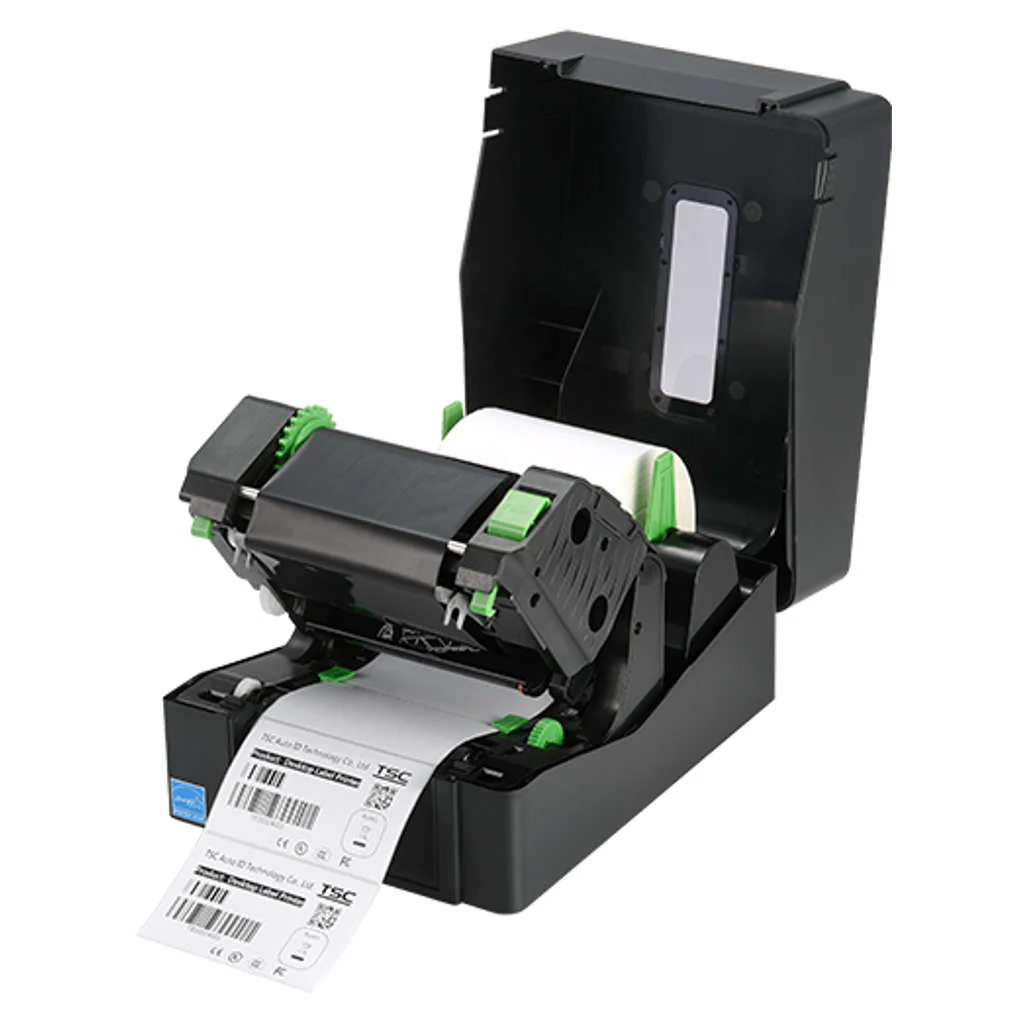

TSC TE Series 4 Inch Thermal Transfer Desktop Printer TE210

Brand

TSC

Product Type

Desktop Printer

Product Model

TE210

Product Series

TE

Resolution

8 dots/mm (203 DPI)

Printing Method

Thermal Transfer & Direct Thermal

Maximum Print Speed

152.4 mm (6”)/second

Maximum Print Width

108 mm (4.25“)

Maximum Print Length

25,400 mm (1000“)

Label Roll Capacity

127 mm (5“) OD

Ribbon

300 m long, max. OD 67 mm, 1” core (ink coated outside)
110 m long, max. OD 40 mm, 0.5” core (ink coated outside)

Ribbon Width

40 mm ~ 110 mm (1.6” ~ 4.3”)

Processor

32-bit RISC CPU

Memory

128 MB Flash memory
64 MB SDRAM

Interface

USB 2.0
Internal Ethernet, 10/100 Mbps
RS232
USB host, for scanner or PC keyboard
Internal Bluetooth 4.0 (factory option)
External Bluetooth (user option)

Power

External universal switching power supply

Input: AC 100-240V, 2.5A, 50-60Hz
Output: DC 24V, 2.5A, 60W

Operation Switch,Button LED

1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)

Sensors

Transmissive gap sensor
Black mark reflective sensor (position adjustable)
Ribbon end sensor
Head open sensor

Real Time Clock

Standard

Buzzer

Standard

Internal Fonts

8 alpha-numeric bitmap fonts
Monotype Image true type font engine with one CG Triumvirate Bold Condensed
scalable font

Bar Code

1d Bar Code

Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with
check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN
and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post,
ITF14, Code 11, Telepen, Telepenn, Planet, Code49, Deutsche Post Identcode, Deutsche
Post Leitcode, LOGMARS
2D Bar Code
GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417

Font And Barcode Rotation

0, 90, 180, 270 degree

Printer Language

TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Media Type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media Width

20 ~ 112 mm (0.8“ ~ 4.4“)

Media Thickness

0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Media Core Diameter

25.4 ~ 38 mm (1” ~ 1.5”)

Label Length

5 ~ 25,400 mm
(0.2“ ~ 1000“)

Environment Condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety Regulation

FCC Class B, CE Class B, C-Tick Class B, UL,
cUL, TÜV/safety, CCC, EAC, CoC, BIS, KC,
Energy Sta

Environmental Concern

Comply with RoHS, REACH, WEEE

Factory Options

Internal Bluetooth 4.0

Enclosure

ABS plastic

Accessories

Windows labeling software CD disk
Quick start guide
USB cable

Power cord
External universal switching power supply
1” label spindle, fixing tab x 2, 1.5” adapter x 2
1” ribbon spindle x 2 for 300M ribbon
1” ribbon paper core

Physical Dimension(W x H x D)

204 x 164 x 280 mm
8.03 x 6.46 x 11.02 Inch

Weight

2.5 kg (5.51 lbs)

Warranty

Limited Warranty

Printer: 2 years
Print head: 25 km (1 million inches) or 12 months which comes first
Platen: 50 km (2 million inches) or 12 months which comes first

Dimension (MM) - L x B x H

204 x 164 x 280

Unit of Measurement

1 Piece

Weight

2.5 kg

Generic Type

Thermal Printer
