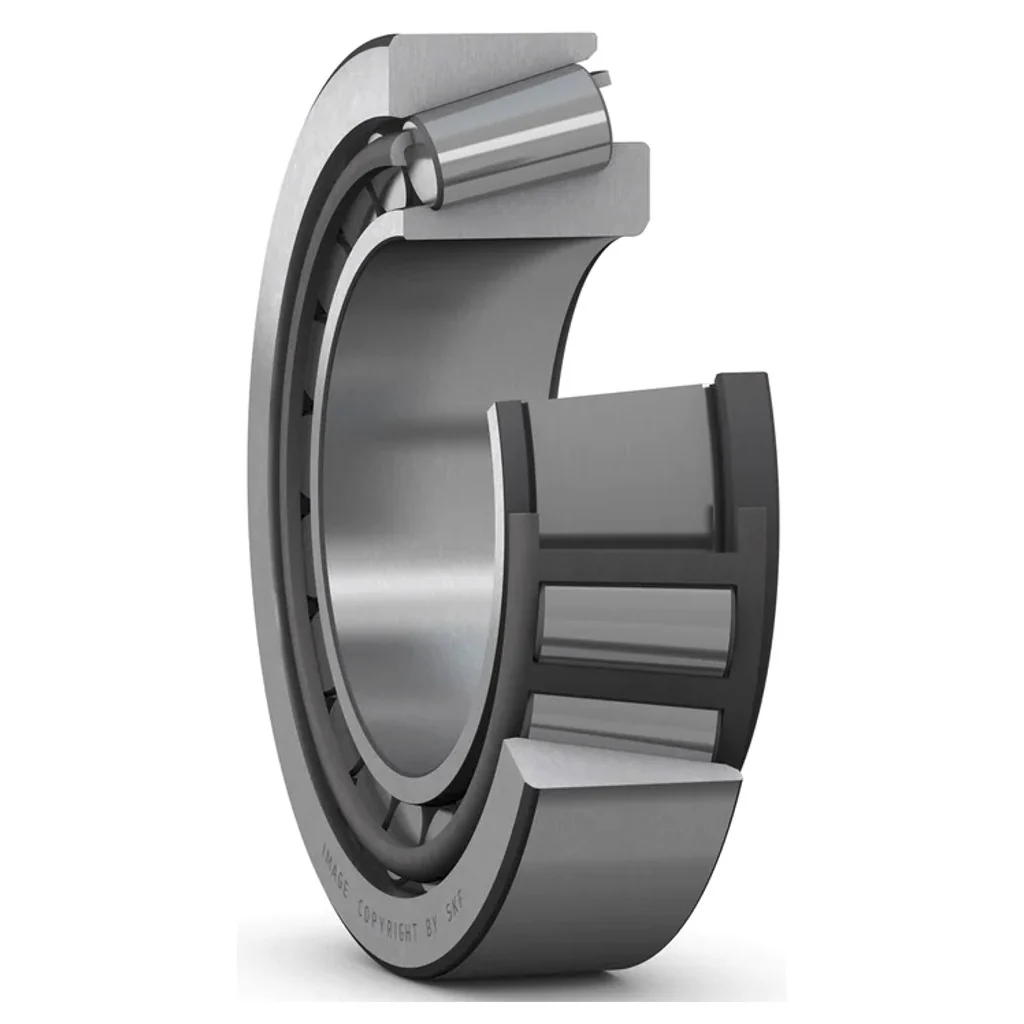

SKF Single Row Tapered Bearing 3585/3525/Q
Product Description
-
Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation
-
The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance
-
By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved
-
High radial and axial load carrying capacity
-
Accommodate axial loads in one direction
-
Low friction and long service life
-
Separable and interchangeable components
Product Specification
| Brand | SKF |
| Product Type | Bearing |
| Product Model | 3585/3525/Q |
| Basic Dynamic Load Rating | 102 kN |
| Basic Static Load Rating | 132 kN |
| Limiting Speed | 8 500 r/min |
| Reference Speed | 6 000 r/min |
| Bore Diameter | 45.237 mm |
| Contact Angle | 11.542 ° |
| Outside Diameter | 87.312 mm |
| Inner Ring | 30.886 mm |
| Outer Ring | 23.812 mm |
| Total | 30.886 mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Unit of Measurement | 1 Piece |
| Weight | 1000 kg |
| Generic Type | Deep Groove Ball Bearings |
| Manufacturer Details | SKF India Limited Chinchwad, Pune , Maharashtra, 411 033, india Phone : 1800 222 007 |
| Packer Details | SKF India Limited Chinchwad, Pune , Maharashtra, 411 033, india Phone : 1800 222 007 |
| Country of Origin | India |
