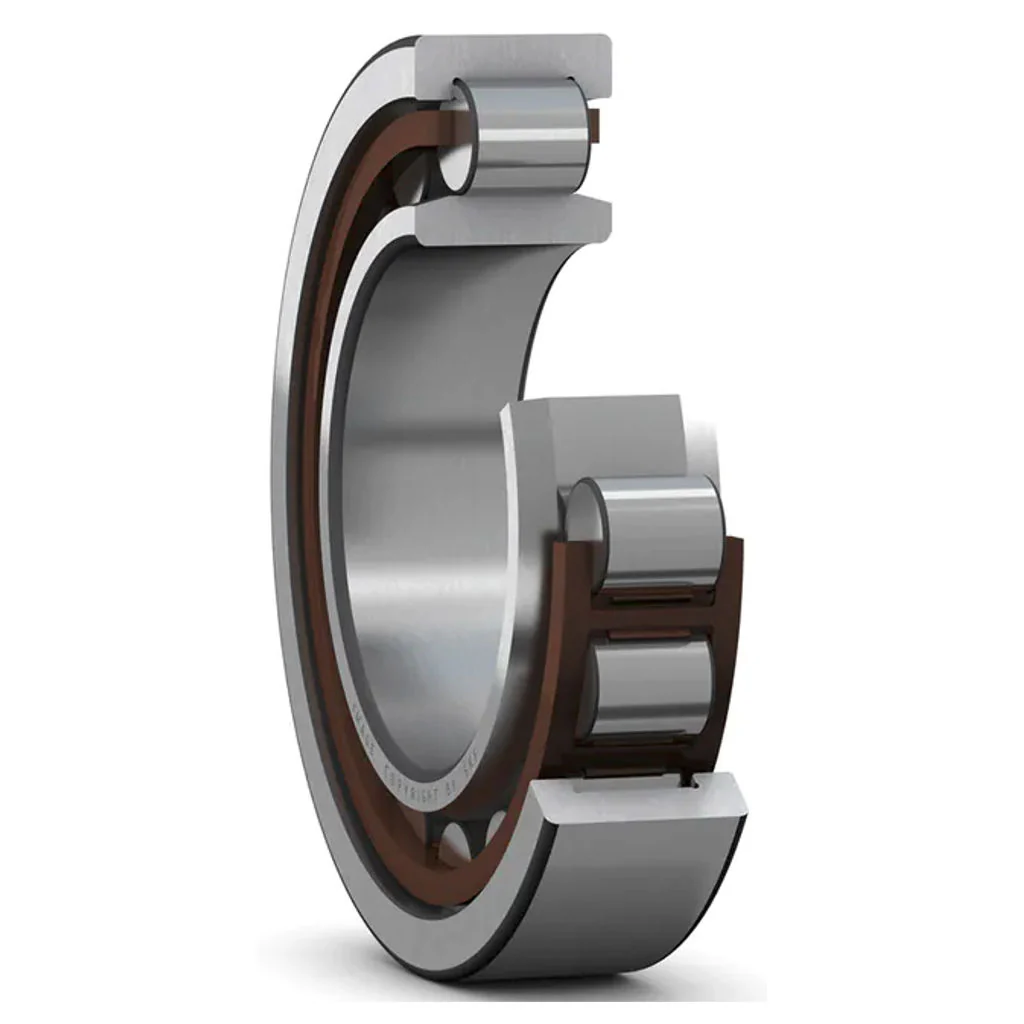

SKF Single Row Cylindrical Roller Bearing NU 324 ECP/C3
Product Description
-
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds
-
Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions
-
An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged
-
High radial load carrying capacity
-
Low friction
-
Long service life
-
Accommodate axial displacement in both directions
-
Separable design
Product Specification
|
Brand |
SKF |
|
Product Type |
Bearing |
|
Product Code |
NU 324 ECP/C3 |
|
Basic Dynamic Load Rating |
610 kN |
|
Basic Static Load Rating |
620 kN |
|
Limiting Speed |
3200 r/min |
|
Reference Speed |
2800 r/min |
|
Bore Diameter |
120 mm |
|
Outside Diameter |
260 mm |
|
Width |
55 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Unit of Measurement |
1 Piece |
|
Weight |
10000 kg |
|
Generic Type |
Cylindrical Roller Bearing |
|
Manufacturer Details |
SKF India Limited Chinchwad, Pune , Maharashtra, 411 033, india Phone : 1800 222 007 |
|
Packer Details |
SKF India Limited Chinchwad, Pune , Maharashtra, 411 033, india Phone : 1800 222 007 |
|
Country of Origin |
India |
