SKF Bearing Induction Heater TIH 030M/230V
Product Description
-

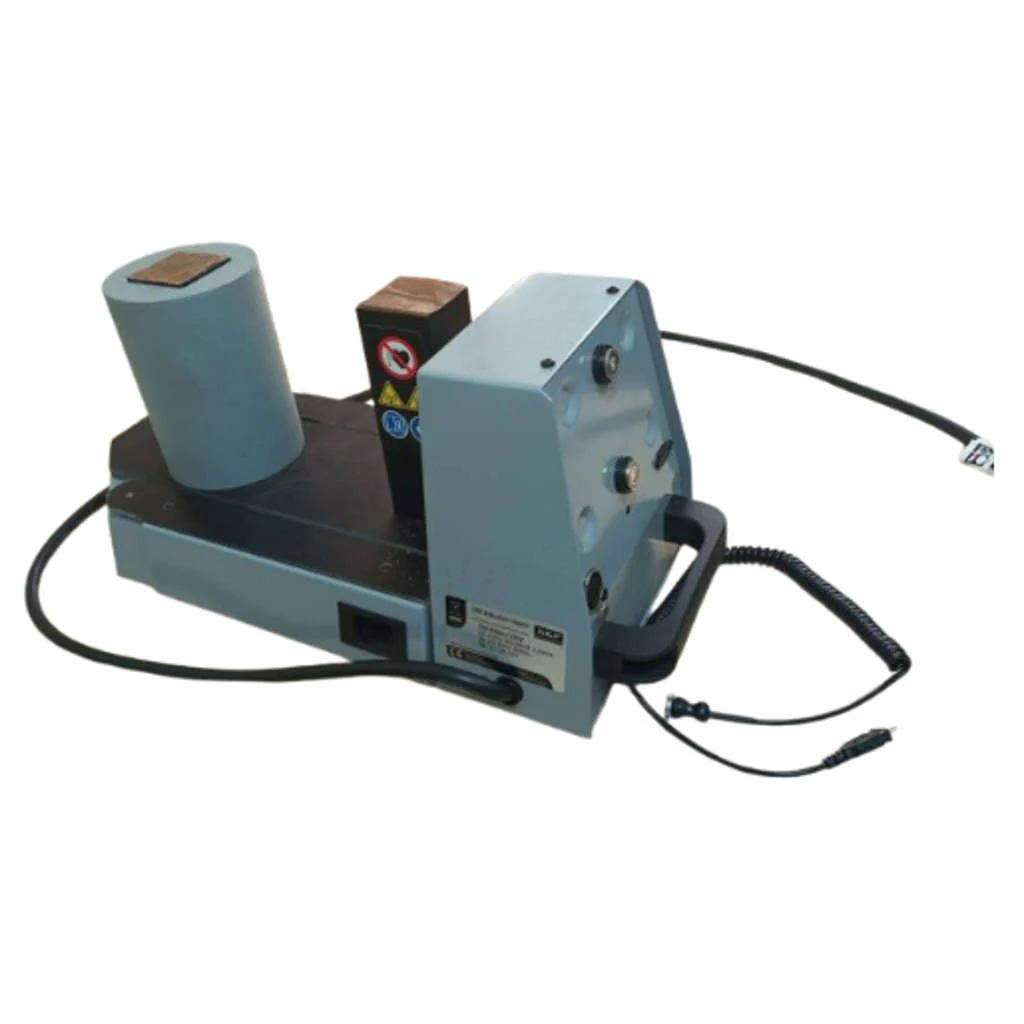

The SKF TIH 030M is a small induction heater and is designed for the hot mounting of bearings
-
This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications
-
Supplied with three yokes and foldable support arms, the heater is capable of heating bearings with a bore diameters of 20 mm or more and with a maximum weight of 40 kg
-
Easy and safe to use with automatic temperature control or time controlled heating
-
Automatic demagnetization reduces risk of bearing contamination
-
Suitable for non-bearing applications for workpieces weighing up to 20 kg
-
Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
-
Warranty and support will be provided by vendor
-
Note: *Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
SKF |
|
Product Type |
Heater |
|
Product Model |
TIH 030M/230V |
|
Workpiece Bore Diameter |
20 to 300 mm |
|
Operating Area Height |
135 mm |
|
Operating Area Width |
100 mm |
|
Coil Diameter |
95 mm |
|
Workpiece Weight (Maximum) |
40 kg |
|
Heating Temperature (Maximum) |
250 °C |
|
Power Consumption (Maximum) |
2 kVA |
|
Voltage |
220.0 – 240.0 V |
|
Voltage Frequency |
50.0 – 60.0 Hz |
|
Heating Temperature Steps |
1 °C |
|
Heating Temperature Control |
0 to 250 °C |
|
Temperature Measurement |
Magnetic probe K-type |
|
Heating Time Steps |
0.1 min |
|
Heating Time Control |
0.1 - 60 minutes min |
|
Thermometer Mode |
Yes |
|
Time Mode |
Yes |
|
Power Setting |
50% 100% |
|
Remote Control Panel (Wired) |
Yes, with LED display |
|
Demagnetisation After Heating (according Skf Norms) |
< 2 A/cm |
|
Error Guiding Codes |
Yes |
|
Thermal Overload Protection |
Yes |
|
Cooling Fan |
No |
|
Housing Material |
Glass fibre filled polyamide |
|
Bearing Support Arms |
Yes, foldable |
|
Yoke Storage |
Yes, internal |
|
Main Yoke Type |
Loose yoke |
|
Heating Performance Example (bearing, Weight, Temperature, Time) |
23136 CC/W33, 28 kg, 110 °C, 20 min |
|
Colour |
Grey & Black |
|
Dimensions (W X L X H) |
195 x 450 x 210 mm |
|
Product Net Weight |
21.2 kg |
Original: $1,350.32
-70%$1,350.32
$405.10
