Siemens Simatic ET 200SP Analog Input Module 6ES71346GF000AA1
Product Description
-
An analog input module is a component in a control system, often used in industrial automation and data acquisition systems, to measure and convert analog signals into digital data that can be processed by a control system or computer
-
Signal Conversion
-
Converts analog signals (such as voltage or current) into digital signals that can be read and processed by a digital system like a PLC (Programmable Logic Controller) or a computer
-
Signal Conditioning
-
May include features to filter, amplify, or otherwise condition the incoming signals to ensure accurate measurements
-
Resolution and Accuracy
-
Provides high-resolution measurements to ensure precision in the data acquisition process
-
The resolution is determined by the number of bits used in the analog-to-digital conversion
-
Warranty and support will be provided by vendor
-

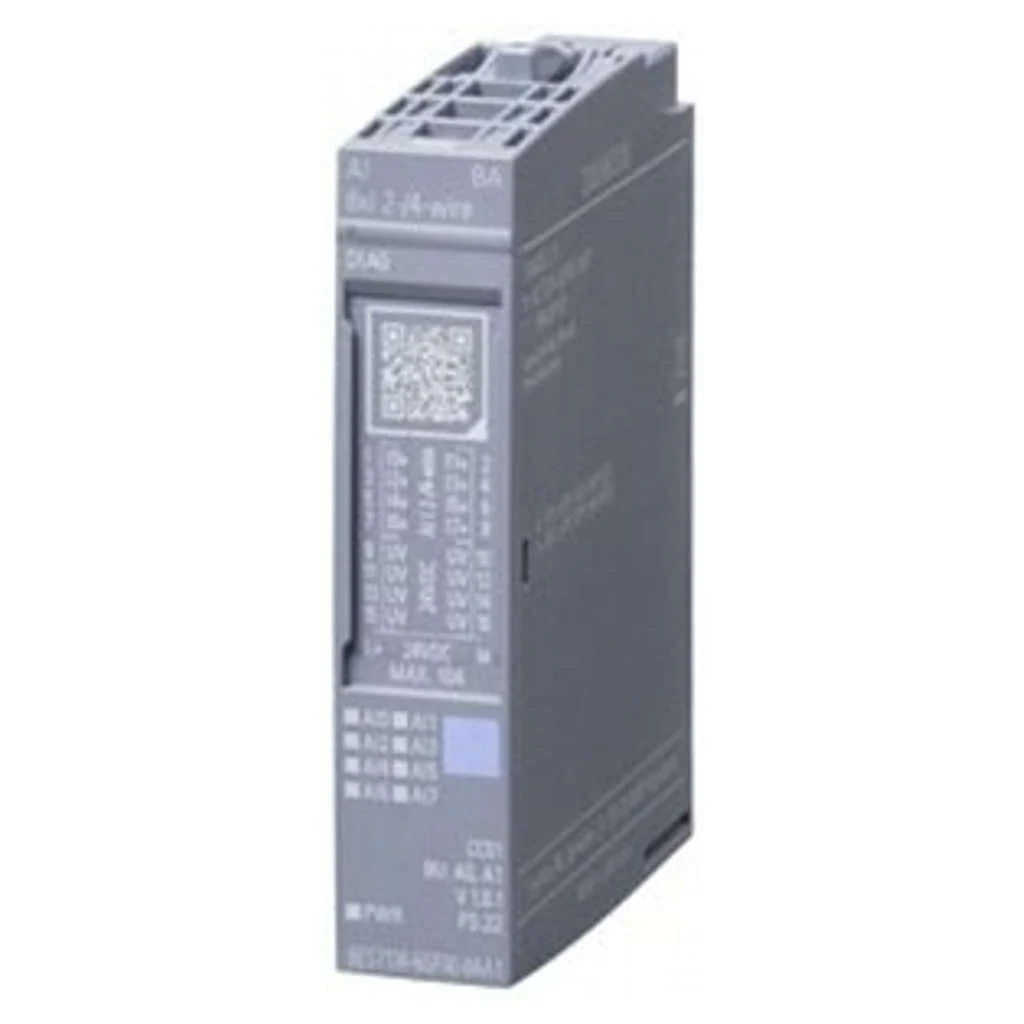

Note: *Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
Siemens |
|
Product Type |
Analog Input Module |
|
Product Code |
6ES71346GF000AA1 |
|
Product Model |
ET 200SP |
|
General Information |
AI 8xI 2-/4-wire BA |
|
Hw Functional Status |
from FS21 |
|
Firmware Version |
V1.0.1 |
|
Fw Update Possible |
Yes |
|
Usable Baseunits |
BU type A0, A1 |
|
Color Code For Module-Specific Color Identification Plate |
CC01 |
|
Product Function |
|
|
I&M Data |
Yes; I&M0 to I&M3 |
|
Isochronous Mode |
No |
|
Measuring Range Scalable |
No |
|
Engineering With |
|
|
Step 7 Tia Portal Configurable/Integrated From Version |
V13 SP1 |
|
Step 7 Configurable/Integrated From Version |
V5.5 SP3 / - |
|
Profibus From GSD Version/ GSD Revision |
One GSD file each, Revision 3 and 5 and higher |
|
Profinet From GSD Version/ GSD Revision |
GSDML V2.3 |
|
Operating Mode |
|
|
Oversampling |
No |
|
Msi |
No |
|
Cir - Configuration In Run |
|
|
Reparameterization Possible In Run |
No |
|
Calibration Possible In Run |
No |
|
Supply Voltage |
|
|
Rated Value (DC) |
24 V |
|
Permissible Range, Lower Limit (DC) |
19.2 V |
|
Permissible Range, Upper Limit (DC) |
28.8 V |
|
Reverse Polarity Protection |
Yes |
|
Input Current |
|
|
Current Consumption, Maximum |
25 mA; without sensor supply |
|
Encoder Supply |
|
|
24 V |
Yes |
|
Short-Circuit Protection |
Yes |
|
Output Current, Maximum |
0.7 A; total current of all encoders/channels |
|
Power Loss |
|
|
Power Loss, Typical |
0.7 W; Without encoder supply voltage |
|
Address Space Per Module |
|
|
Address Space Per Module, Maximum |
16 byte |
|
Hardware Configuration |
|
|
Automatic Encoding |
Yes |
|
Mechanical Coding Element |
Yes |
|
Type Of Mechanical Coding Element |
Type A |
|
Selection Of Baseunit For Connection Variants |
|
|
1-Wire Connection |
BU type A0, A1 |
|
2-Wire Connection |
BU type A0, A1 |
|
4-Wire Connection |
BU type A0, A1 + potential distributor module |
|
Analog Inputs |
|
|
Number Of Analog Inputs |
8; Single-ended |
|
For Current Measurement |
8 |
|
Permissible Input Current For Current Input (Destruction Limit),Max |
50 mA |
|
Cycle Time (all Channels), Minimum |
1 ms; per channel |
|
Isolation |
|
|
Isolation Tested With |
707 V DC (type test) |
|
Dimensions |
|
|
Width |
15 mm |
|
Height |
73 mm |
|
Depth |
58 mm |
|
Weight |
31 g |
