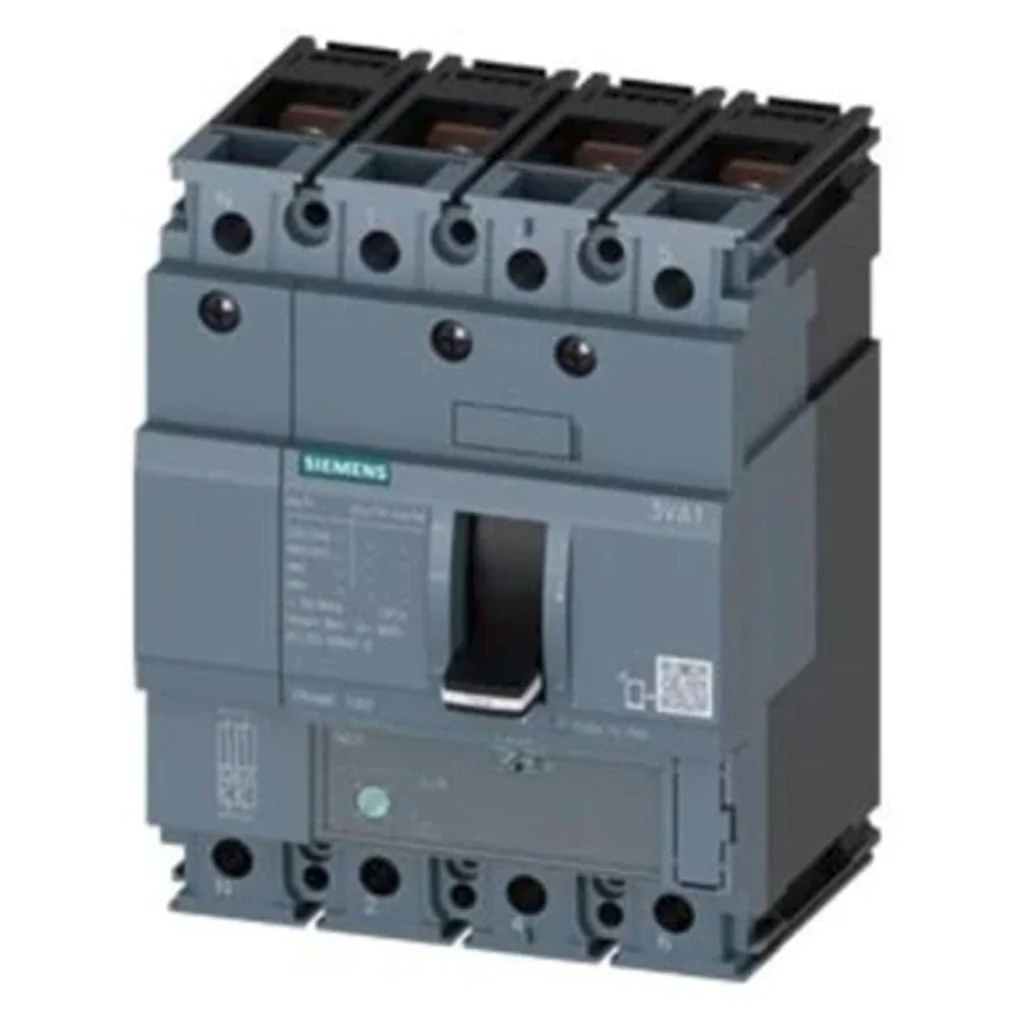

Siemens Sentron 3VA 36kA ATFM MCCB Four Pole 320A-400A
Product Specification
|
Brand |
Siemens |
|
Product Type |
Molded Case Circuit Breaker(MCCB) |
|
Series |
Sentron 3VA |
|
Product Code | Rated Current (A) |
3VA1332-4GE42-0AA0 | 320 3VA1340-4GE42-0AA0 | 400 |
|
Frame Size |
3VA13 |
|
Breaking Capacity |
36kA |
|
Number of Poles |
4 |
|
Rated Voltage |
415V |
|
Frequency |
50Hz |
|
Protection class IP / on the front |
IP40 |
|
Tripping Type |
Adjustable Thermal Fixed Magnetic (ATFM) Trip Unit |
|
Height |
130 mm |
|
Width |
101.6 mm |
|
Depth |
70 mm |
|
Weight |
1.2 Kg |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Original: $580.92
-70%$580.92
$174.28
Description
Product Specification
|
Brand |
Siemens |
|
Product Type |
Molded Case Circuit Breaker(MCCB) |
|
Series |
Sentron 3VA |
|
Product Code | Rated Current (A) |
3VA1332-4GE42-0AA0 | 320 3VA1340-4GE42-0AA0 | 400 |
|
Frame Size |
3VA13 |
|
Breaking Capacity |
36kA |
|
Number of Poles |
4 |
|
Rated Voltage |
415V |
|
Frequency |
50Hz |
|
Protection class IP / on the front |
IP40 |
|
Tripping Type |
Adjustable Thermal Fixed Magnetic (ATFM) Trip Unit |
|
Height |
130 mm |
|
Width |
101.6 mm |
|
Depth |
70 mm |
|
Weight |
1.2 Kg |
|
Warranty |
As Per Manufacturer Terms & Conditions |
