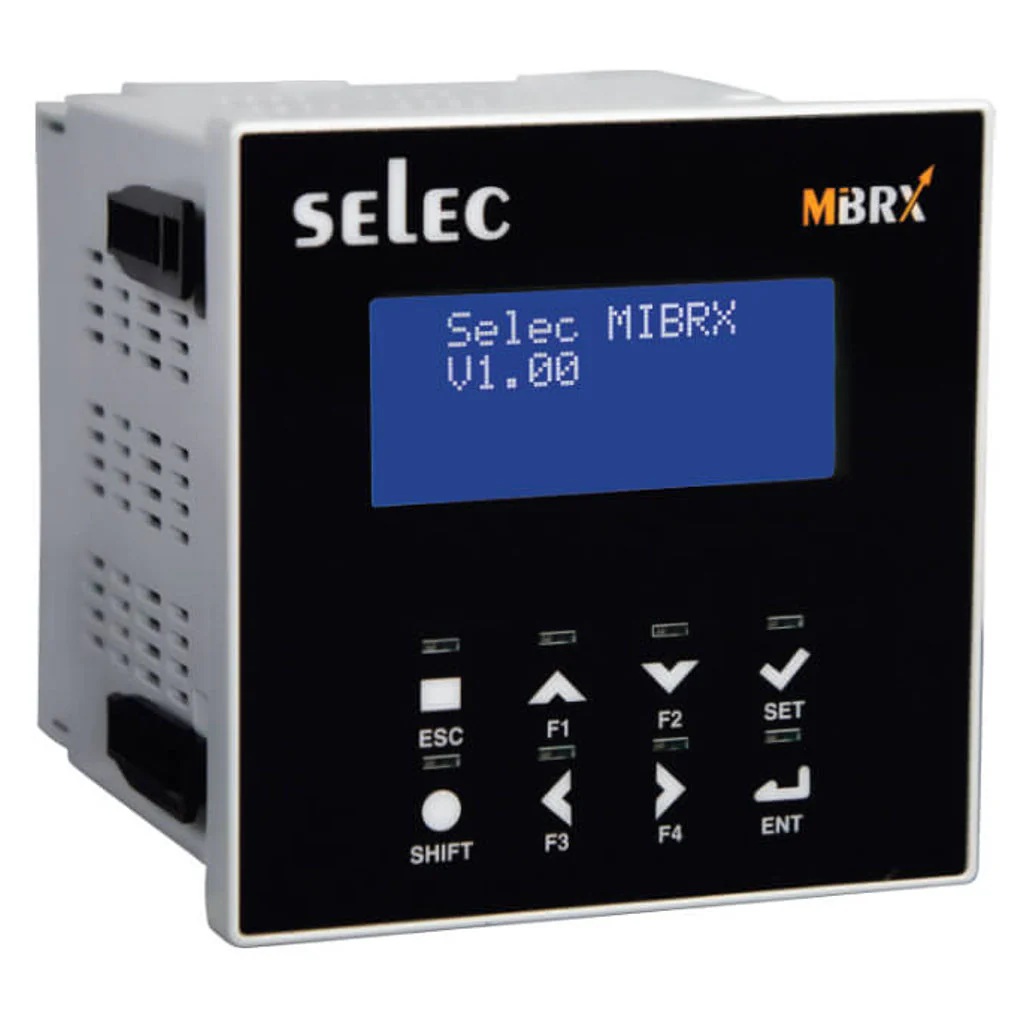

Selec MiBRX 96x96 Sized Modular PLC MiBRX-DSP-96-8-4-16-B
Product Description
-
96x96 Sized, Panel mount modular PLC with pluggable LCD Display options
-
Offers Flexible IO Card selection
-
Expandable via MODBUS RTU
-
RTC with time switch functions
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | MiBRX-DSP-96-8-4-16-B |
| Product Series | MiBRX |
| Description | MiBRX Display 96x96 - LCD (16x4) |
| Display Type | LCD Display |
| Supply Voltage | 230VAC/24VDC |
| Digital Inputs | 3+1/5+1 |
| Analog Inputs | 1 V(0-10V) + As per IO Card Selection / 2 [1-V(0-10V)/1-I(0-20mA)] + As per IO Card Selection |
| Digital Outputs | As per IO Card Selection |
| Analog Outputs | As per IO Card Selection |
| No Of Slots | 6 |
| RTC With Time Switch Function | Yes |
| Code Memory | 240Kb |
| Communication Interface | RS485 Modbus RTU Protocol (Master - Slave ) |
| Expansion | Yes |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | 1( 5kHz) |
| Size (W x H x D) | 96 x 96 x 99.1 mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 3.5 x 9 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
