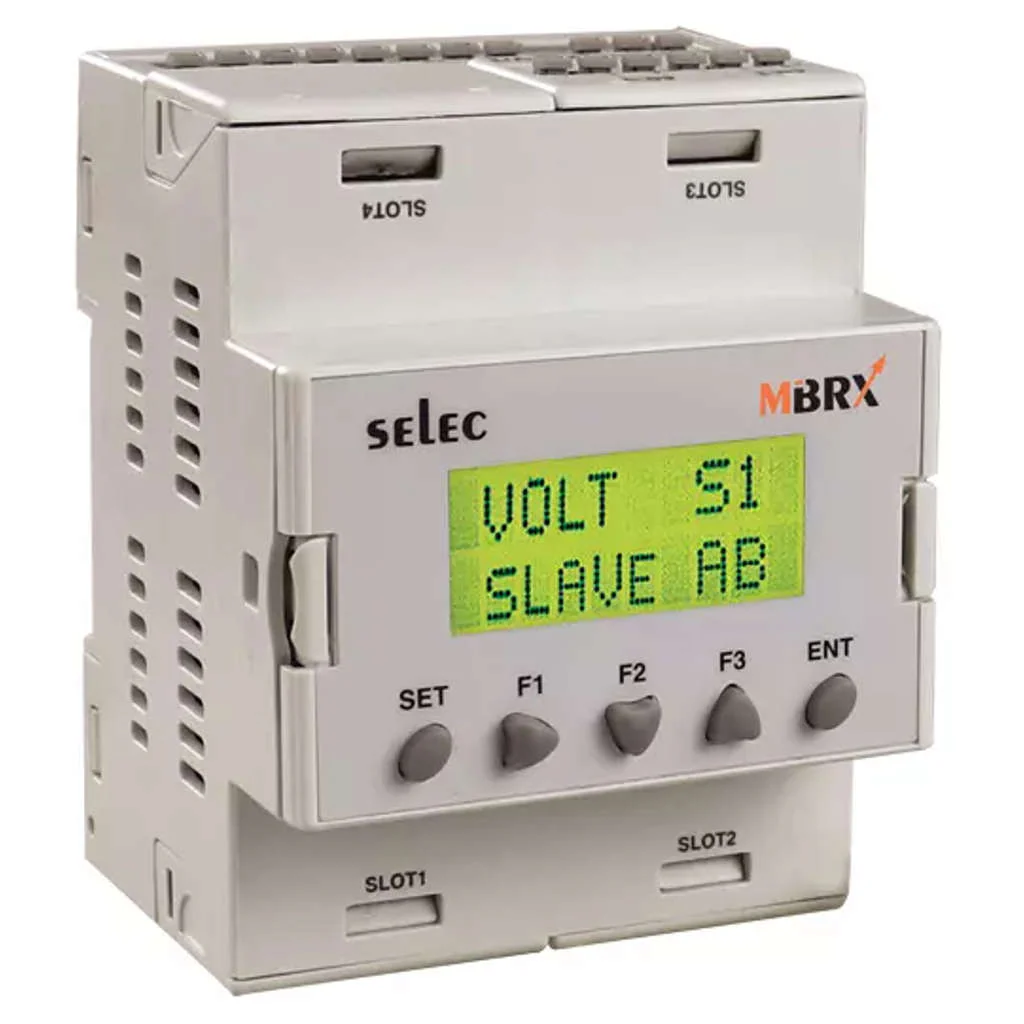

Selec MiBRX 6 M Sized Modular PLC MiBRX-6M-1-1-1-230V
Product Description
-
6M Sized, Rail mount modular PLC with multiple pluggable LED/LCD Display options
-
Offers Flexible IO Card selection
-
Expandable via MOBBUS RTU
-
RTC with time switch functions (Optional)
Product Specification
| Brand | Selec |
| Product Type | PLC |
| Product Model | MiBRX-6M-1-1-1-230V |
| Product Series | MiBRX |
| Description | MiBRX 6M PS - 6 Slots, 10+1 DI, (incl 1FI, 1AI-V) + 4RO, NTC, RTC, Master |
| Display Type | LED Display/LCD Display |
| Supply Voltage | 230VAC/24VDC |
| Digital Inputs | 10+1 / 12 |
| Analog Inputs | 1 V(0-10V) + As per IO Card Selection |
| Digital Outputs | 4 relay + As per IO card selection |
| Analog Outputs | As per IO Card Selection |
| No Of Slots | 6 |
| RTC With Time Switch Function | Yes |
| Code Memory | 240Kb |
| Communication Interface | RS485 Modbus RTU Protocol (Master - Slave ), Ethernet (Slave), USB , CAN |
| Expansion | via modbus RTU RS485 |
| Mounting Type | Din Rail |
| FI / Maximum Counting Frequency | 1( 5kHz) / 2( 5kHz) |
| Size (W x H x D) | 70 x 90 x 66.4 mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 3.5 x 9 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Programmable Logic Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
Original: $86.47
-70%$86.47
$25.94
