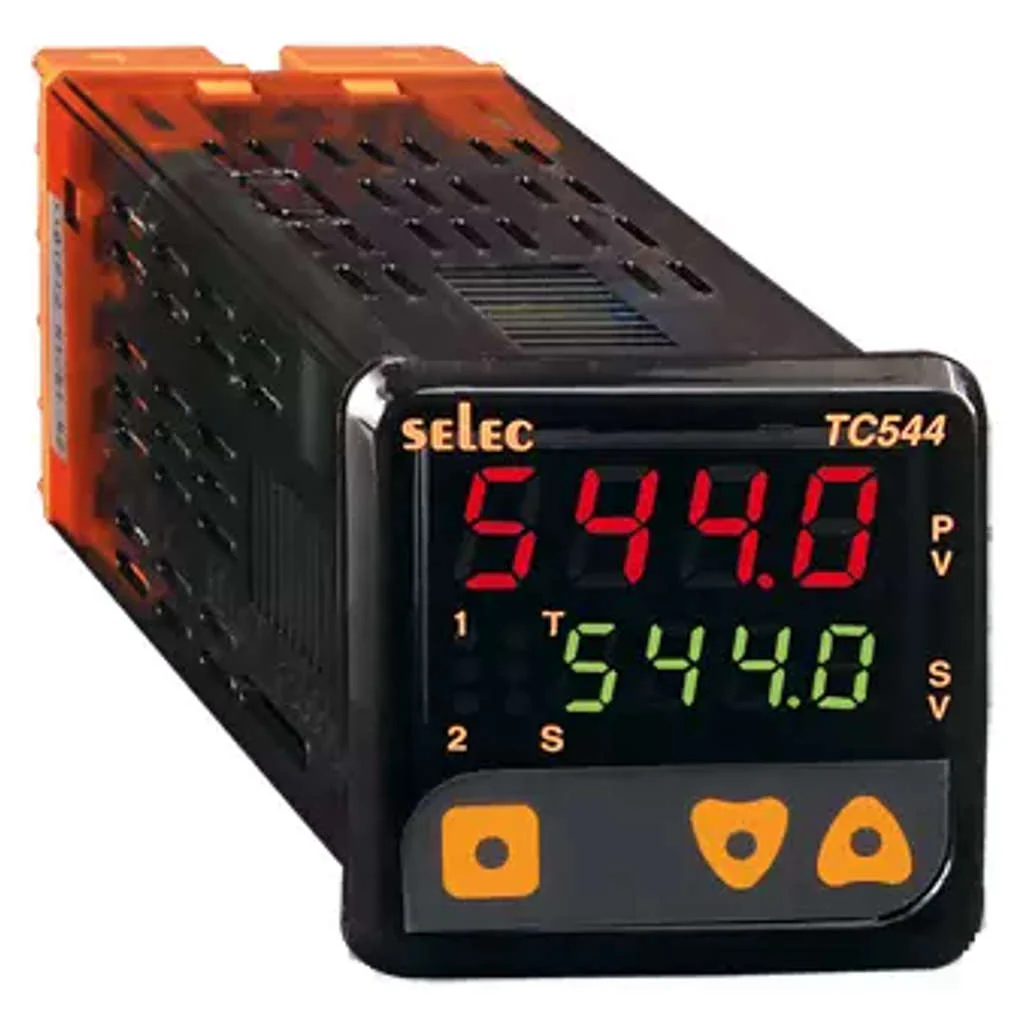

Selec CX Series Temperature Controller TC544C
Product Description
-
4 digit Dual display temperature controller
-
(TC: J, K, T, R, S/ RTD: PT100) sensor input
-
ON-OFF/Auto-tune PID control
-
Dual set point
-
5A Relay/ 12V SSR control output
-
Auxiliary 5A Relay output
-
48mm x 48 mm compact size
-
Short depth
-
Heat-Cool PID and Dwell timer functions
-
Panel mount
-
90 to 270V AC/DC supply voltage
-
CE, RoHS certified
Product Specification
| Brand | Selec |
| Product Type | Temperature Controller |
| Product Model | TC544C |
| Product Series | CX Series |
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4+4 digits |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °For R & S inputs: 0.5% of F.S. ±2(20min of warm up time) For RTD inputs: 0.1% of F.S ±1° |
| Resolution | 0.1/1° for TC/RTD (fixed 1° for R and S TC) |
| Control Output | RELAY or SSR. |
| Auxiliary Output | RELAY |
| Control Mode | Auto Tune / Selftune PID / ON-OFF |
| Feature | Heat Cool PID , Dwell Timer, selectable 2nd Set point |
| Supply Voltage | 90 to 270V AC / DC |
| Mounting Type | Panel Mount |
| Certification | CE |
| Size | 48 x 48mm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 9.6 x 6.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Temperature Controllers |
| Manufacturer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Packer Details | Selec Controls Pvt. Ltd. EL-27/1, Electronic Zone, TTC Industrial Area, MIDC, Mahape Navi Mumbai - 400 710, Maharashtra. Phone : 91-22-41418468 Email: [email protected] |
| Country Of Origin | India |
Original: $22.19
-70%$22.19
$6.66
