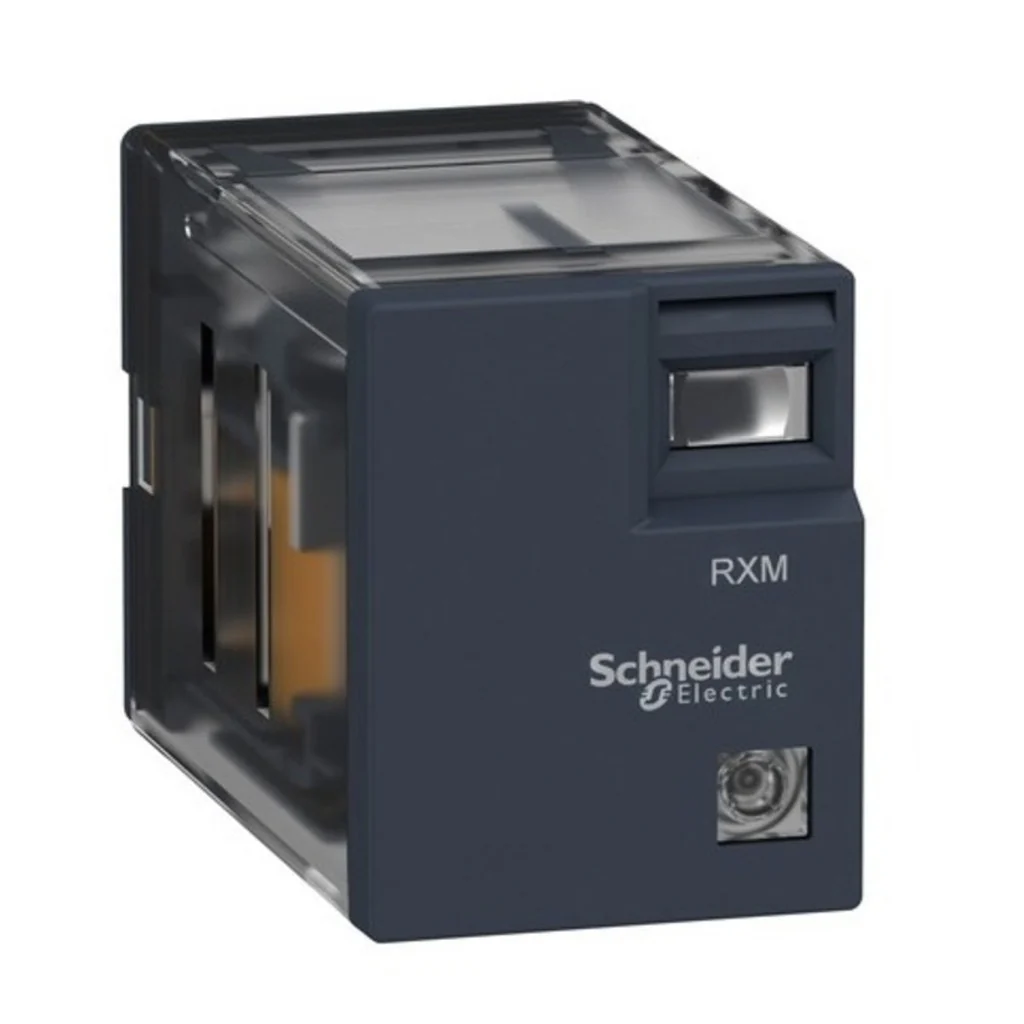

Schneider Zelio RXM Plug In Miniature Relays 5A
Product Specification
|
Brand |
Schneider |
|
Model Name |
Zelio |
|
Product Code | Control Circuit Voltage |
RXM2LB2JD | 12 V DC RXM2LB2BD | 24 V DC RXM2LB2ED | 48 V DC RXM2LB2B7 | 24 V AC RXM2LB2F7 | 120 V AC RXM2LB2P7 | 230 V AC RXM2LB2CD | 36 V DC RXM2LB2FD | 110 V DC |
|
Product Type |
Plug In Relays |
|
Series Name |
Miniature |
|
Device Short Name |
RXM |
|
Description |
Without Lockable Test Button with LED |
|
Current Rating |
5 A |
|
Auxillary Contact |
3 C/O |
|
Coil Interference Suppression |
Without |
|
Utilisation Coefficient |
20 % |
|
Contact Operation |
Standard |
|
Status LED |
With |
|
Control Type |
Without push-button |
|
Minimum Switching Current |
10 mA |
|
Minimum Switching Voltage |
17 V |
|
Minimum Switching Capacity |
170 mW |
|
Mechanical Durability |
10000000 cycles |
|
Operating Position |
Any position |
|
Dimension |
21 mm x 27 mm x 46 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $3.60
-70%$3.60
$1.08
