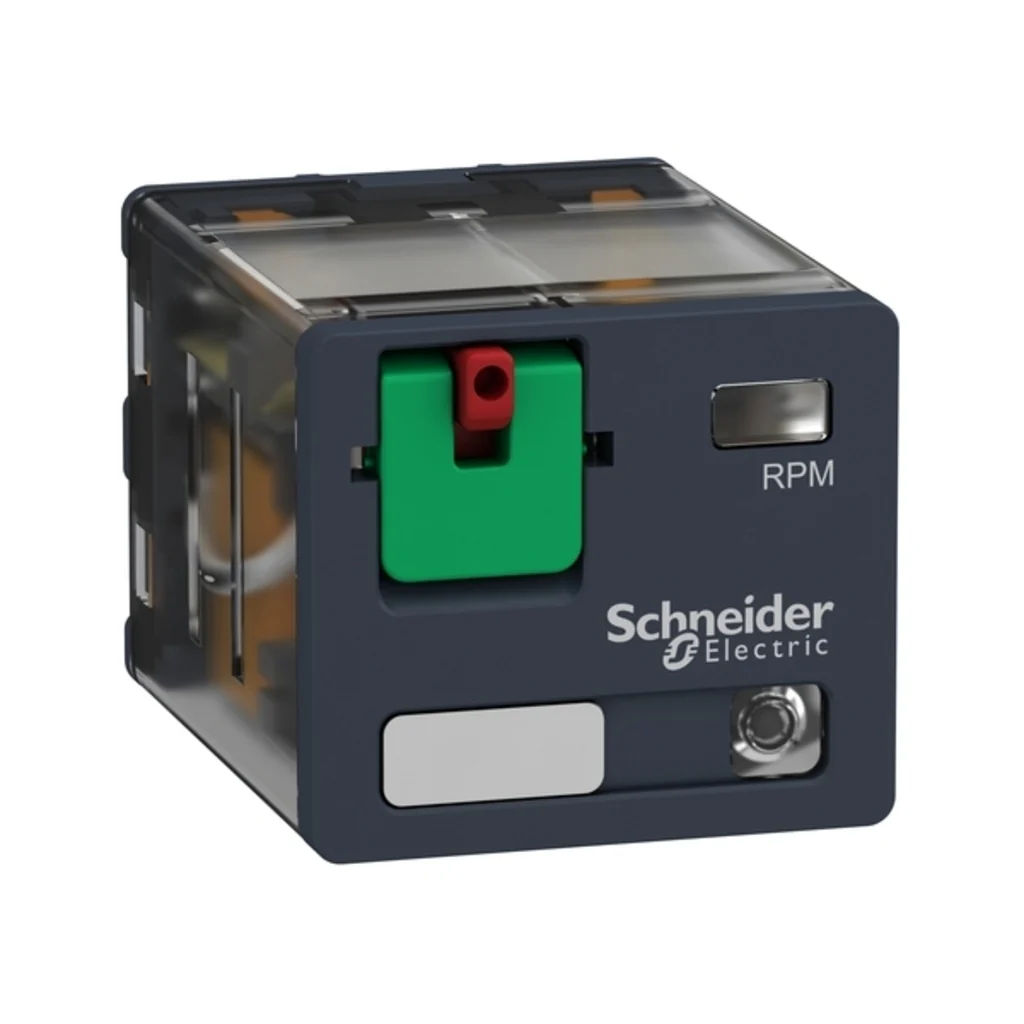

Schneider Zelio RPM Plug In Power Relays 15A 3 C/O
Product Specification
|
Brand |
Schneider |
|
Model Name |
Zelio |
|
Product Code | Control Circuit Voltage |
RPM32JD | 12 V DC RPM32B7 | 24 V AC RPM32BD | 24 V DC RPM32E7 | 48 V AC RPM32ED | 48 V DC RPM32FD | 110 V DC RPM32F7 | 120 V AC RPM32P7 | 230 V AC |
|
Product Type |
Plug In Power Relays |
|
Series Name |
Power |
|
Device Short Name |
RPM |
|
Description |
3 Change Over - 15 AMPS Contact Rating |
|
Current Rating |
15 A |
|
Contacts Type And Composition |
3 C/O |
|
Utilisation Coefficient |
20 % |
|
Status LED |
With |
|
Control Type |
Lockable Test Button |
|
Shape Of Pin |
Flat |
|
Minimum Switching Capacity |
170 mW at 10 mA, 17 V |
|
Mechanical Durability |
10000000 cycles |
|
Maximum Switching Voltage |
250 V Conforming To IEC |
|
Operating Position |
Any Position |
|
Product Weight |
0.054 Kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
Original: $10.57
-70%$10.57
$3.17
