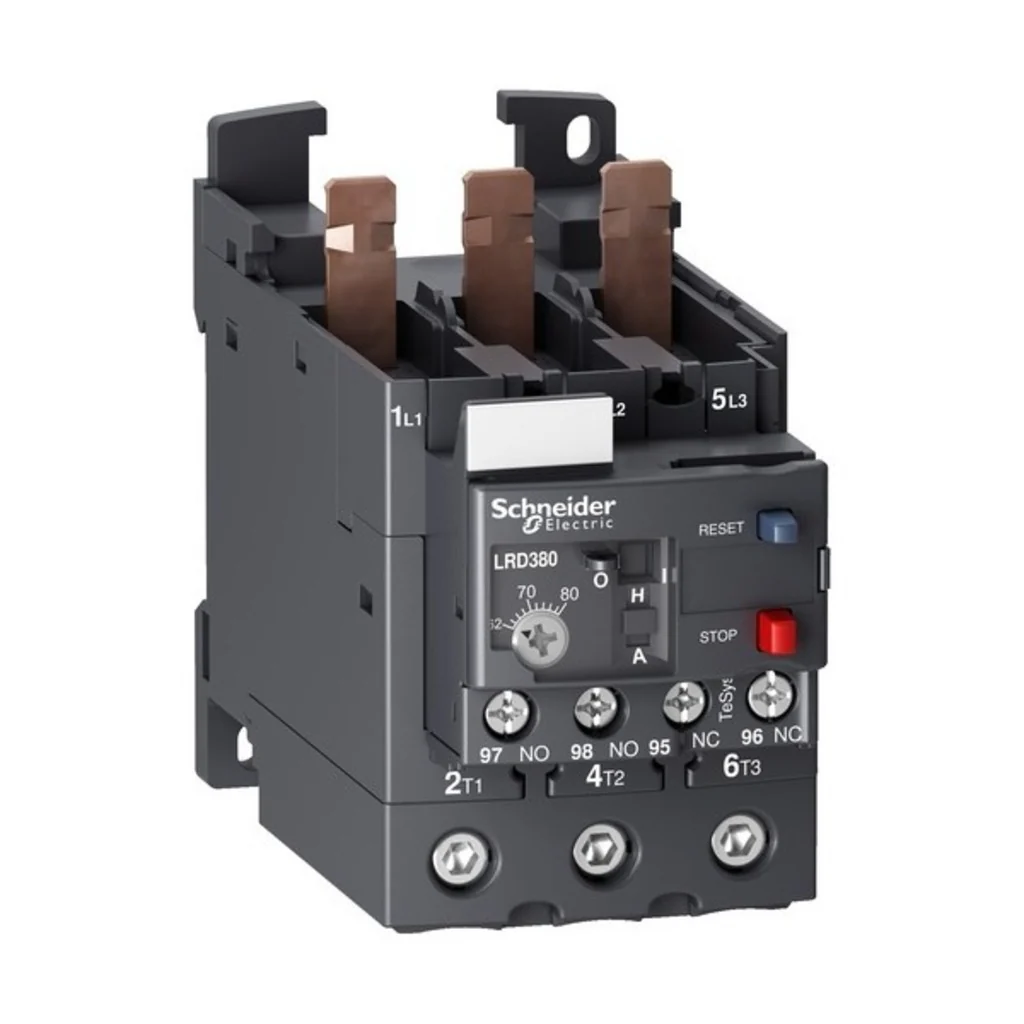

Schneider TeSys LRD Thermal Overload Relays - D ModelTeSys LRD Thermal Overload Relays - D Model LRD380
Schneider TeSys LRD Thermal Overload Relays - D ModelTeSys LRD Thermal Overload Relays - D Model LRD380
Product Description
-
Conformance To IEC, UL, CSA
-
Range : 0.1A To 104 A
-
Higher Operating Temperature
-
Tripping Class 10A & 20A Available
-
Direct Mounting On Contactor Is Possible Upto 95A
-
LRD Model (Direct Mounting)
Product Specification
|
Brand |
Schneider |
|
Model |
TeSys LRD |
|
Product Code |
LRD380 |
|
Product Type |
Thermal Overload Relays – D Model |
|
Color |
Black |
|
For Use With |
LC1D40A...D65A |
|
Thermal Protection Adjustment Range |
48...65 A |
|
Device Short Name |
LRD |
|
Relay Application |
Motor protection |
|
Network Type |
AC DC |
|
Network Frequency |
0...400 Hz |
|
Control Type |
Red Push Button Stop Blue Push Button For Reset Mode |
|
Dimension |
70 mm x 55 mm x 123 mm |
|
Product Weight |
0.375 kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
Original: $95.36
-70%$95.36
$28.61
Description
Product Description
-
Conformance To IEC, UL, CSA
-
Range : 0.1A To 104 A
-
Higher Operating Temperature
-
Tripping Class 10A & 20A Available
-
Direct Mounting On Contactor Is Possible Upto 95A
-
LRD Model (Direct Mounting)
Product Specification
|
Brand |
Schneider |
|
Model |
TeSys LRD |
|
Product Code |
LRD380 |
|
Product Type |
Thermal Overload Relays – D Model |
|
Color |
Black |
|
For Use With |
LC1D40A...D65A |
|
Thermal Protection Adjustment Range |
48...65 A |
|
Device Short Name |
LRD |
|
Relay Application |
Motor protection |
|
Network Type |
AC DC |
|
Network Frequency |
0...400 Hz |
|
Control Type |
Red Push Button Stop Blue Push Button For Reset Mode |
|
Dimension |
70 mm x 55 mm x 123 mm |
|
Product Weight |
0.375 kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
