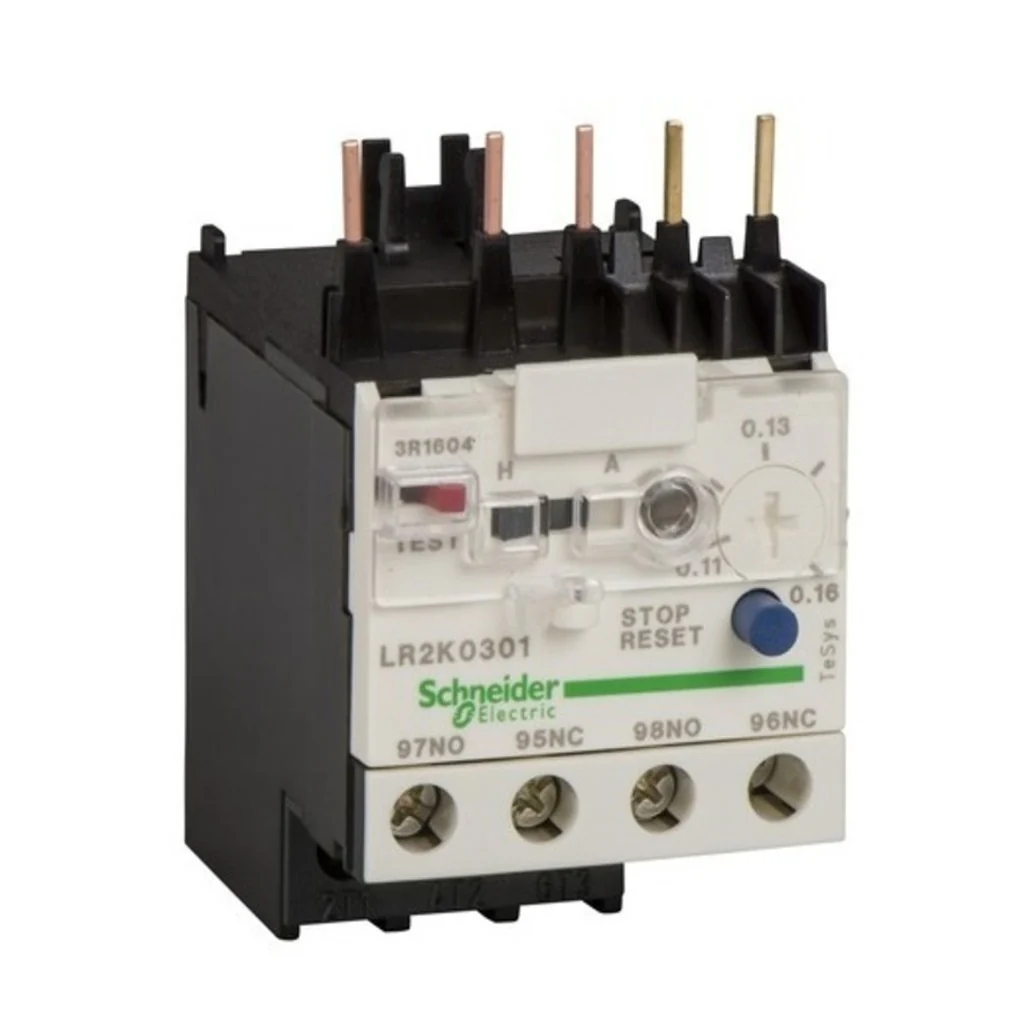

Schneider TeSys K Thermal Overload Relays

Brand

Schneider

Model

TeSys K

Product Code | Thermal Protection Adjustment Range

LR2K0301 | 0.11-0.16 A

LR2K0302 | 0.16-0.23 A

LR2K0303 | 0.23-0.36 A

LR2K0304 | 0.36-0.54 A

LR2K0305 | 0.54-0.8 A

LR2K0306 | 0.8-1.2 A

LR2K0307 | 1.2-1.8 A

LR2K0308 | 1.8-2.6 A

LR2K0310 | 2.6-3.7 A

LR2K0312 | 3.7-5.5 A

LR2K0314 | 5.5-8 A

LR2K0316 | 8-11.5 A

LR2K0321 | 10-14 A

LR2K0322 | 12-16 A

Product Type

Thermal Overload Relays

Device Short Name

LR2K

For Use With

LC1K, LP1K, LP4K, LP2K, LC2K

Relay Application

Motor Protection

Network Type

AC

DC

Network Frequency

<= 400 Hz

Mounting Support

Plate With specific Accessories

Rail With Specific Accessories

Under Contactor

Auxiliary Contact Composition

1 NO + 1 NC

Power Dissipation Per Pole

2 W

Dimension

58 mm x 45 mm x 65 mm

Product Weight

0.145 kg

Warranty

As Per Manufacturer Terms and Condition
