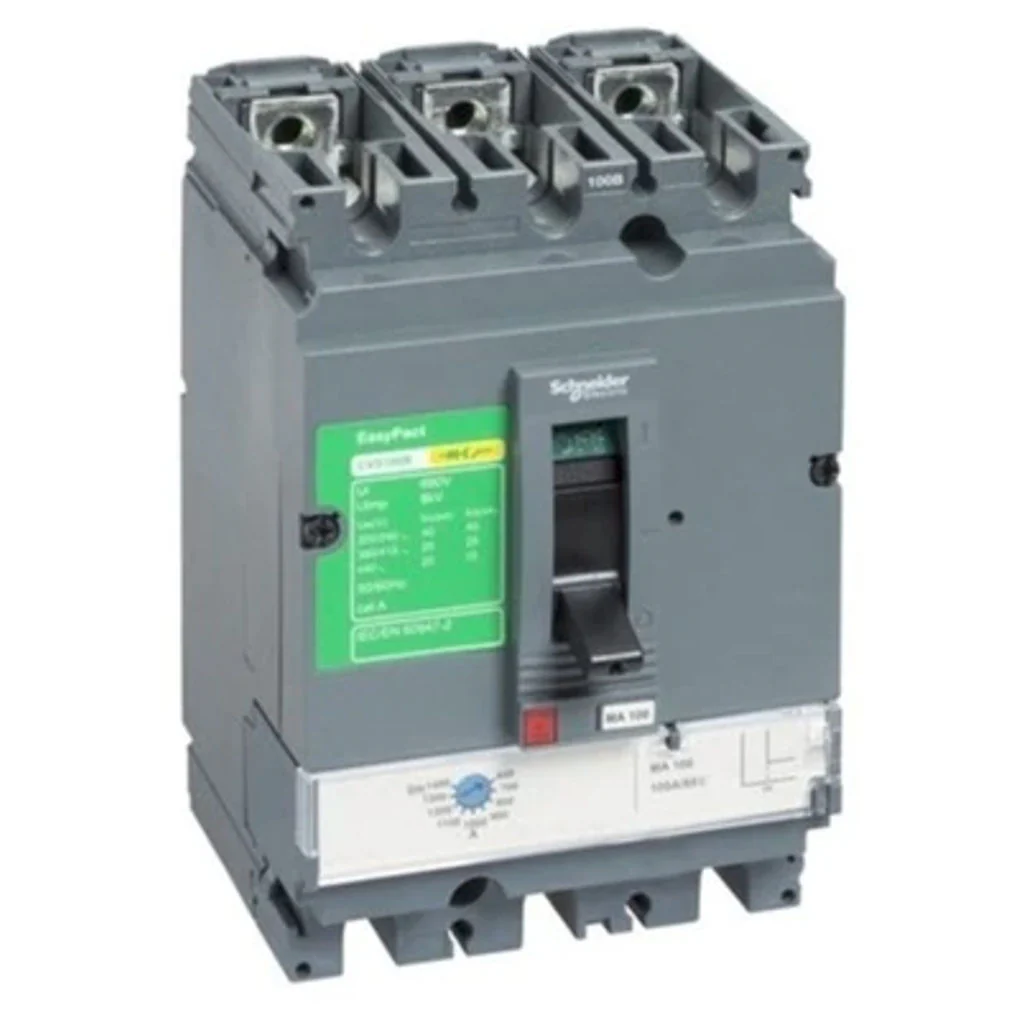

Schneider EasyPact CVS Molded Case Circuit Breakers 3 Pole 36kA
Product Description
-
Moulded Case Circuit Breakers For Distribution Network
-
Ics = 100% Icu As Per IEC 60947-2
-
Easypact CVS 100 to 630A Overload Setting (Ir) 0.7 - 1 x In
Product Specification
|
Brand |
Schneider |
|
Model |
EasyPact CVS |
|
Product Code | Rated Current |
LV510330 | 16 A LV510331 | 25 A LV510332 | 32 A LV510333 | 40 A LV510334 | 50 A LV510335 | 63 A LV510336 | 80 A LV510337 | 100 A LV516332 | 125 A LV516333 | 160 A LV525332 | 200 A LV525333 | 250 A |
|
Product Type |
MCCB |
|
Color |
Black |
|
Breaking Capacity |
36 kA |
|
product or component type |
Circuit breaker |
|
Device Application |
Distribution |
|
No Of Poles |
3 Pole |
|
Protected Poles Description |
3d |
|
Earth Leakage Protection (Vigi Add On) |
Without |
|
Network Type |
AC |
|
Trip Unit Technology |
Thermal-Magnetic |
|
Network Frequency |
50/60 Hz |
|
Control Type |
Toggle |
|
Mounting Mode |
Fixed |
|
Mounting Support |
Backplate |
|
Upside Connection |
Front |
|
Downside Connection |
Front |
|
Connections Terminals |
Screw connection |
|
Dimension |
161 mm x 105 mm x 86 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
