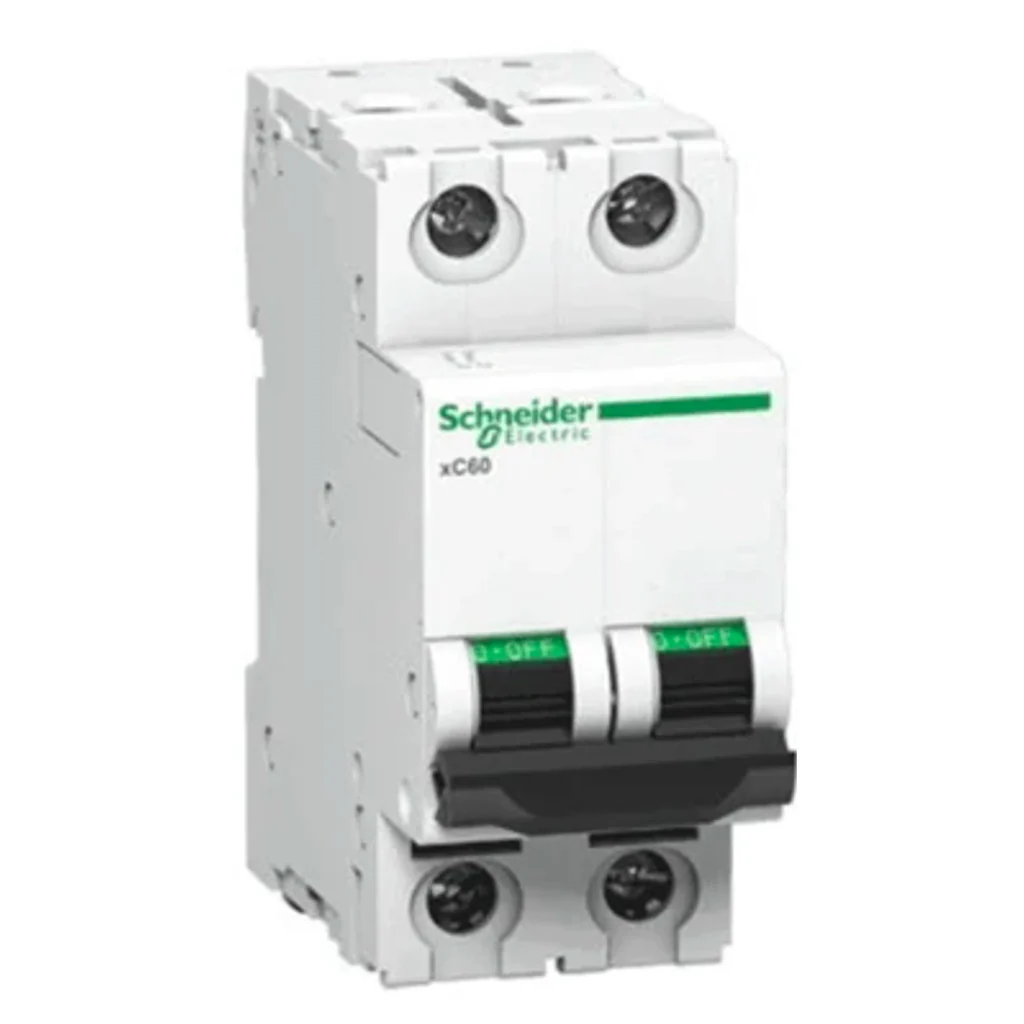

Schneider 25 A Two Pole D-Curve MCB xC60 - A9N2P25D

Product Description

• Breaking Capacity as per IEC 60898 and IS/IEC 60898-1, Icn = 10kA

• Breaking Capacity as per IEC 60947-2, Icn = 15kA, upto 40A

• Can be used for DC application upto 60V per pole

• Higher system performance with optimized cost:Cascading

• Increased System Continuity : Discrimination

• Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism

• Ease, Speed and Flexibility of installation - Biconnect, Line-Load Reversible

• Field-fittable auxiliaries for advance protection and monitoring

• Positive Contact Indication for assurance of disconnection

Product Specifications

Brand	Schneider
Model No	A9N2P25D
Range of product	Acti 9
Sub Type	xC60 Type
Rated Current (A)	25 A
Pole	Two Pole
Curve Type	D-Curve
Network frequency	50/60 Hz
Relative humidity	95 %
Standard	IEC/EN 60947-2
Color	White
Breaking capacity code	A
Module Width (18 mm/module)	2
