RR KABEL 3Core Submersible Flat Cable 100meter 1.5Sq.mm
Product Description
-

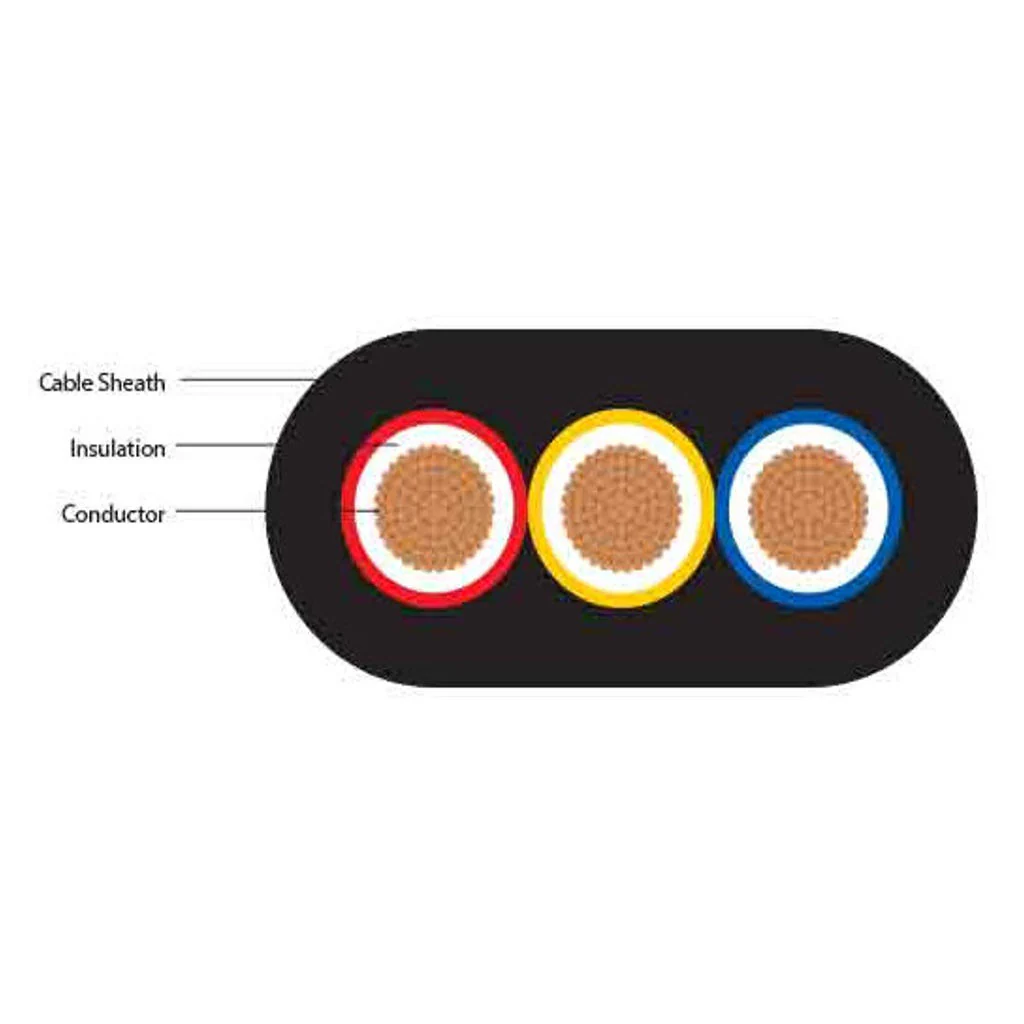

The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications
-
The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water
Product Specification
|
Brand |
RR KABEL |
|
Product Type |
Submersible Flat Cable |
|
Cable Length |
100 meter |
|
Conductor |
Electrolytic grade annealed copper |
|
Core Colour |
Red, yellow (centre core), blue |
|
Sheath Colour |
Black |
|
Voltage Grade |
Upto and including 1100v |
|
Size in Sq.mm |
1.5 Sq.mm |
|
Conductor Resistance at 20 °C (Ω/km) Max. |
12.1 |
|
Nom. Insulation Thickness (mm) |
0.6 |
|
Nominal Sheath Thickness (mm) |
0.9 |
|
Approx. Overall Dimensions (W X H) (mm) +/- 0.5 mm |
12.0 X 5.6 |
|
Current Carrying Capacity (Ampere) |
18 |
