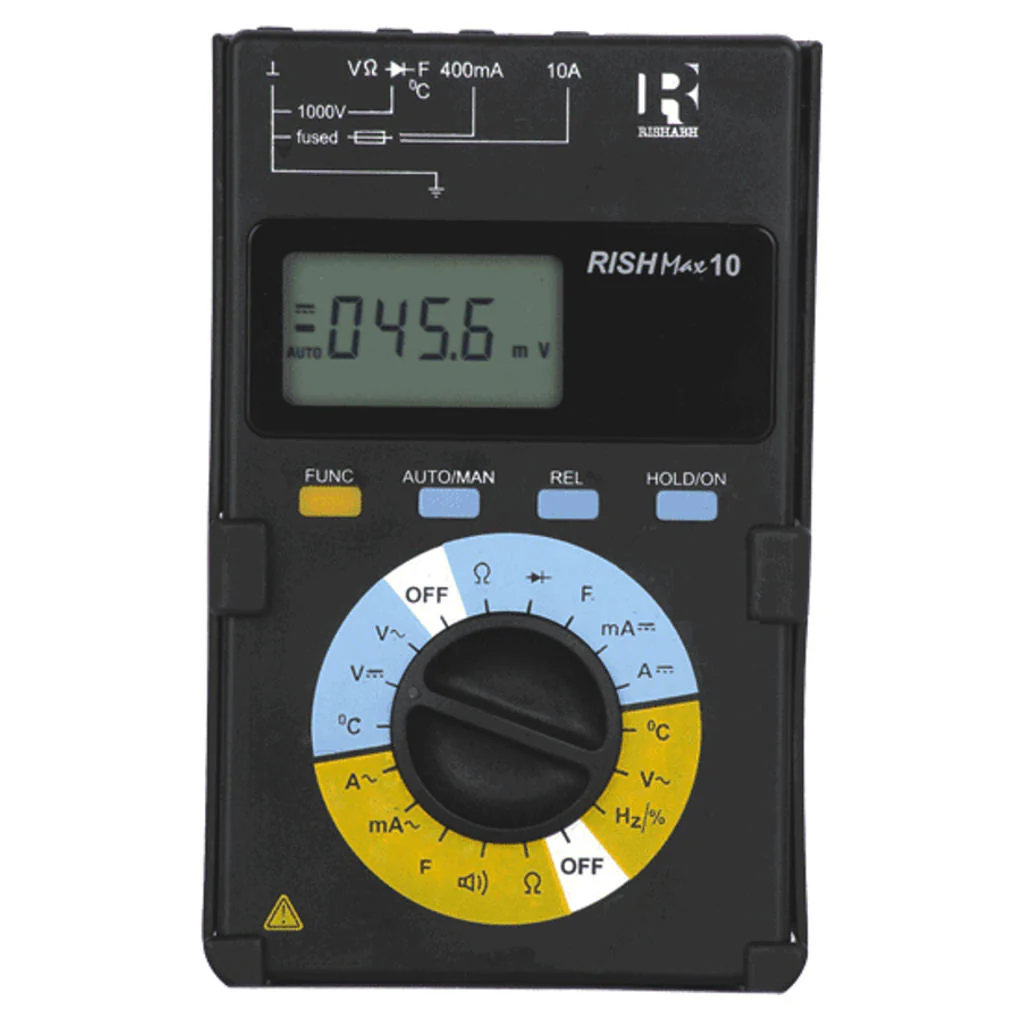

Rishabh Digital Multimeter RISH Max-10

Product Description

• Hold

• By pressing the HOLD/ON key, the currently displayed measurement value can be held and “HOLD” is simultaneously displayed

• Relative Measurement(REL)

• By pressing the REL key, the zero correction is made and Relative Value is measured

• All functions can measure Relative Value except Hz/Duty, Diode, Continuity and °C functions

• Automatic/Manual Measuring Range Selection

• The measurement functions are chosen with the rotary selector switch

• The measuring range is automatically adjusted to the measurement value

• The measuring range can also be manually selected with the AUTO/MAN button

• Note: For Temperature (°C), Frequency (Hz), Duty cycle (%) and Capacitance (F) measuring range is AUTO. No Manual range selection is possible

• Temperature Measurement

• Rish Max - 10 allows you to measure temperature with “K” type Thermocouple (NiCr - Ni) sensor in the range from 0 °C to +1300 °C

• Diode And Continuity Testing

• This provides for the testing of the polarity of diodes, as well as inspection for short-circuits and circuit interruptions

• In addition to the display, resistances of less than 100 Ohm(approx.) are indicated with an acoustic signal

• Overload Warning

• An acoustic signal occurs when measuring AC voltage>750V, DC Voltage>1000V, AC/DC mA current>400.0mA, AC/DC current>10.00A

• Energy Saving Circuit

• The instrument is switched off automatically, if none of the operating elements have been activated for about 15 minutes

• Protective Cover For Rough Operating Conditions

• A protective cover of ABS with a built-in stand protects the instrument against jolts and falls

• It also secures the test probe for one-hand operation, and allows for winding of the measurement cable which provides protection during transport

• Theft Protection

• Company name and name of the user can be entered into the field next to the display with an indelible etching needle for identification of the owner

• Direct and alternating voltages from 100µV ... 1000V

• Direct and alternating currents from 10µA ... 10.00AResistances from 100mOhm... 40.00MOhm with zero correction

• Capacitance from 1pF... 200.00µF with zero correction

• Frequencies from 10.00Hz ... 500.0kHz

• Diode measurement and continuity testing

• Hold measurement

• Relative measurement

• Duty cycle (%) measurement

• Temperature measurement with K type Thermocouple

Product Specification

Brand	Rishabh
Product Type	Digital Multimeter
Product Model	RISH Max-10
Power Supply
Battery	2 numbers of 1.5V mignon cell Zinc- carbon cell as per IEC R6 Alkaline manganese dry cell as per IEC LR 6
Service Life	Zinc-carbon cell: approx. 300 hours Alkaline manganese dry cell: appox. 600 hrs
Battery Test	Automatic display of „ ” symbol when battery voltage falls below following value:approx.2.4V
Display	LCD display field (50 mm x 30 mm) with digital display, and with display of measurement unit, type of current and various special functions
Digital
Display	7 segment
Character Height	10 mm
Number Of Digits	3 3/4 digit ? 3999 steps
Overflow Display	OL
Polarity Display	„–” sign is displayed when plus pole at „ ”
Measurement Rate	3 measurement/s for V, I, ? , Capacitance, Frequency and Duty cycle measurements
Reference Conditions
Ambient Temperature	0 + 23 C + 2 K
Relative Humidity	45 % ... 55 %
Frequency Of Mean Quantity	Sine 50 Hz
Operating Voltage	3V + 0.1V
Ambient Conditions
Operating Temperature Range	0 0 -10 C ... + 50 C 0 0
Storage Temperature Range	- 25 C ... + 70 C (without batteries)
Relative Humidity Elevation	45 ... 75 % up to 2000 m
Fuse
Fuse For Ranges Up To 400 Ma	1.6 A / 1000V; 6.3 mm x 32 mm
Fuse For 10 A Range	16 A / 600V; 6.3 mm x 32 mm
Warranty	As Per Manufacturer Terms And Conditions
