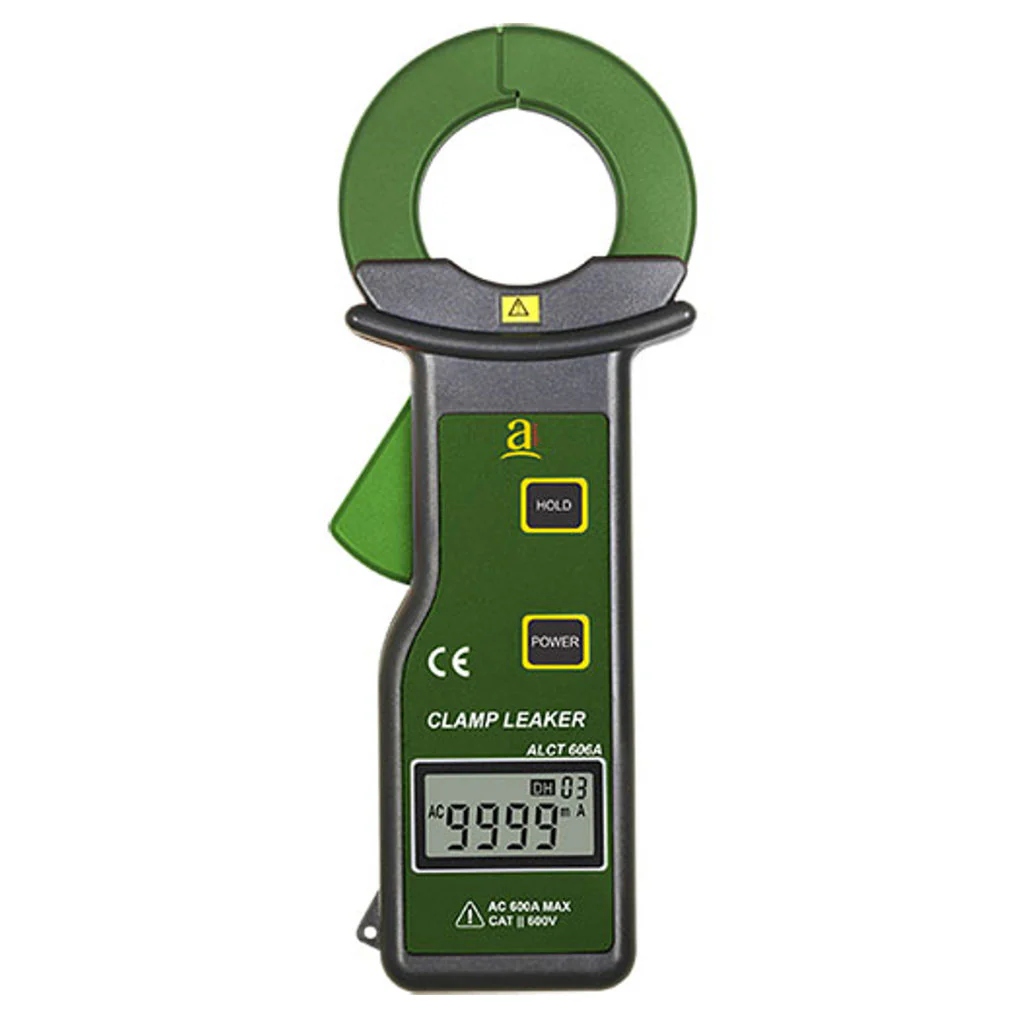

Rishabh AC Leakage Clamp Meter 0.1mA to 600A ALCT 606A
Product Description
-
Compact size leakage clamp meter
-
Current measurement from 0.1mA to 600A
-
Large jaw opening
-
Data storage facility upto 99 records
-
Complies with CE, CAT protection
-
Software facility for reports
Product Specification
|
Brand |
Rishabh |
||
|
Product Type |
Leakage Clamp Meter |
||
|
Product Model |
ALCT 606A |
||
|
Display Mode |
4 Digits LCD Display |
||
|
Clamp Size |
35mm×40mm |
||
|
Auto Range |
√ |
||
|
Rs-232 |
√ |
||
|
Data Storage |
99 |
||
|
Peak Value |
√ |
||
|
Date Hold |
√ |
||
|
Overload Protection |
OL |
||
|
Auto Power Off |
5 Minutes |
||
|
Low Battery Indication |
≤5.2V |
||
|
Test Model |
Clamp CT, integral mode |
||
|
Environmental Specs |
Operating Temperature: -10 to 40 °C Storage Temperature: -20 to 60° C Relative humidity: 80% @ -10 °C to 40 °C Below 70% @ -20 °C to 60°C |
||
|
Applicable Safety Standards |
Pollution grade 2, IEC 61010-1, IEC 61010-2- 032, CAT II 600V |
||
|
Leakage Current (a) |
Range |
Accuracy |
|
|
Range |
0〜60.00A |
±(1.5%+5) |
|
|
60.00A〜199.9A |
±(2%+5) |
||
|
200.0A〜300.0A |
±(3%+5) |
||
|
300.0A〜600.0A |
±(4%+5) |
||
|
Voltage (frequency) |
0V〜600V (50Hz/60Hz) |
√ |
|
|
Resolution |
0.1mA |
||
|
General Characteristics |
|||
|
Power |
9V Batteries (6F22) |
||
|
Lcd Size |
32mm X 15mm |
||
|
Product Size |
175mm X 70mm X 38mm |
||
|
Standard Accessories |
Battery, RS232 Interface Cable, Software CD, Carrying Bag |
||
|
Product Net Weight |
120g |
||
|
Warranty |
As Per Manufacturer Terms And Conditions |
||
Original: $201.29
-70%$201.29
$60.39
