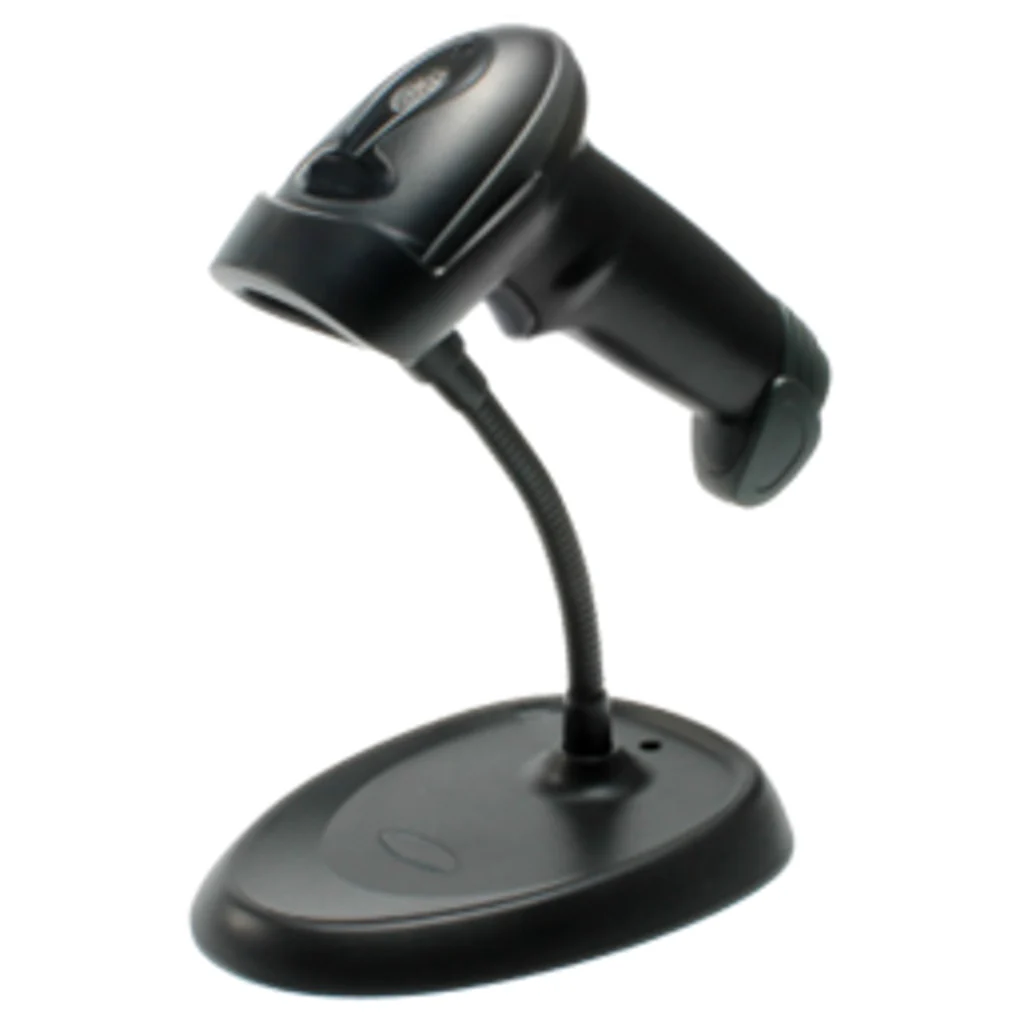

Posiflex Rugtek Wired Image Barcode Scanner 2D CD-3200U

Posiflex Rugtek Wired Image Barcode Scanner 2D CD-3200U

Product Description

  • Posiflex launches a million pixels fast "2D QR Bar Code" Scanner in the Rugtek series

  • Scans Barcode on mobile & curved surface

  • BT/WiFi variant can be set up inventory made to scan 2500 EAN codes offline

  • Posiflex POS compatible BT scanner

  • Wire-free operation POS billing or logistics operation

  • Affordable 2D QR Barcode scanner's wired & wireless

  • Easy Plug & Play use with mobile/tablets etc (Android & ios)

Product Specification

Brand

Posiflex Rugtek

Product Type

Barcode Scanner

Product Model

CD-3200U

Image(Pixels)

640 pixels(H)*480 pixels(V)

Light Source

Aiming

617 nm LED

Illumination

6500K LED

Barcode Decode

2D

QR Code, Data Matrix, PDF417, Aztec,
Maxicode, Hanshin Code, etc.

1D

UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 &
EAN-13, JAN-8 & JAN-13, ISBN /ISSN, Code 39(with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF),
Addendum 2 of 5, IATA Code, Code 32 (Italian
Pharmacode), RSS 14, RSS Limited, RSS Expanded

Depth Of Field

40-200mm @ UPC/EAN 13mil
PCS=90%; 20-250mm @ QR 20mil PCS=100%

Scan Angle

Elevation angle 65°, corner 30 °, declination 55°

Field Of View

34° horizontal and 28° vertical

Read Resolution

≥ 5mil

Print Contrast

≥ 25%

Visual Indicator

Red and blue bi-color LED lights, buzzer

Communication Interfaces/Distance

TTL-232, USB (HID-KBW or Virtual Serial Port)

Power

5VDC, 170mAh

IP Level & Light Level

IP54, 3mtrs drop durability / On 100,000 LUX

Environmental Parameters

Operating Temperature

20°C~+60°C

Storage Temperature

5%~95% non-condensing

Dimension(LxWxH)

173x67x94 mm

Weight(With Cable)

220 g

Warranty

2 Years
