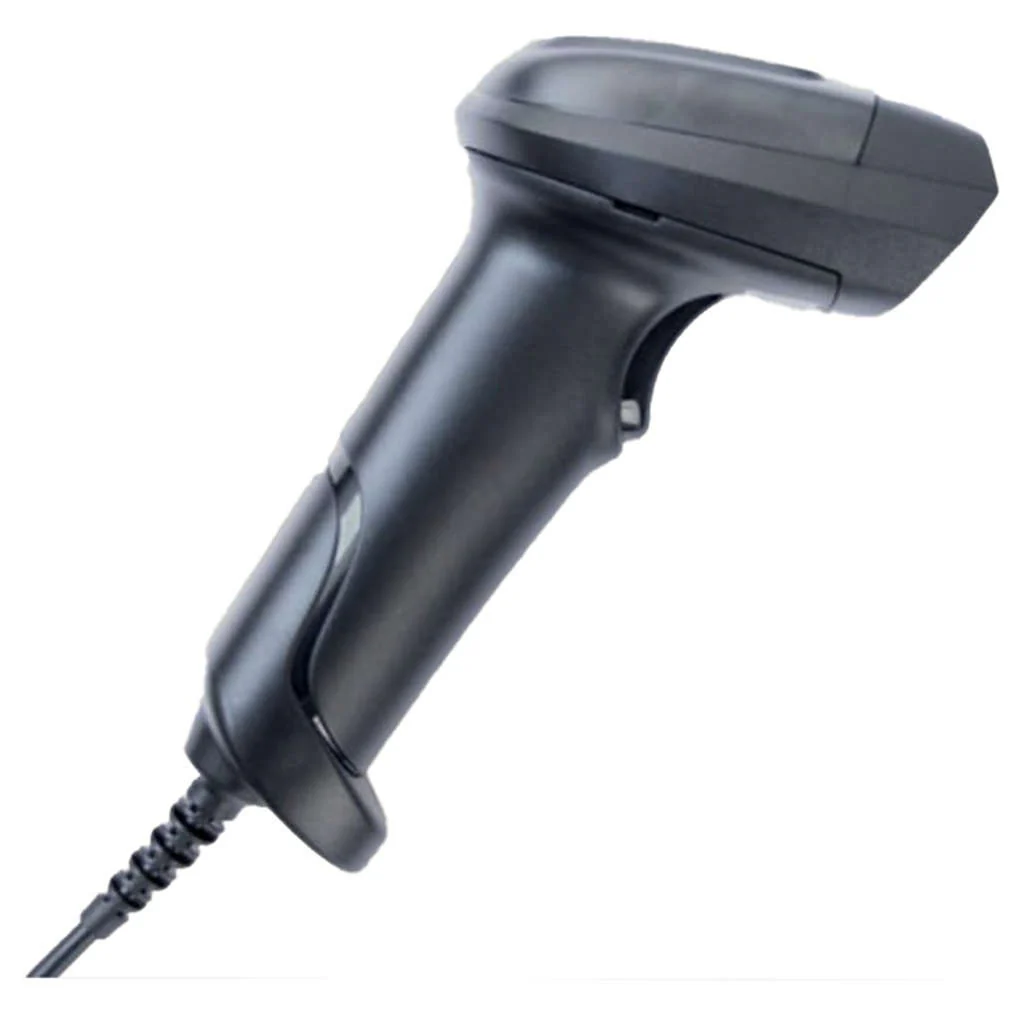

Posiflex Rugtek 2D Wired Barcode Scanner LS-3002
Product Description
-
Features
-
LED indicator and buzzer sound
-
Excellent decoding, scan various complex codes
-
Ergonomic design for more comfortable operation
-
Support paper barcode, & QR Code on mobile screen
-
High temperature resistant cable material for longer life
-
Modular design, easy to assemble, strong drop resistance
Product Specification
| Brand | Posiflex Rugtek |
| Product Type | Barcode Scanner |
| Product Model | LS-3002 |
| OS | Windows /iOS / Android / Google Chrome |
| Image Sensor | CMOS |
| Image(Pixels) | 640 (H)*480 (v)pixels |
| Light Source | Aiming: 625 nm RED LED / White Illumination 4000K White LED |
| Scan Mode | Handhand (Manual) / Handfree (Automatic ) |
| Scan Rate | 300 scans/second |
| Scan Accuracy | ≥4mil@ Code39 |
| Print Contrast | ≥20% |
| Visual Indicator | Red and Blue LED Light ,Buzzer |
| Interfaces | USB keyboard,USB virtual serial port,RS-232 |
| Scan Angle | Left and right:± 55 °, Front and rear:± 55 °, Rotate:360 ° |
| Field Of View | 32° horizontal, 24° vertical |
| Transmission Mode | Wired Transmission |
| Cable | Standard 1.8M straight |
| Power Parameter | Input Voltage:5VDC±5% Working corrent:150mA |
| Scan Distance | 20-200mm @ EAN 13mil PCS=100%:5-170mm @ QR 20mil PCS=100% |
| Environmental Parameters |
|
| Operating Temperature | -20°C~+ 60°C |
| Working Humidity | 5% to 95% relative humidity, non-condensing |
| Storage Temperature | -40°C~+70°C |
| Electrostatic Protection | ±8 kV(Direct discharge) |
| Ambient Brightness | 0~100,000Lux |
| Drop Resistance | IP54 and2M |
| Safety Regulations | CE (EN 55032:2015; EN 55035:2017), ROHS, EN62368-1:2014+A11:2017, FCC PART 15 CLASS B |
| Decoding Capability | |
| 2D | QR, PDF417, DataMatrix(ECC200, Aztec, HanXinCode, Maxicode, Micro QR, Micro PDF417 |
| Dimension (L x W x H) | 179 x 68 x 94 mm |
| Weight | 203 g With Cable |
| Warranty | 3 Years |
Other Details
| Dimension (CM) - L x B x H | 17.9 x 6.8 x 9.4 |
| Unit of Measurement | 1 Piece |
| Weight | 0.203 kg |
| Generic Type | Barcode Scanner |
| Manufacturer Details | AEGIS INFOWARE PVT.LTD, 607A, B-Block, Mondeal Square, Opp Honest Restaurant Corporate Road, S.G> Highway, Prahladnagar. , Ahmedabad, Gujarat-380015, India , Phone: +91-8448233444 |
| Packer Details | AEGIS INFOWARE PVT.LTD, 607A, B-Block, Mondeal Square, Opp Honest Restaurant Corporate Road, S.G> Highway, Prahladnagar. , Ahmedabad, Gujarat-380015, India , Phone: +91-8448233444 |
| Country of Origin | India |
