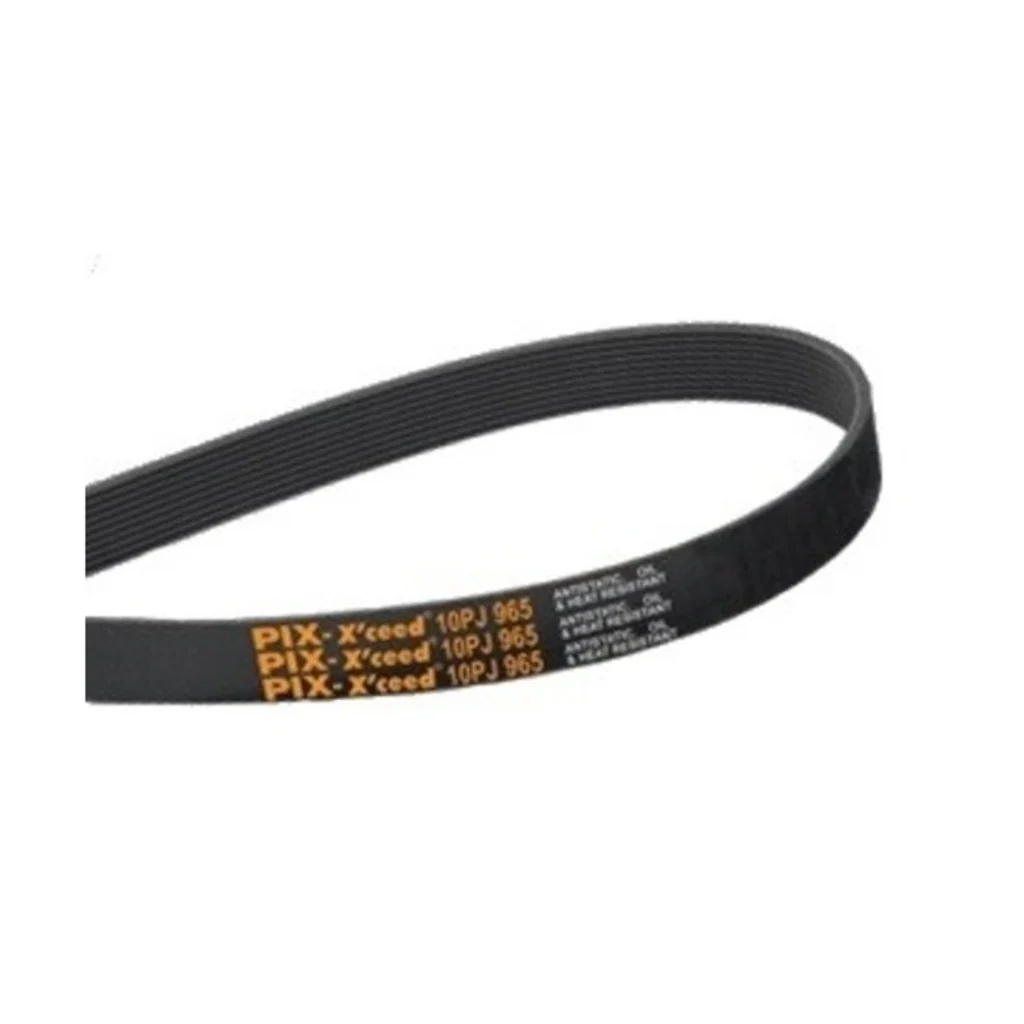

PIX Ribbed Belt PK Section 4.5 x 3.56 mm

Product Description

• Ribbed Belts Are An Ideal Solution For Compact Drives In Household Appliances And Heavy Machinery

• Ribbed Belts Enable Economic Solutions Even Under Difficult Drive Conditions, Such As Large Transmission Ratios, High Belt Speeds, Small Pulley Diameters And Back Idler Pulleys

• Ribbed Belts Consist Of Multiple V-Grooves

• The Design Allows Operation On Small Pulley Diameters

• Ribbed Belts Offer High Belt Speed

• Ribbed Belts Are Designed For High Power Transmission Ratios And Offer High Power Output

• High Power Transmission Capacity

• Suitable For Small Pulley Diameters

• Maximum Belt Linear Speed Up To 60 M/Sec

• Highly Flexible, Noise Free & Smooth Running

• Can Be Used For Speed Ratios Up To 1:30

• Anti-Static Oil & Heat Resistant

• Temperature Range: -25°C To +100°C

• Application

• Crude Oil Pumps, Spreaders, Seeding Machines, Vegetable Crushers, Household Appliances, Washing Machines, Dryers, Machine Tools, Grinders, Etc

Product Specification

Brand	PIX
Product Type	Ribbed Belt
Size	PK 280, PK 815, PK 950, PK 1100, PK 1420, PK 1422, PK 1460, PK 1480, PK 1520, PK 5100
Section	PK Section
Thickness 't' (mm)	4.5
Rib Pitch 'p' (mm)	3.56
No. of possible Ribs	2 to 150
Min Pulley Dia. (mm)	45
Mfg. Range	280 mm To 5100 mm
