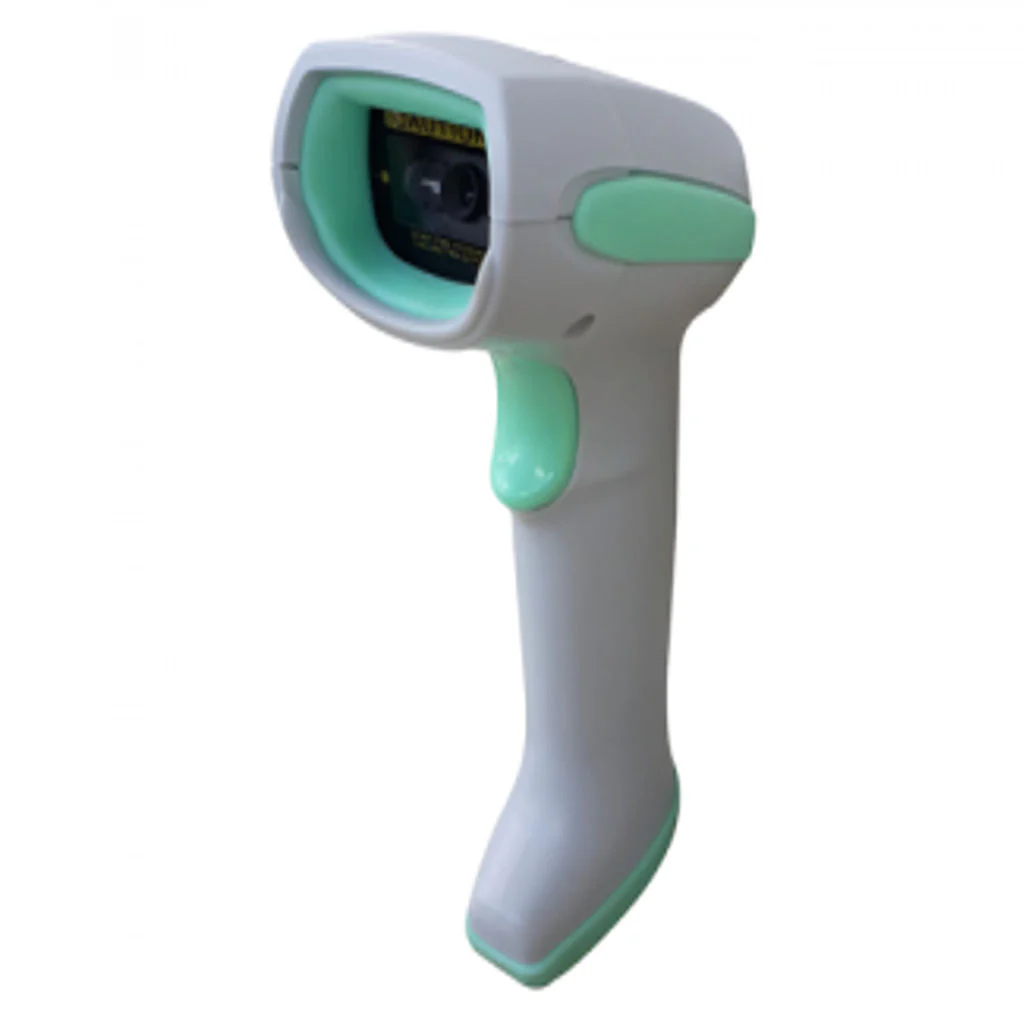

Pegasus Healthcare Wireless Barcode Scanner 2D PS3216H
Product Description
-
Patient bag
-
Patient wristbands
-
Specimen tracking
-
Patient administration
-
Positive patient identification
-
Blood product administration
-
Electronic healthcare record access
-
Medication administration, authentication
-
Medication tracking in pharmacy and on pharmacy cart
-
Medication dispensary: at patient bedside, in pharmacy, on discharge
-
Anti-freeze wire material, can be used at temperatures below minus 30 degrees
Product Specification
|
Brand |
Pegasus |
|
Product Type |
Barcode Scanner |
|
Product Model |
PS3216H |
|
Performance Parameters |
|
|
Light Source |
617nm LED Aimer, White LED |
|
Decoded Capability |
1D: EAN,UPC, Code 39,Code 93,Code 128,UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF -6,ITF-14, ISBN, ISSN, MSI- Plessey,GS1 Databar,GS1 Composite Code, Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5. 2D: , QR Code, Data Matrix ,PDF417, Aztec, Hanxin code. |
|
Scanning Principle |
Image CMOS |
|
Scanning Method |
Manually / Automatically / Successive Scanning (Optional) |
|
Scan Type |
Image CMOS |
|
Resolution |
640x480 |
|
Scanning Speed |
>25 inch / 63cm per second |
|
Scanning Angle |
Yaw 55°, Rotation 360°, Pitch 55° |
|
Scanning Precision |
SR: Code 39 4.8mil, UPC60% 5mil, PDF417 5mil, Data matrix 7.5mil |
|
Depth of Scanning Field |
0-390mm |
|
Error Rate |
<1/5million |
|
Interface |
USB-HID, USB-COM, RS232 |
|
Physical Parameters |
|
|
Dimension |
102x71x177mm |
|
Weight |
167GM |
|
Connecting Cable Length |
2M |
|
Housing Materials |
ABS+PC |
|
Environmental Parameters |
|
|
Operating Temperature |
-20°C~40°C |
|
Storage Temperature |
-40°C~70°C |
|
Operating Humidity |
5~95% relative humidity, non -condensing |
|
Ambience Lighting |
1~100000Lux |
|
IP Level |
IP54 |
|
Drop Resistance |
withstands multiple 3m drops onto concrete |
|
Electrical Parameters |
|
|
Input Voltage |
DC5V±5% |
|
Operating Current |
170MA |
|
Stand by Current |
USB 25MA; RS232 2uA |
