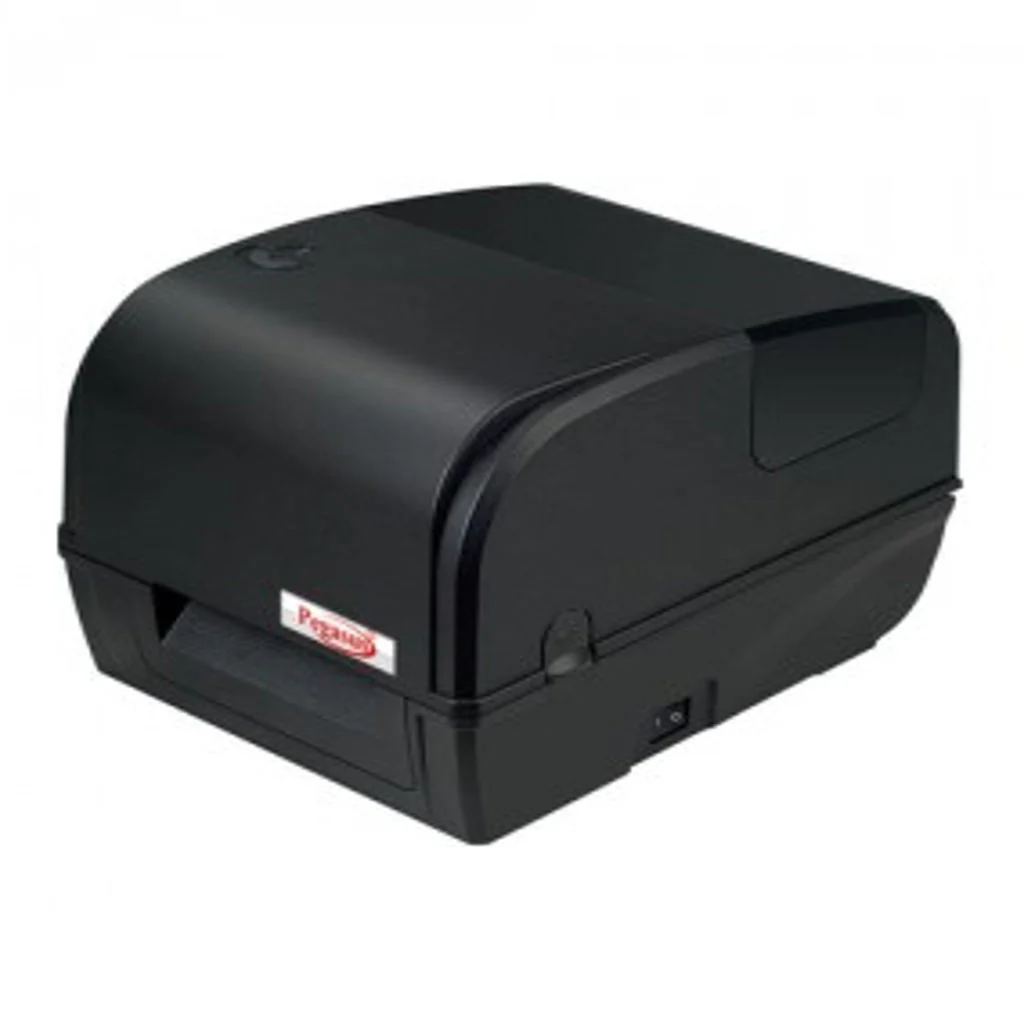

Pegasus Barcode Label Printer BP420
Product Description
-
300 meters ribbon capacity
-
Dual-motor gear driver design
-
Head-up sensor and platen replacement
-
Free bundled labeling software and windows drivers
-
200 MHz 32-bit processor with 8 MB SDRAM,8MB flash memory
Product Specification
|
Brand |
Pegasus |
|
Product Type |
Label Printer |
|
Product Model |
BP420 |
|
Printing Features |
|
|
Resolution |
203 DPI 300 DPI |
|
Printing Method |
Thermal Transfer / Direct Thermal | Print Speed : 127 mm (5”)/s |
|
Max.Print Width |
108 mm (4.25") |
|
Max.Print Length |
1778 mm (70”) |
|
Media |
|
|
Media Type |
Continuous, gap, black mark, fan -fold and punched hole |
|
Media Width |
25.4-118mm (1.0”-4.6”) | thickness : 0.06~0.254 mm (2.36~10mil) |
|
Media Core Diameter |
25.4 ~ 76.2 mm (1 "~ 3 ") |
|
Label Length |
10 - 1778 mm(0.39" ~ 70" ) |
|
Label Roll Capacity |
127 mm (5“) OD (outside wound) |
|
Ribbon Capacity |
Max.300m | Ribbon width: 110m |
|
Performance Features |
|
|
Processor |
32-bit CPU |
|
Memory |
8MB Flash Memory/8MB SDRAM/Flash Can be expanded to Max. 4 GB |
|
Interface |
Standard: USB TF card Optional: LAN/WIFI/Bluetooth/Serial |
|
Sensors |
1Gap sensor, 2Cover opening sensor, 3Black mark sensor, 4Ribbon |
|
sensor |
|
|
Fonts/Graphics/Symbologies |
|
|
Internal Fonts |
8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software |
|
Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, |
|
|
1d Barcode |
Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC2(5) |
|
digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 |
|
|
2d Barcode |
PDF-417, Maxicode, DataMatrix, QR code, Aztec |
|
Rotation |
0°, 90°, 180°, 270° |
|
Emulsion |
TSPL, EPL, ZPL, DPL |
|
Physical Features |
|
|
Dimension |
299 mm (D) x 235 mm (W) x 198.3 mm (H) |
|
Weight |
2.55kg |
|
Reliability |
|
|
Print Head Life |
30 km |
|
Driver |
Windows/Linux/Mac | SDK : Windows/Linux/iOS |
|
Power Supply |
|
|
Input |
AC 100-240V,1.8A, 50-60Hz | Output:DC 24V, 2.5A, 60W |
|
Environmental Conditions |
|
|
Operation Environment |
5 ~ 40°C(41~104°F), Humidity: 25 ~ 85% non -condensing |
|
Storage Environment |
-40 ~ 60°C(-40~140°F),Humidity:10 ~ 90% non -condensing |
|
1 Built-in Ethernet server (10/100 Mbps), 2 RS-232C (2400-115200 bps) |
|
|
Factory Options |
communication interface, 3Cutter, 4Peeling machine, 5Bluetooth module, 6WiFi module |
|
Dealer Options |
1External paper roll holder and 1 "paper roll, 2Extension board for external paper roll holder |
