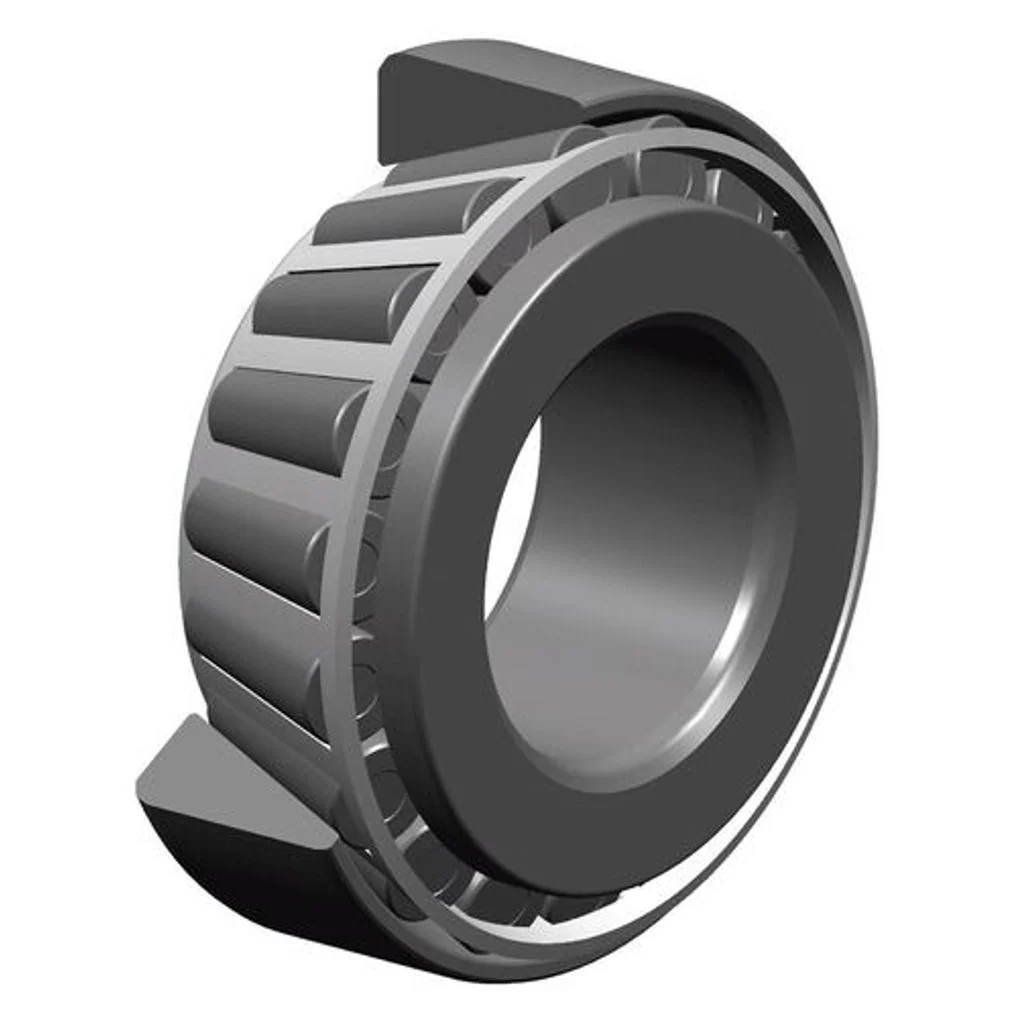

NTN Single Row Tapered Roller Bearing 4T-3478/3420
Product Description
-
The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition
Product Specification
| Brand | NTN |
| Product Type | Bearing |
| Product Model | 4T-3478/3420 |
| Inside Diameter | 34.925 mm |
| Outside Diameter | 79.375 mm |
| Width | 29.771 mm |
| Outer Ring Width | 23.812 mm |
| Total Width | 29.37 mm |
| Dynamic Load | 103 kN |
| Static Load | 114 kN |
| Fatigue Limit Load | 13.9 kN |
| Rating Life Coefficient | 1 |
| Coefficient | 0.37 |
| Static Axial Load Coefficient | 0.9 |
| Upper Axial Load Coefficient | 1.64 |
| Oil Lubrication Limit Speed | 6600 tr/min |
| Grease Lubrication Limit Speed | 4900 tr/min |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 120 °C |
| Weight | 0.731 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 34 x 79 x 29 mm |
| Unit of Measurement | 1 Piece |
| Weight | 0.731 kg |
| Generic Type | Tapered Roller Bearings |
| Manufacturer Details | Polyhose Towers(SPIC Annexe) No 86, Mount Road, Guindy, Chennai 600032 Tel: +91(44)6686 7700 Fax: +91(44)6686 7701 |
| Packer Details | Polyhose Towers(SPIC Annexe) No 86, Mount Road, Guindy, Chennai 600032 Tel: +91(44)6686 7700 Fax: +91(44)6686 7701 |
| Country of Origin | India |
