NTN Single Row Deep Groove Ball Bearing 6021ZZC3/2AS
Product Description
-
The single row deep-groove ball bearing is the most popular bearing
-
It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.
-

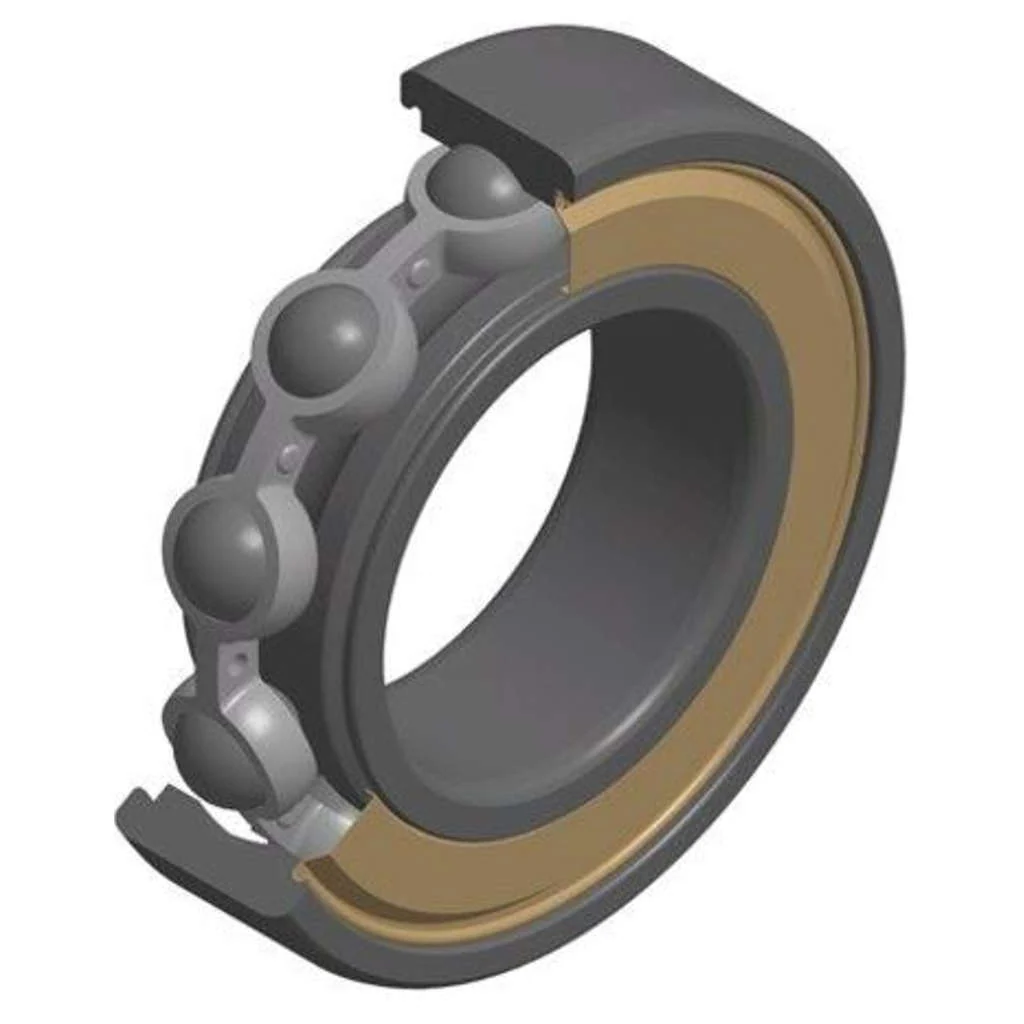

Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | NTN |
| Product Type | Ball Bearing |
| Product Model | 6021ZZC3/2AS |
| Inner Diameter | 105 mm |
| Outer Diameter | 160 mm |
| Width | 26 mm |
| Min Fillet Radius | 2 mm |
| Dynamic Load | 80.5 kN |
| Static Load | 65.5 kN |
| Fatigue Limit Load | 4.15 kN |
| Coefficient | 15.8 |
| Oil Lubrication Limit Speed | 4700 tr/min |
| Grease Lubrication Limit Speed | 4000 tr/min |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 120 °C |
| Cage Material | Steel |
| Mass | 1.59 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) - L x B x H | 105 x 160 x 26 |
| Unit of Measurement | 1 |
| Weight | 1.59 kg |
| Generic Type | Deep Groove Ball Bearings |
| Manufacturer Details | Polyhose Towers(SPIC Annexe) No 86, Mount Road, Guindy, Chennai 600032 Tel: +91(44)6686 7700 Fax: +91(44)6686 7701 |
| Packer Details | Polyhose Towers(SPIC Annexe) No 86, Mount Road, Guindy, Chennai 600032 Tel: +91(44)6686 7700 Fax: +91(44)6686 7701 |
| Country of Origin | India |
