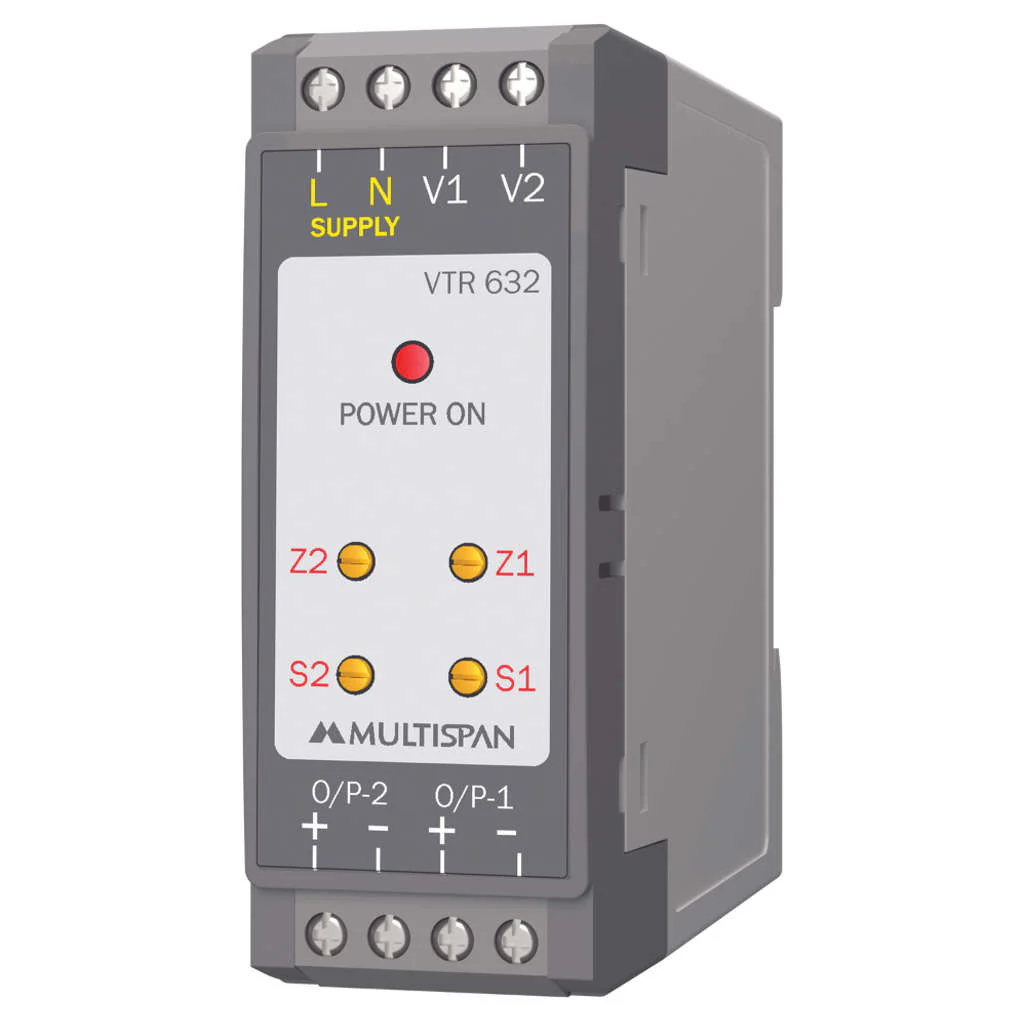

Multispan Voltage Transducer VTR-632
Product Description
-
Features
-
1.5KV isolation supply, input & output
-
Linearized O/P
-
Zero & span correction facility through trim port
-
Fast response time <150ms
-
Application
-
Field Interface device
-
Impedance matching of
-
transmitters and receiver
-
Isolation of field signals
-
Distribution of signals
-
Factory automation
-
Powering of field Transmitters
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Multispan |
| Product Type | Voltage Transducer |
| Product Model | VTR-632 |
| Input Specification | |
| Input | AC Voltage |
| Input Impedance | >100KΩ |
| CMRR | >120dp (Typical) |
| Temperature Co-efficient | <100 PPM |
| Output Specification | |
| Output | 0 to 20mA DC, 4 to 20mA DC, 0 to 10V DC |
| Response Type | <150ms |
| Output Impedance | <220Ω |
| Power Supply | |
| Auxiliary Voltage | 100 TO 270V AC, 50/60Hz or 24V DC |
| Power Consumption ( VA Rating ) | 3 VA |
| Isolation | |
| Isolation Type | Optical - 3 way |
| Isolation Between Supply, Input & Output | At least 1.5KV AC for 1 min |
| Dimension (HxWxD) | 76 x 28 x 85 |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 7.6 x 2.78 x 8.5 |
| Unit of Measurement | 1 Piece |
| Weight | 0.4 kg |
| Generic Type | Voltage Transducers |
| Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Country of Origin | India |
Original: $33.87
-70%$33.87
$10.16
