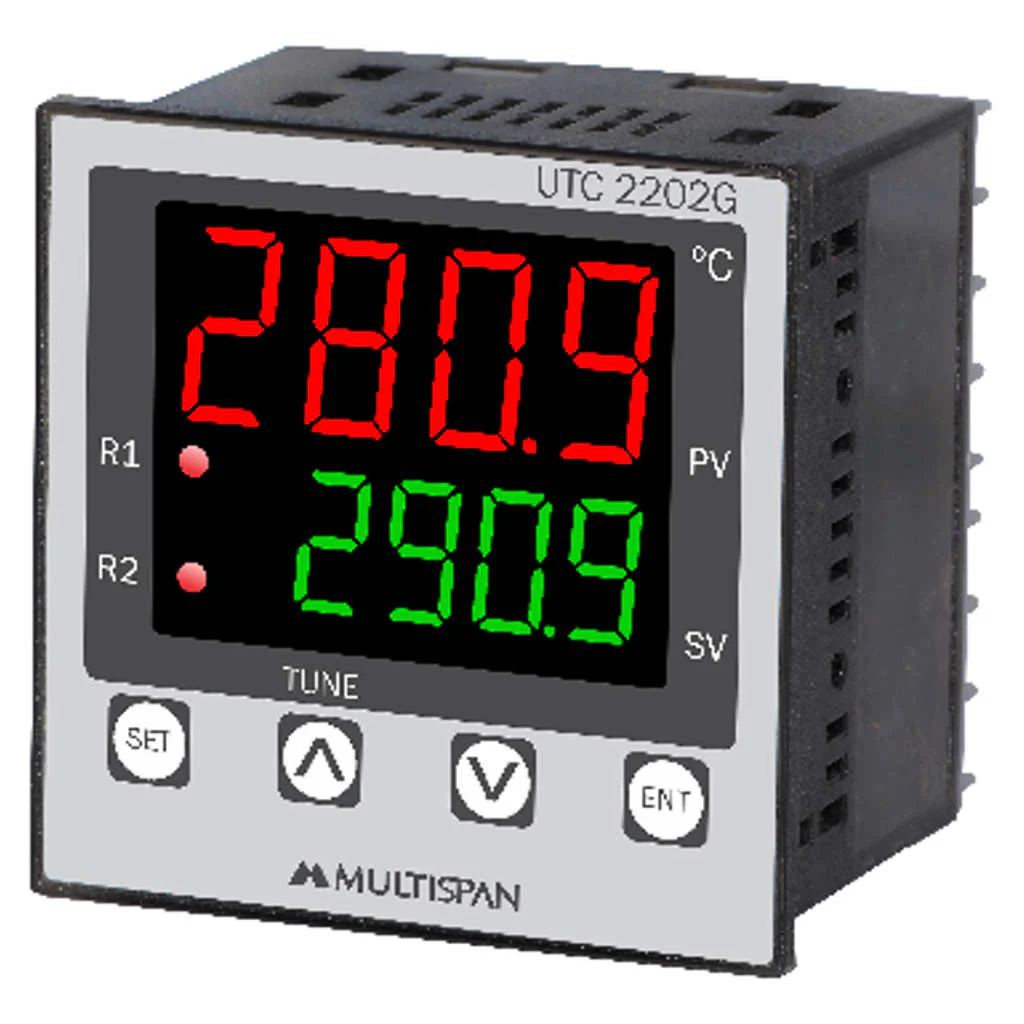

Multispan Temperature Controller Double Display 4 Digit UTC-2202 G
Product Description
-
4 + 4 Digit , 7 Segment Led Display
-
Universal Input Tc/Rtd
-
Pid/On-Off
-
Auto /self Tuning
-
2 Programmable Output (relay Or Ssr)
-
With Soak Timer Facility
Product Specification
|
Brand |
Multispan |
|
Product Type |
Temperature Controller |
|
Product Model |
UTC-2202 G |
|
Input |
|
|
Sensor |
J/K/PT-100 2W/3W(Configurable) |
|
Range |
J(0°C to 600°C), K(0°C to 1200°C, 0.0 to 500.0°C) PT-100 2Wire or 3Wire (-50°C to 400°C,-50.0°C to 400.0°C) |
|
Output |
2Output : (SSR Parallel to 1st Relay) + 1Realy or 1SSR Drive O/P(2Realy 1C/O 5A,230V AC(Resistive Load) & SSR Drive O/P 12V DC,20mA |
|
Operating Mode |
High / Cool / Alarm |
|
Alarm |
High / Inband / Absolute Low / Absolute Outband / Outband / End Alarm / Low Alarm Outband + Soak Timer |
|
Control Action |
PID / TP/ ON-OFF(Configurable) |
|
Accuracy |
±% of FSD |
|
Supply |
100 to 270V AC,50/60Hz,Approx 4VA |
|
Dimension (HxWxD) |
72 x 72 x 85 mm |
|
Panel Cutout |
68 x 68 mm |
