Multispan Signal Isolator MI-431
Product Description
-
Fix Analog Input & Output with Inbuilt Sensor Supply
-
Slim Size which Occupies Less Space in Panel
-
Available in Single and Dual Output with Higher Noise Rejection Ratio
-
3-Way Isolation Input-Output, Input-Supply, Output-Supply
-
Application
-
Field Interface device
-
Impedance matching of
-
transmitters and receiver
-
Isolation of field signals
-
Distribution of signals
-
Factory automation
-
Powering of field Transmitters
-

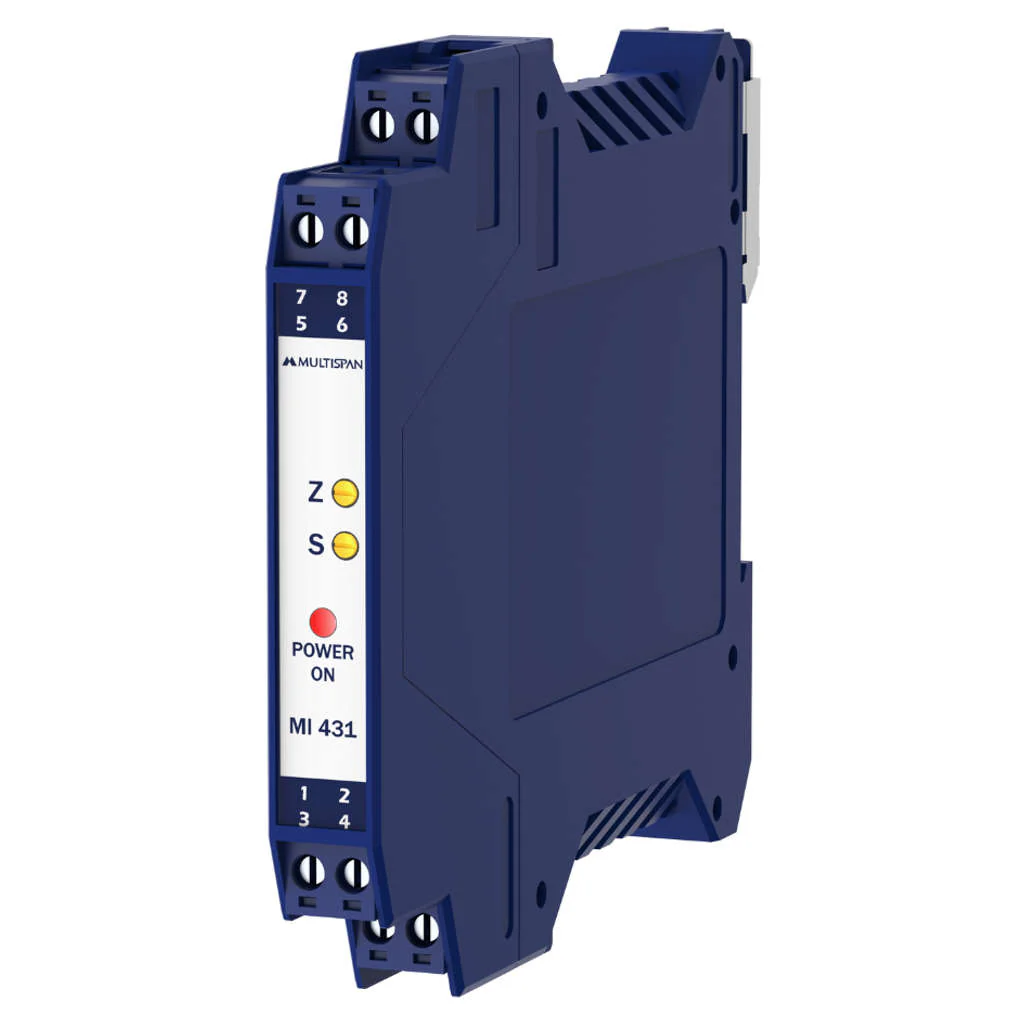

Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Multispan |
| Product Type | Signal Isolator |
| Product Model | MI-431 |
| Property | Value |
| Input | 0 To 20mA DC, 4 To 20mA DC, 0 To 10V DC (Factory Set) |
| Output 1 | 0 To 20mA DC, 4 To 20mA DC, 0 To 10V DC (Factory Set) |
| Output 2 | 24V DC TPS |
| Supply | 100-270V AC/24V DC (Factory Set) |
| Optical Isolation | Between Input & Output Between Input & Supply Between Output & Supply |
| Accuracy | ±1% FSD |
| Operating Ambient Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
| Dimension (HxWxD) | 100 x 17.5 x 115 mm -Dual output 100 x 12.5 x 115 mm -Single output |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 10 x 1.75 x 11.5 |
| Unit of Measurement | 1 Piece |
| Weight | 0.4 kg |
| Generic Type | Signal Isolators |
| Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Country of Origin | India |
Original: $31.82
-70%$31.82
$9.55
