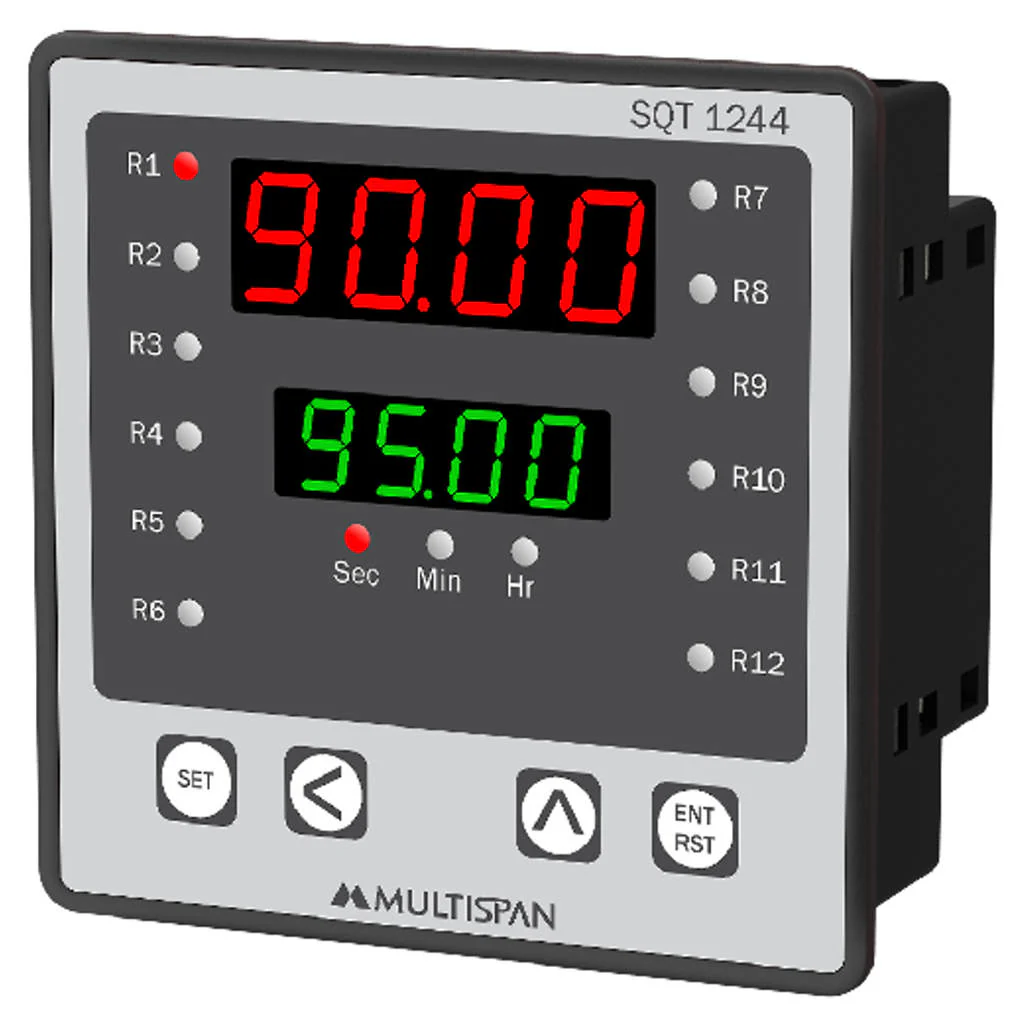

Multispan Sequence Timer 12 Channel 4 Digit SQT-1244
Product Description
-
Dual 7 Segment LED Display
-
Up to 12 Channel
-
Cascading facility in 4 / 8 Channel
-
LED Indication for each channel and timer range
-
Timer range-Sec/Min/Hours
Product Specification
|
Brand |
Multispan |
|
Product Type |
Digital Timer |
|
Product Model |
SQT-1244 |
|
Digits |
4 Digit |
|
Input |
|
|
Range |
99.99 Sec / 999.9 Sec / 99.59 Min / 999.9 Min / 99.59 Hrs / 999.9 Hrs (Configurable) |
|
Output |
8Relay/12Relay 1C/O, 5A, 230V AC, (Resistive Load) & SSR Drive O/P 12V DC 20mA Output(Any One Factory Set) |
|
Program |
Delayed ON / Delayed OFF / Cycle Mode (Configurable) |
|
Counting Direction |
UP / Down (Configurable) |
|
Memory |
Yes / No (Configurable) |
|
Reset |
Front & Back Both Reset Available |
|
Supply |
100-270V AC(SMPS), 50/60 Hz |
|
Dimension (HxWxD) |
96 x 96 x 52 mm |
|
Panel Cutout |
92 x 92 mm |
Original: $81.17
-70%$81.17
$24.35
