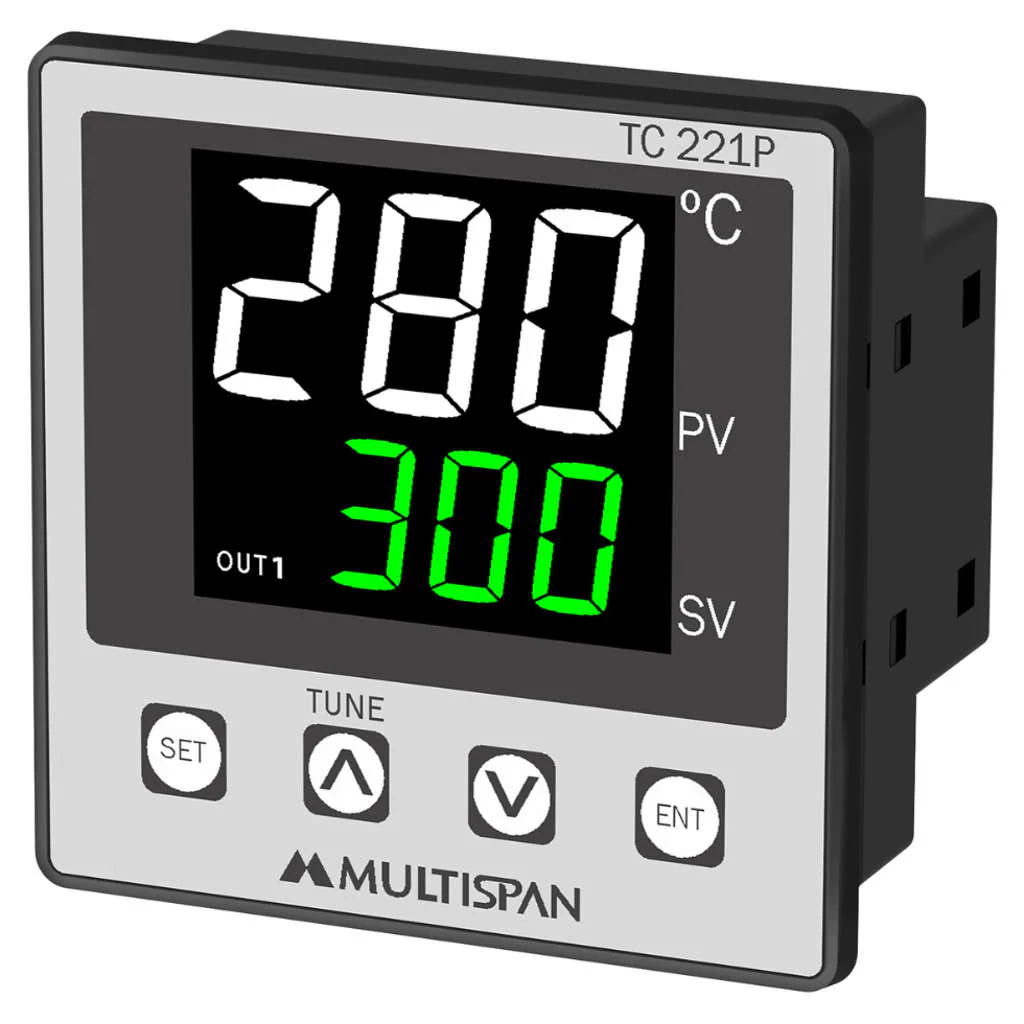

Multispan Dual Display Fix Input PID Temperature Controller TC-221P
Product Description
-
Applications
-
Packaging Machinery
-
Extrusion Machinery
-
Furnace & Boilers
-
Ovens & Incubators
-
Food Industry
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
| Brand | Multispan |
| Product Type | PID Controller |
| Product Model | TC-221P |
| Input | |
| Input Type | Thermocouple : J |
| Display Range | J: 0 to 400° C |
| Accuracy | ± 1% of FSD |
| ADC Resolution | 10 Bits |
| Display Resolution | Thermocouple : 1°C |
| Sample Rate | 6 Sample / Sec |
| CJC Error | ± 2°C |
| Sensor Open | J Type Input |
| Sensor Burnout Current | 1.10uA |
| RTD Excitation Current | 0.2mA |
| CMRR | >120 db ( Typical ) |
| Input Impedance | >1M |
| Max Voltage | 20V DC |
| Output | |
| Control Output | |
| Control Type | On-Off, Auto tune PID |
| Proportional Band | 0.0 to 999 |
| Integral Time | 0 to 999 |
| Derivative Time | 0 to 999 |
| Cycl Time For Relay |
1 sec to 99 sec 4 sec to 99 sec |
| Relay Control Output | |
| Relay | 1 Nos. |
| Rating | 5A @230V AC / 28V DC |
| SSR Control Output | |
| Rating | 12V DC @30mA |
| Display | |
| Process Value | UPPER: 3 Digit 7 seg 0.80”,RED |
| Set Value | LOWER: 3 Digit 7 seg 0.40”,GREEN |
| Keys | SET, UP, DOWN, ENT |
| LED Indication | Relay , SSR |
| Power Supply | |
| Standard | 100 - 270V AC @ 50/60 Hz |
| Optional | 24V DC |
| Consumption | 4VA |
| Environmental | |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | 0 to 70°C |
| Humidity | 95% RH Non-condensing |
| Protection | IP 54 ( Front Side) |
| Sensor Range | |
| J | 0 to 400°C |
| Physical | |
| Enclosure | Molded ABS |
| Color | Black |
| Front Bezel | 72 x 72 mm |
| Panel Cutout | 68 x 68 mm |
| Depth Behind Panel | 45 mm |
| Accessories | 1 pair of Mounting clamp |
| Terminal Cable Size | Barrier Type terminal |
| Dimension (HxWxD) | 72 x 72 x 45 |
| Weight | 180 gm |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 7.2 x 7.2 x 4.5 |
| Unit of Measurement | 1 Piece |
| Weight | 0.75 kg |
| Generic Type | Temperature Controllers |
| Manufacturer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Packer Details | Multispan Control Instruments Pvt Ltd 72 B, Rd D, Phase I, GIDC Estate, Vatva, Ahmedabad, Gujarat 382445 |
| Country of Origin | India |
