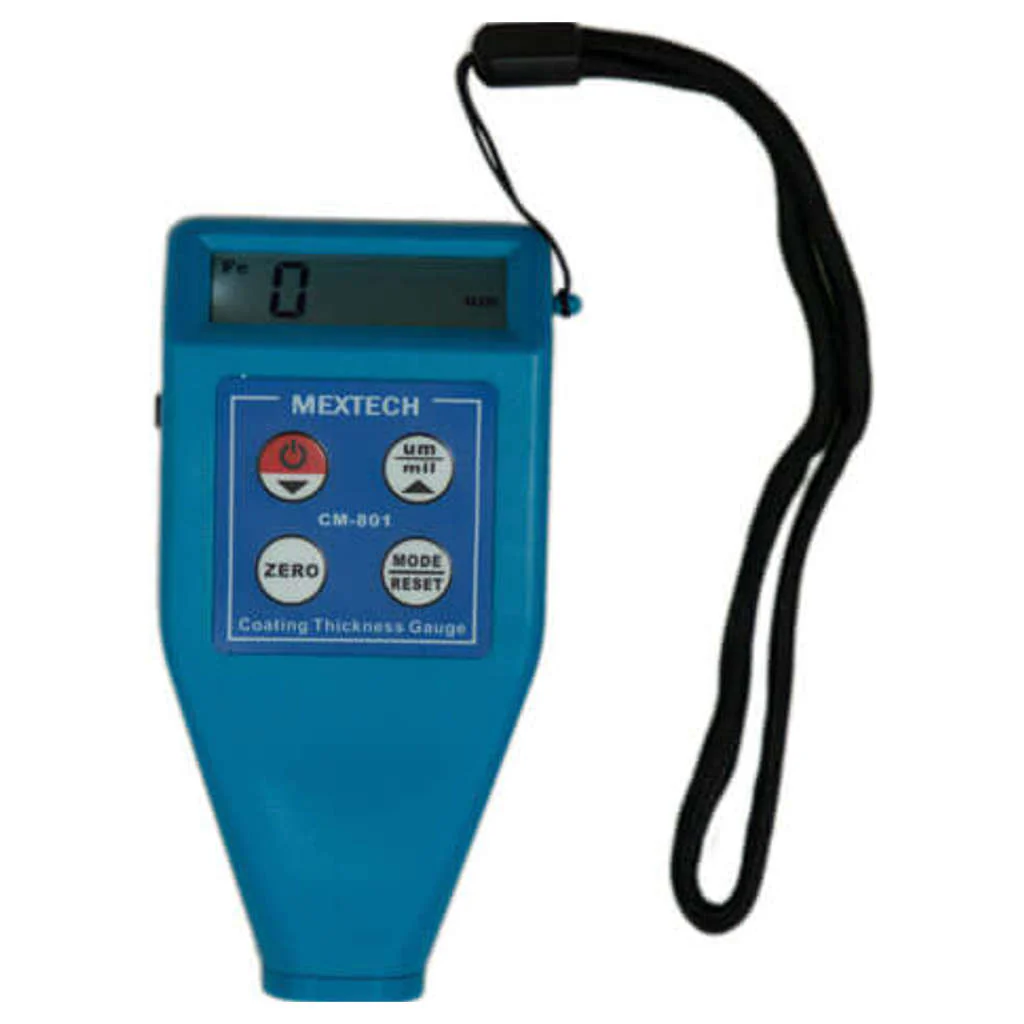

Mextech Coating Thickness Meter 6mm CM801
Product Description
-
Application
-
The Fe function measure the thickness of non-magnetic materials (e.g. paint,plastic,porcelain enamel,copper,zinc, aluminum,chrome etc.) on magnetic Materials (e.g. Iron,nickel etc.)
-
Often used to measure the thickness of galvanizing layer, lacquer layer,porcelain enamel layer, phosphide layer,copper tile,aluminum tile,some alloy tile,paper etc
-
The NF function measure the thickness of non-magnetic coatings on non-magnetic metals
-
It is used on anodizing,varnish,paint,enamel,plastic coatings,powder,etc.applied to aluminum, brass,non-magnetic stainlesssteel,etc
-
Auto Power Off
Product Specification
| Brand | Mextech |
| Product Type | Thickness Meter |
| Product Model | CM801 |
| Display | 4 Digit Display (10mm LCD) |
| Measuring Range | 0~1350μm/0~53mil |
| Accuracy | ±2~3%n or ±2.5μm or 0.1mil (Whichever is the greater) |
| Resolution | 0.1 um (0~99.9um), 1 um (over 100um) |
| Operating Principle | Magnetic Induction (F) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3mm |
| Minimum Radius Work Piece | Fe Type: convex 1.5mm/concave 25mm |
| Operating Temperature & Humidity | 0°C to 50°C,≤80%RH |
| Calibration | Self Calibration |
| Battery Indicator | Low Battery Indication |
| Power Supply | 2×1.5 AAA |
| Including Components | Operational Manual, Calibration Foil, Carrying case, Substrate block |
| Display Size | 42 X 12 mm |
| Dimension (W X H X D) | 115 x 57 x 26 mm |
| Weight | 200 gm Excluding batteries |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 11.5 x 5.7 x 2.6 |
| Unit of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | Thickness Meter |
| Manufacturer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Packer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Country of Origin | India |
