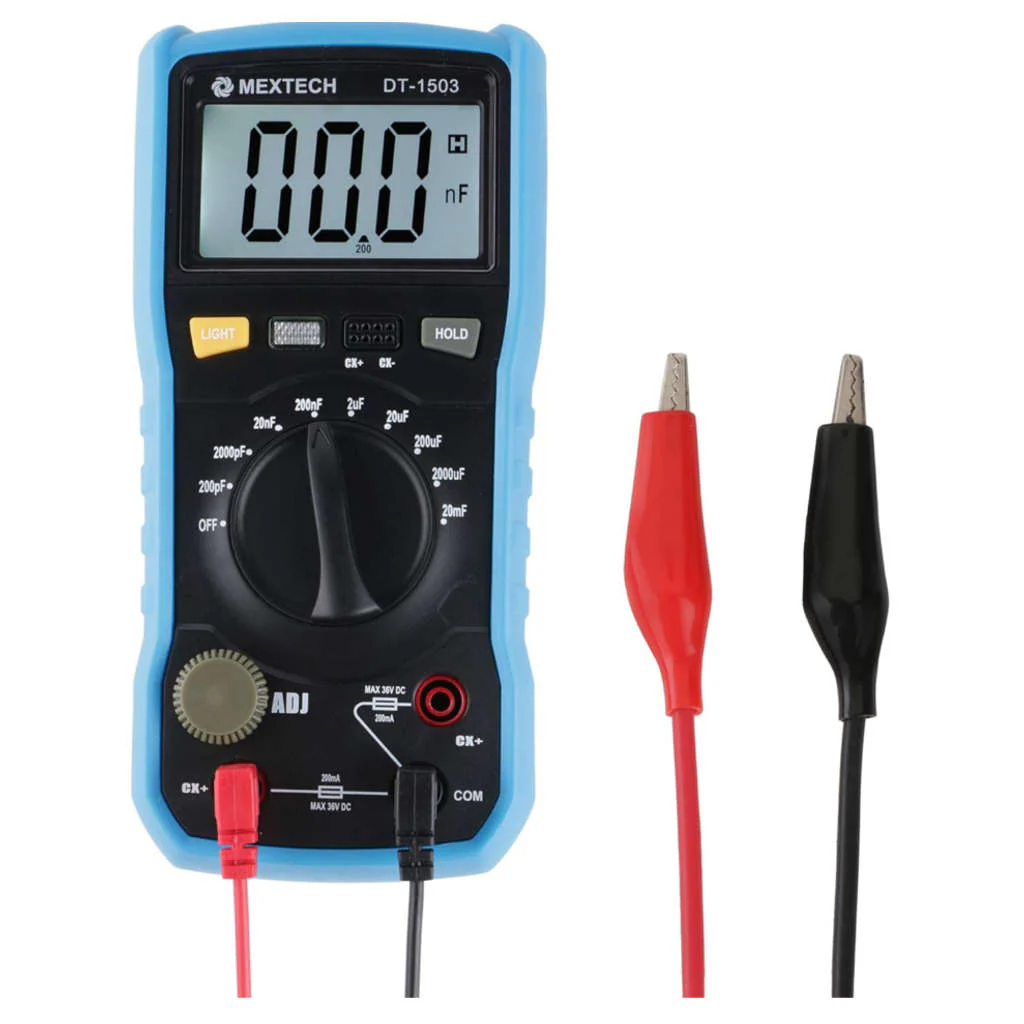

Mextech 31⁄2 Digits Digital Capacitance Meter DT1503
Product Description
-
Application
-
This is a 3½ Digits Digital Capacitance Meter
-
Suitable for factories, Laboratories, Schools & ResearchInstitutes and other Use
-
Features
-
Display: 3 ½ Digits
-
Four Measuring Units : pf, nf, μ F, mf
-
Low Battery Indication
-
Data Hold Function
-
Fuse Protection
-
Zero Adjustment knob for all Ranges
-
Backlight (Automatic Shutdown after 10 Seconds)
Product Specification
| Brand | Mextech | ||
| Product Type | Digital Capacitance Meter | ||
| Product Model | DT1503 | ||
| Display | 3 ½ Digits | ||
| Functions | |||
| Range | Revolution | Accuracy | Test Frequency |
| 200pF | 0.1pF | ±(0.8%=1dgt) | 800Hz |
| 2000pF | 1pF | 800Hz | |
| 20nF | 10pF | 800Hz | |
| 200nF | 100pF | 800Hz | |
| 2 µ F | 1nF | ±(1%+4dgt) | 800Hz |
| 20 µ F | 10nF | 80Hz | |
| 200 µ F | 100nF | 8Hz | |
| 2000 µ F | 1 µ F | Only Reference | 8Hz |
| 20m µ F | 10 µ F | 8Hz | |
| Power | 9V X 1 battery | ||
| Display Size | 64 X 35 mm | ||
| Including Components | Instruction Manual, One Set Test Leads, 1pc 9V Battery | ||
| Dimension (L x W x H) | 185 X 90 X 53 mm | ||
| Warranty | As Per Manufacturer Terms and Condition | ||
Other Details
| Dimension (CM) - L x B x H | 18.5 x 9 x 5.3 |
| Unit of Measurement | 1 Piece |
| Weight | 380 g |
| Generic Type | Capacitance Meter |
| Manufacturer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Packer Details | Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
| Country of Origin | India |
