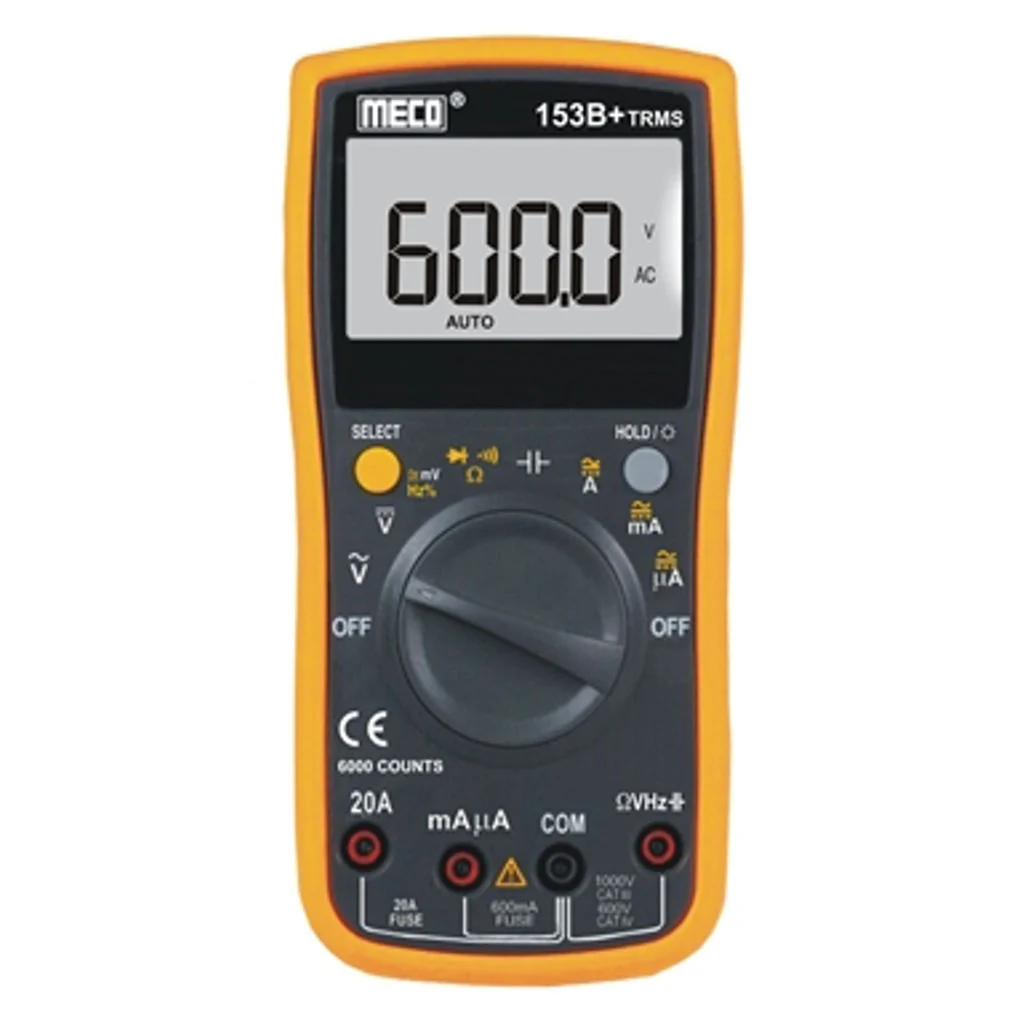

Meco TRMS Autoranging Digital Multimeter With Holster 3-5⁄6 Digit 6000 Count 153B+TRMS

Brand

Meco

Product Model

153B+TRMS

Product Type

Digital Multimeter

Display

3-5/6 Digits LCD Display

Counts

6000

DC Voltage

60 / 600mV / 6 / 60 / 600 / 1000V

Accuracy

± (1.0% rdg + 4 dgt) on 60 / 600mV

± (0.5% rdg + 2 dgt) on 6 / 60 / 600V

± (1.0% rdg + 3 dgt) on 1000V

AC Voltage

60 / 600mV / 6 / 60 / 600 / 750V

Accuracy

± (1.0% rdg + 5 dgt) on all ranges except

± (1.2% rdg + 5 dgt) on 60 / 600mV

± (1.5% rdg + 5 dgt) on 750V

AC Response

40Hz ~ 1KHz

DC Current

600 / 6000μA / 60 / 600mA / 6 / 20A

Accuracy

± (1.0% rdg + 2 dgt) on 600 / 6000μA

± (1.2% rdg + 3 dgt) on 60 / 600mA

± (1.5% rdg+ 5 dgt) on 6 / 20A

AC Current

600 / 6000μA / 60 / 600mA / 6 / 20A

Accuracy

± (1.5% rdg + 5 dgt) on 600 / 6000μA

± (2.0% rdg + 5 dgt) on 60 / 600mA

± (2.5% rdg + 5 dgt) on 6 / 20A

AC Response

40Hz ~ 1KHz

Resistance

600V / 6 / 60 / 600KV / 6 / 60MV

Accuracy

± (1.2% rdg + 2 dgt) on 600V & 6MV

± (1.0% rdg + 2 dgt) on 6 / 60 / 600kV

± (1.5% rdg + 2 dgt) on 60MV

Capacitance

9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9μF / 9.999mF

Accuracy

± (2.0% rdg + 4 dgt) on all ranges except

± (3.0% rdg + 4 dgt) on 9.999mF

Frequency

99.99Hz ~ 10.00MHz

Sensitivity

1V ~ 36V AC

Accuracy

±(0.05% rdg + 4 dgt)

Duty Cycle

0.1% ~ 99.9%

Sensitivity

1V ~ 36V AC

Accuracy

± (0.05% rdg + 4 dgt)

Measuring Category

CAT III 1000V, CAT IV 600V

Sp Function

Diode test, Audible Continuity, Data Hold

Power

Two 1.5V 'AA' Battery

Battery Life

200 hours typical

Accessories

Test Leads (Pair), Holster, Battery (installed) & Instruction Manual

Dimensions

180 x 90 x 52mm (approx.)

Weight

370gms Including Battery (approx.)

Warranty

1 Year
