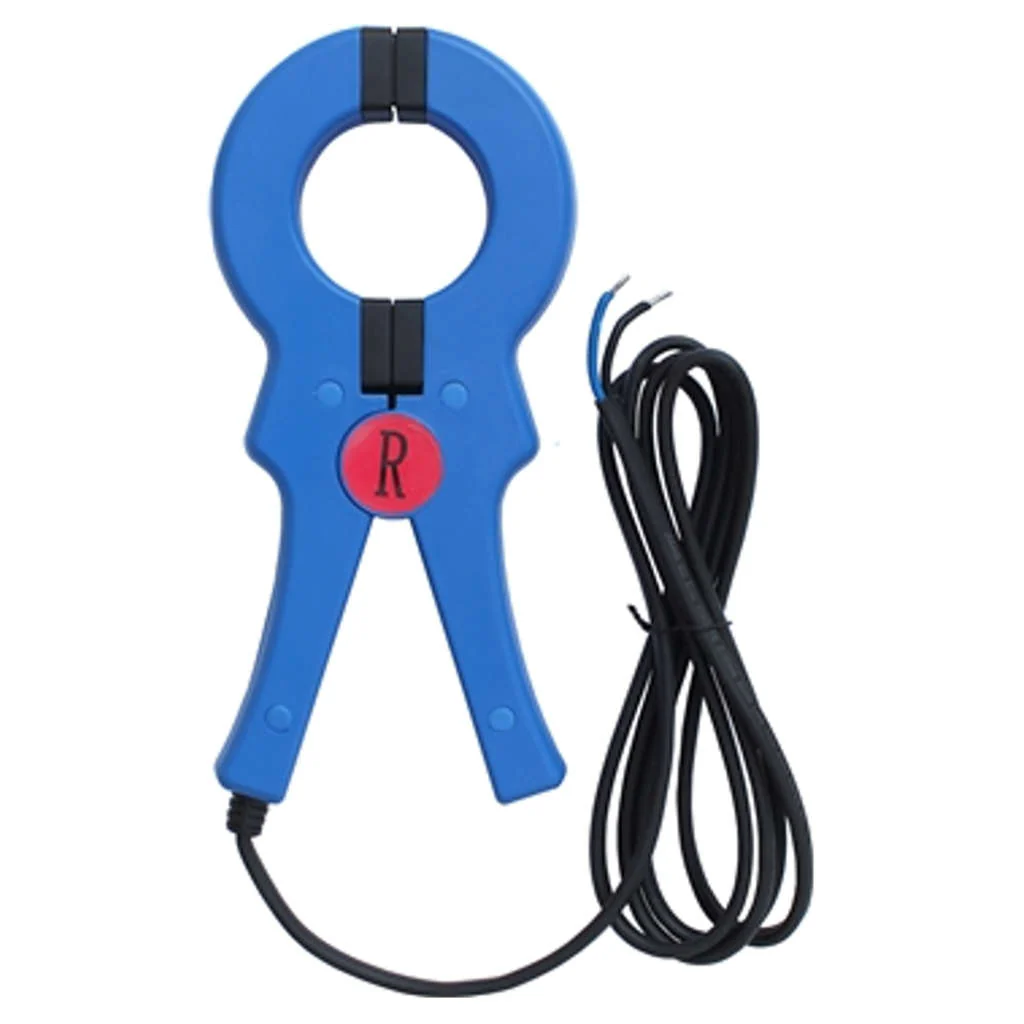

Meco Clamp - On AC Current Transformer CCT50 - 500/5A AC
ProductDescription
-
Key Features
-
Clamp - On Design, Fastening Safe, Easy to Install, Portable
-
Wide Inner Window, Allowing Clamping of Big Cables or Bus – Bar
-
Silicon Steel / Permalloy Core
-
Operating Temperature -25 °C to 75 °C
-
Operating Humidity < 85%
-
Output Connection UL1015 22AWG Wire (Twisted Wire) 2m
-
Application
-
Current Measurement, Monitoring and Protection for Electrical Wiring and Equipment
-
Current and Power Measurement for Electric Motors, Lighting, Air Compressor, Heating and Ventilation System, Air-Condition Equipment and Automation-Control System
-
Current, Power and Energy Monitoring Device
ProductSpecification
| Brand | Meco |
| Product Type | Current Transformer |
| Product Model | CCT50 - 500/5A AC |
| Rated Input (A AC) | 0 - 500A |
| Rated Output | 5A AC |
| Accuracy | 1.0% |
| Window Size (ID) | 50 mm |
| Frequency | 50 - 400Hz |
| Measuring Range | 5% In - 130% In |
| Ratio | ≤ ± 0.1 % |
| Phase Angle | ≤ ± 10 min |
| Dielectric Strength | 3.0KV / 1mA / 1min |
| Insulation Resistance | DC500V / 100MΩ min |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) L x B x H | 20 x 14 x 5.5 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.800 kg |
| Generic Name | Current Transformers |
| Manufacturer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Packer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Country Of Origin | India |
Original: $80.62
-70%$80.62
$24.19
