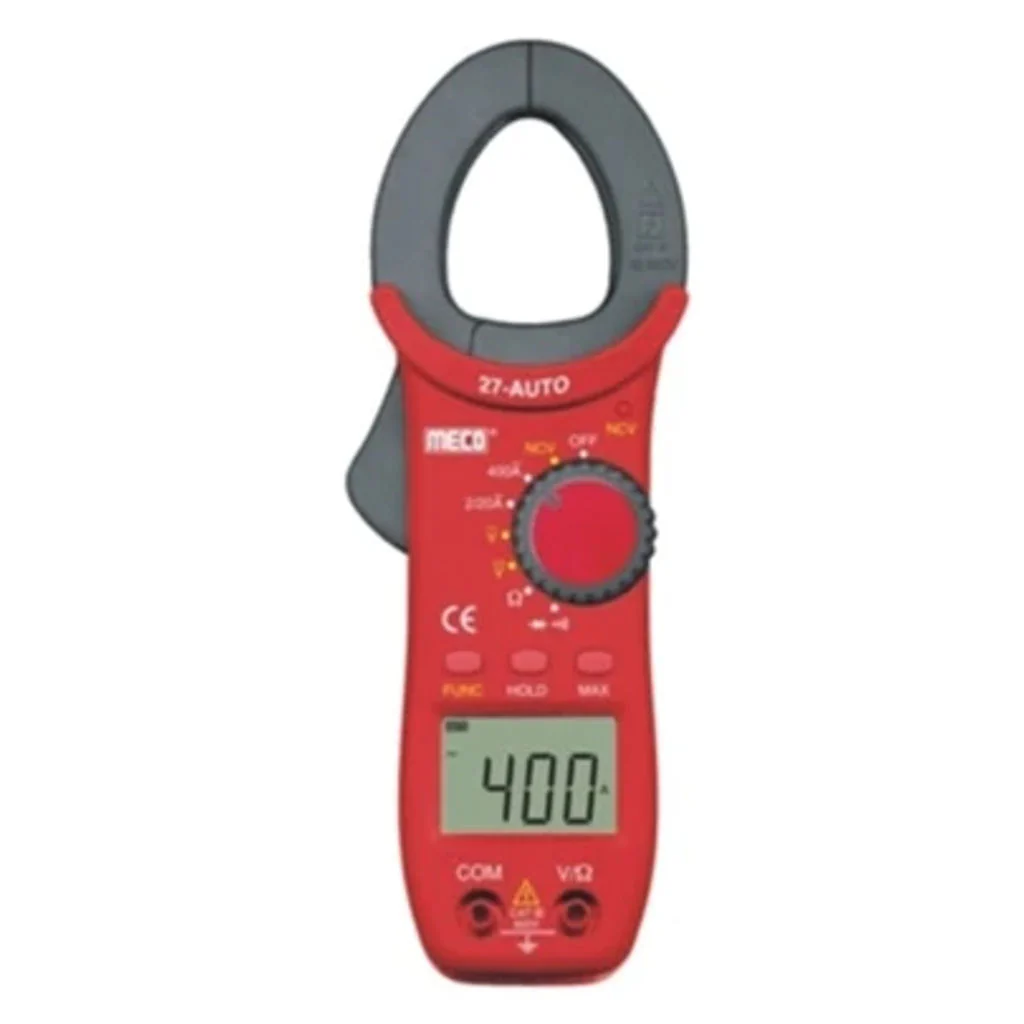

Meco 27-Auto Digital AC Clamp Meter
Product Description
-
Auto Ranging
-
2000 Count
-
Data Hold
-
Resistance, Continuity, Diode
-
Non Contact Voltage
-
Auto Power Off
Product Specification
|
Brand |
Meco |
|
Model |
27-Auto |
|
Product Type |
Digital AC Clamp Meter |
|
Display |
3-1/2 Digits LCD Display |
|
Display Counts |
2000 |
|
Jaw Opening Size |
25 mm |
|
AC Current |
2A, 20A, 200A, 400A (Auto Ranging) |
|
AC Current Accuracy |
±(3%rdg+5dgt) on 2A ±(2%rdg+3dgt) on 20A ±(2%rdg+5dgt) on 200A & 400A |
|
Overload |
400A AC max. for 1 min. |
|
AC Voltage |
2V, 20V,200V, 600V (Auto Ranging) |
|
AC Voltage Accuracy |
±(1.2%rdg+3dgt) |
|
DC Voltage |
200mV, 2V, 20V, 200V, 600V (Auto Ranging) |
|
DC Voltage Accuracy |
±(0.8%rdg+3dgt) |
|
Resistance |
200V, 2kV, 20KV, 200kV, 2MV, 20MV (Auto Ranging) |
|
Resistance Accuracy |
±(1.2%rdg+3dgt) |
|
Audible Continuity |
40V Approx |
|
Diode Test Function |
1.0 ±0.6mA Approx |
|
Power |
Two 1.5V 'AAA' Battery |
|
Battery Life |
200 Hours Typical |
|
Accessories |
One Pair of Test Leads, Instruction Manual, Carrying Case, Battery (installed) |
|
Dimension |
185 x 65 x 28 mm (approx.) |
|
Weight |
170gms Including Battery (approx.) |
