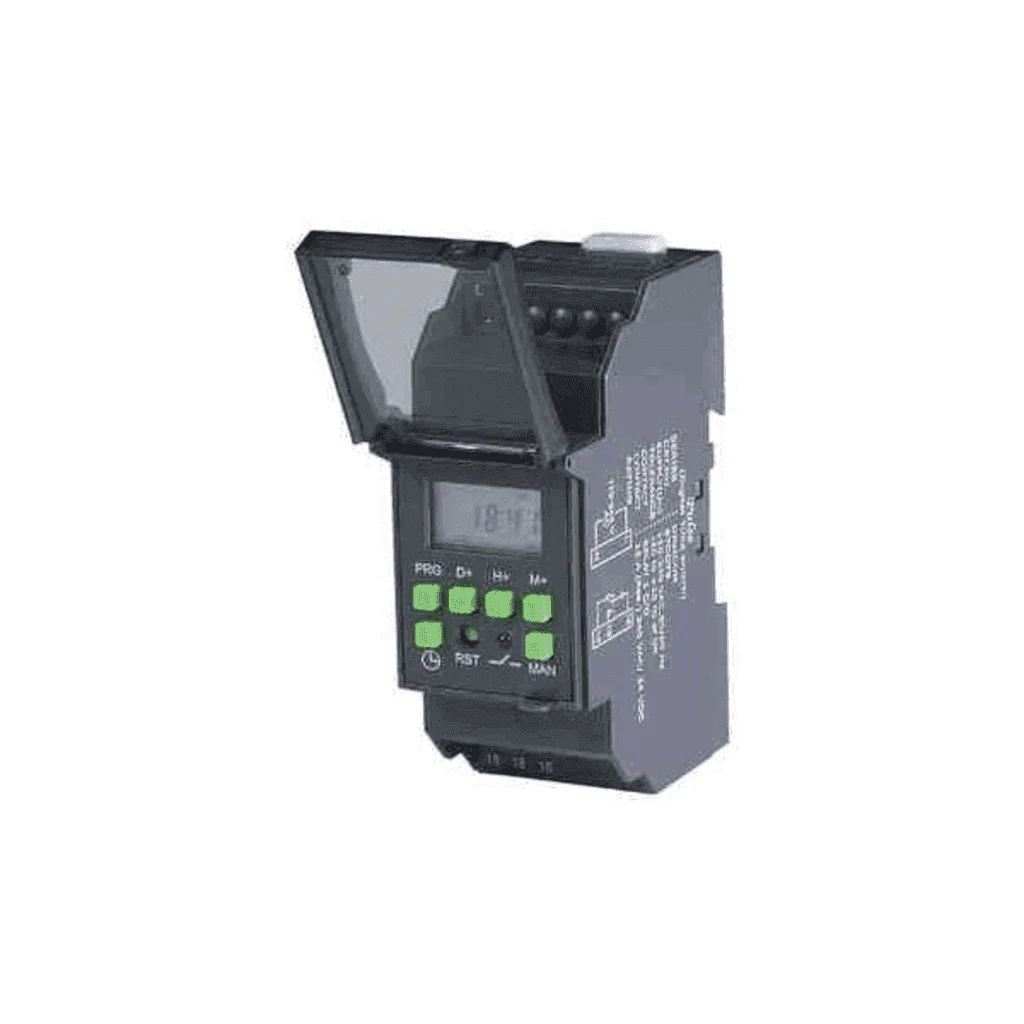

L&T [ Lauritz Knudsen ] Pulse Digital Time Switch
Product Description
|
Supply Voltage |
110 – 240 VAC |
|
Supply Variation |
-20% to +10% |
|
Frequency |
50/60 Hz |
|
Power Consumption (Max.) |
6 VA |
|
Number of Programs |
16 Pulse programs |
|
Minimum Switching Time |
1 s |
|
Pulse Duration |
1 to 59 s (Programmable) |
|
Number of Operating Modes |
5 |
|
Description Modes |
AUTO - Program Run ON – Continuous ON OFF - Continuous OFF |
|
Display |
3 Lines Text LCD |
|
DST |
Programmable |
|
Clock accuracy |
+/- 2 s/day max. over the operating temp.range |
|
Power reserve from factory |
6 Years |
|
Contact Arrangement |
1 C/O |
|
Contact Rating |
16 A (NO) and 5 A (NC) @ 240 VAC / 24 VDC |
|
Utilization category: AC - 15 |
Rated Voltage (Ue): 120/240 V, Rated Current (le):3/1.5 A |
|
Utilization category: DC - 13 |
Rated Voltage (Ue): 24/250 V, Rated Current (le): 2.0/0.22/0.11 A |
|
Operating Temperature |
-10° C to +55° C |
|
Storage Temperature Range |
-10° C to +60° C |
|
LED Indication |
Red LED --> Relay ON |
|
Dimension (WxHxD) (in mm) |
36x90x65 |
|
Weight |
110 g |
|
Applications |
Ideal for lighting applications like street lighting, Advertising Displays, Glowsigns etc.. |
Product Specifications
|
Cat. No |
Voltage Rating |
Contact Arrangement |
|
67DDT9 |
110 - 240 VAC |
1 C/O |
|
6GHDT9 |
24 VDC |
1 C/O |
|
69HDT9 |
12 VDC |
1 C/O |
Original: $32.77
-70%$32.77
$9.83
