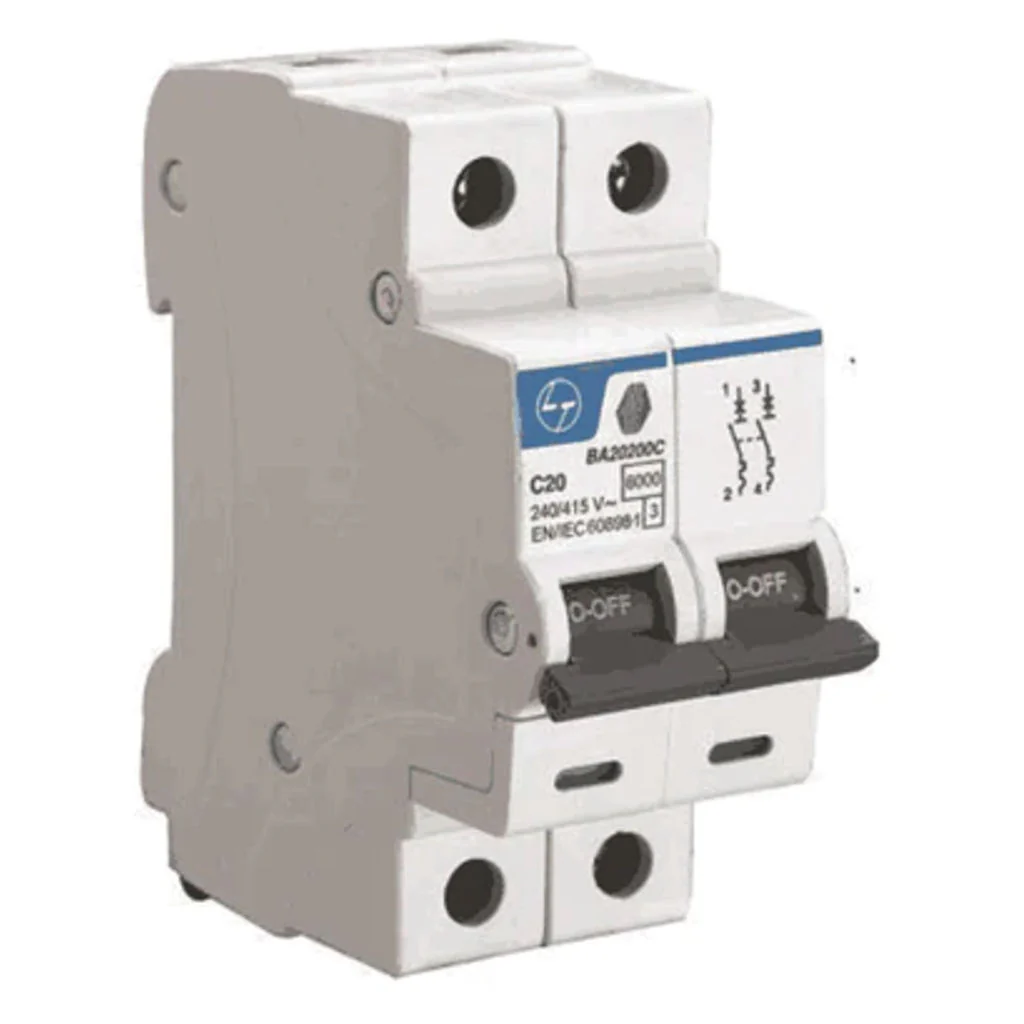

L&T [ Lauritz Knudsen ] MCB 0.5A-63A DC MCBs Curve Double Pole

Product Description

• True contact indication for individual pole

• Label holder facility for all configurations

• Conforms to IS / IEC 60898 and IEC 60947 - 2

• Breaking capacity of 10kA throughout the range

• Available in B, C & D curves

• Low watt loss - almost 50 % of the values prescribed by IS / IEC 60898

• Trip free mechanism

• Design based on advanced current limiting hammer trip mechanism

• No Line-Load bias

• Suitable for accessory fitment

• DC MCBs as per IEC 60947-2 Rated Voltage:130V DC (for SP), 250V DC (for DP) with breaking capacity of 6kA

Product Specification

Rating	Model
0.5A	BB20E5DC
1A	BB2001DC
2A	BB2002DC
3A	BB2003DC
4A	BB2004DC
6A	BB2006DC
10A	BB2010DC
16A	BB2016DC
20A	BB2020DC
25A	BB2025DC
32A	BB2032DC
40A	BB2040DC
50A	BB2050DC
63A	BB2063DC
