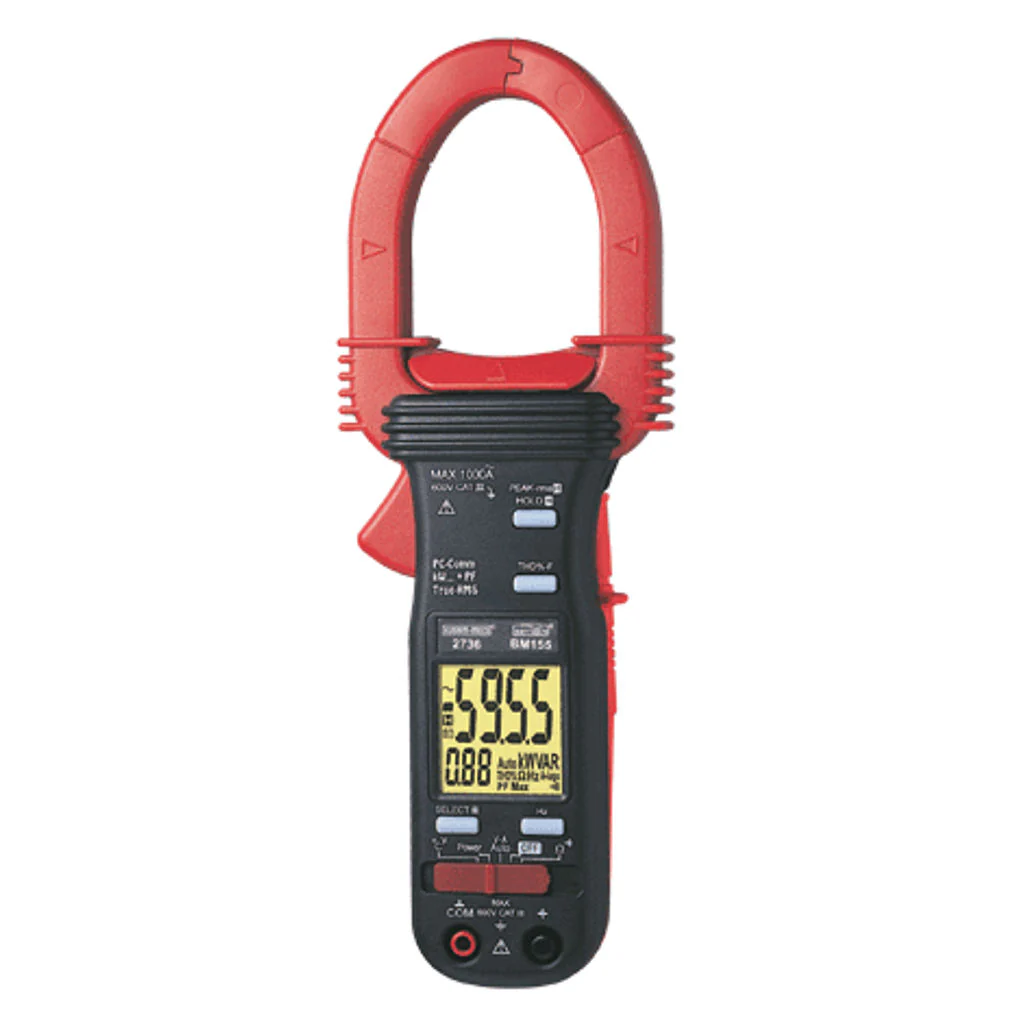

Kusam-meco TRMS Power Clamp Meter Single Phase 2736
Product Description
-
Selectable Power parameters of KW, KVAR & KVA with Total Power Factor in dual-display
-
AutoVA (Auto Selection on ACV, DCV or ACA functions)
-
THD%-F Function
-
Backlight display
-
Display Hold; Peak-rms Hold
-
PC Interface Capabilities (Optional)
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
2736 |
|
Product Type |
Power Clamp Meter |
|
Sensing |
True RMS sensing |
|
Jaw Opening & Conductor Diameter |
45mm max |
|
Display |
Voltage
Function : 6000 Counts LCD display Power, |
|
Update Rate |
Power
function : 2 per second nominal Voltage, |
|
Polarity |
Automatic |
|
Operating Temperature |
0 °C to 40 °C |
|
Relative Humidity |
Maximum relative humidity 80% for temperature upto 31 °C decreasing linearly to 50% relative humidity at 40 °C |
|
Low Battery |
Below Approx 2.4V |
|
Altitude |
Operating Below 2000m |
|
Storage Temperature |
-20 C to 60 C,< 80% R.H. (With battery removed) |
|
Temperature Coefficient |
Nominal 0.15 x(Specified Accuracy) / °C @ (0 °C -18 °C or 28 °C - 40 °C), or Otherwise Specified |
|
Power Supply |
Standard 1.5V AAA Battery x 2. |
|
Power Consumption |
Voltage, ACA, Hz & Power :11mA typical |
|
Ohm Function |
5.5mA Typical |
|
APO Timing |
Idle for 30 Minutes |
|
APO Consumption |
4mA Typical |
|
Dimension |
224(L) x 78(W) x 40(H) mm |
|
Weight |
Approx. 224 gms |
|
Warranty |
As Per Manufacturer Terms and Condition |
