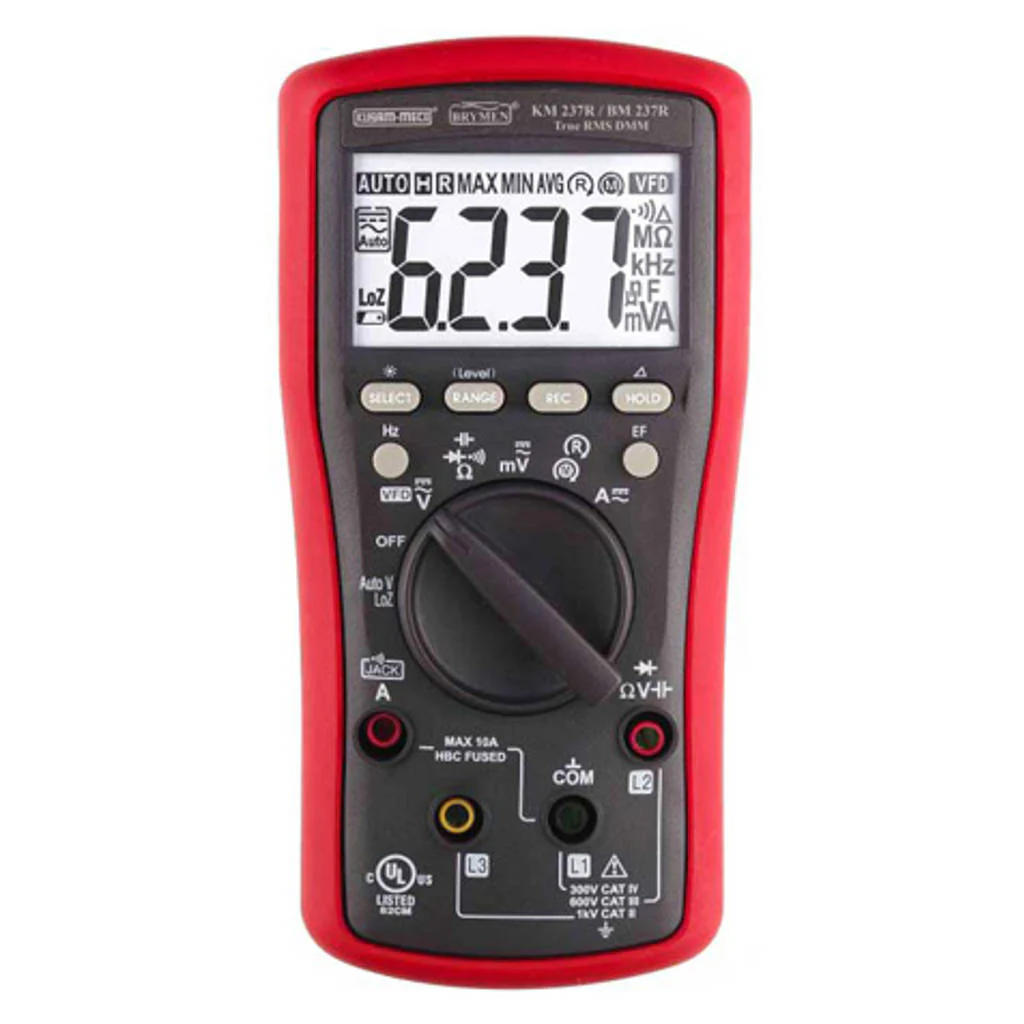

Kusam-meco TRMS Digital Multimeter With VFD KM 237R

Product Description

• Special Features

• Auto V(LoZ), VFD V & Hz Function

• BeepLit Continuity, Features Audible Beep & Visible Backlight Effects

• Display Hold

• EF-Detection (NCV)

• Beep-Jack Input warning against improper A-terminal plug in

• Low Battery Indication

• Paper White Backlight Display

• Auto-ranging Relative Zero Mode

• Auto Power Off

• 3phase rotation-R(Regular-sensitivity mode) for supply systems(probe-contact)

• Auto-ranging MAX/MIN/AVG record

• 3phase rotation-M (Hi-sensitivity mode) for Motors (probe-contact)

• Diode & Continuity Test

• Rugged Fire retarded

• General Specifications

• Sensing : TRUE RMS AC conversion

• Display : 3-5/6 Digits 6000 counts LCD display

• Temperature Coefficient : nominal 0.15 x (specified accuracy) /°C @ (-10°C~18°C or 28°C~45°C), or otherwise specified

• Update Rate : 5 per second nominal

Product Specification

Brand	Kusam-meco
Product Model	KM 237R
Product Type	Digital Multimeter
Display	3-5/6 Digits 6000 Counts LCD Display
Power Consumption	Typical 3.2mA
Power Supply	1.5V AAA Battery x 2
Sensing	TRUE RMS AC Conversion
Update Rate	5 Per Second Nominal
Low Battery	Below Approx. 2.5V
Operating Temperature	-10°C to 45°C
Relative Humidity	Maximum Relative Humidity 80% For Temperature Upto 31°C Decreasing Linearly To 50% Relative Humidity At 45 °C
Altitude	Operating Below 2000m
Pollution Degree	2
Storage Temperature	-20 °C to 60 °C, <80% R.H. With Battery Removed From Meter
Temperature Coefficient	Nominal 0.15 x (Specified Accuracy) /°C @ (0 °C~18 °C or 28 °C~45 °C), Or Otherwise Specified
APO Timing	Idle for 30 Minutes
APO Consumption	Typical 10 µ A
Dimension	161(L) X 80(W) X 50(H) mm (with Holster)
Weight	Approx. 334 gm ( With Holster)
Warranty	As Per Manufacturer Terms and Condition
