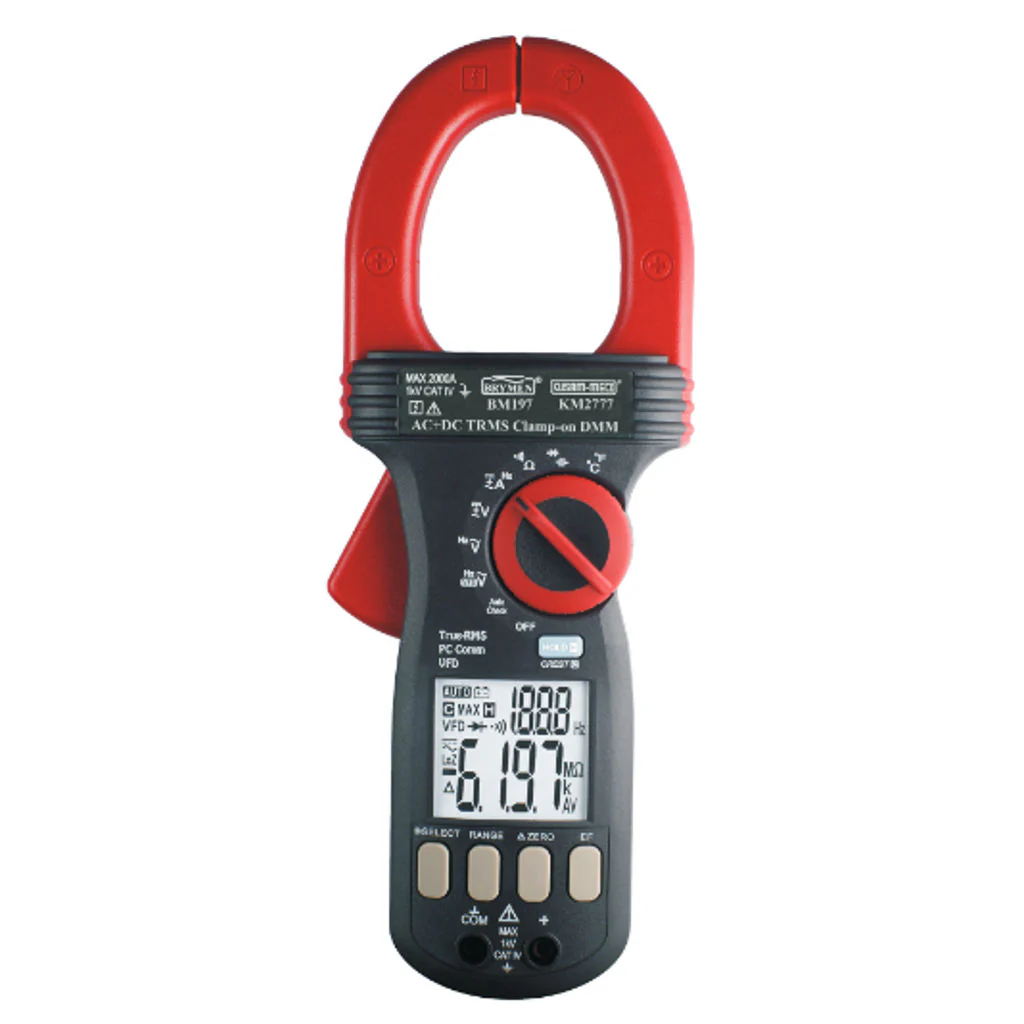

Kusam-meco TRMS Clamp-On Multimeter With VFD,EF Detection KM 2777
Product Description
-
AutoCheck Voltage & Ohms
-
VFD-V & VFD-Hz function
-
5ms CREST-MAX capture mode (Peak Hold)
-
Autoranging Relative -Zero mode
-
Display Hold function
-
EF-Detection (NCV)
-
Backlight LCD Display
-
Auto Power Off
-
Diode Test & Continuity Test
-
PC Interface (Optional)
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
KM 2777 |
|
Product Type |
Clamp Multimeter |
|
Power Supply |
Standard 1.5V AAA Battery x 2 |
|
Power Consumption |
Typical 14mA for Current function & 5.2mA for others |
|
APO Timing |
Idle for 34 Minutes |
|
APO Consumption |
10a Typical |
|
Sensing |
TRMS Sensing |
|
Jaw Opening Size |
55mm Max |
|
Display |
3-5/6 Digits 6000 Counts & 3½ Digits 1,999 Counts for Hz |
|
Update Rate |
5 Per Second Nominal |
|
Polarity |
Automatic |
|
Low Battery |
Below Approx. 2.4V |
|
Operating Temperature |
0 °C to 40 °C |
|
Relative Humidity |
Maximum 80% R. H. for Temperature Upto 31° C Decreasing Linearly To 50% Relative Humidity At 40° C |
|
Storage Temperature |
-20 °C to 60 °C,<80% RH (With Battery Removed) |
|
Temperature Coefficient |
Nominal 0.15x (Specified Accuracy)/ °C @(0 °C-18 °C or 28 °C-40 °C)Or Otherwise Specified |
|
Altitude |
Operating Below 2000m |
|
Dimension |
264(L) x 97(W) x 43(H) mm |
|
Weight |
Approx. 608gm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $213.41
-70%$213.41
$64.02
