Kusam-meco Autoranging Digital Multimeter 5-4/5 Digits 500,000 Counts KM 859CF

Kusam-meco Autoranging Digital Multimeter 5-4/5 Digits 500,000 Counts KM 859CF

Product Description

  • 100kHz Bandwidth voltage function

  • Record MAX, MIN, MAX-MIN readings

  • Crest (Instantaneous Peak Hold) MAX, MIN,MAX- MIN readings

  • Relative zero mode

  • 500,000 counts high resolution stable reading mode

  • dBm readings

  • %4-20mA loop current readings

  • High noise rejection filtered Line Level

  • Frequency mode

  • Line Level Frequency with 4 Trigger Levels

  • HBC Fuse Protection

  • DC Voltage Basic Accuracy 0.02%

  • Fully Autoranging

  • Backlighted display

  • T1-T2 differential Temperature readings

  • Fast Data Measurement 5/sec

  • Data Hold, Diode Test & Duty Cycle

  • Audible & Visible input warning

  • Auto Power Off

Product Specification

Brand

Kusam-meco

Product Model

KM 859CF

Product Type

Digital Multimeter

Display

4-4/5 Digits 50,000 Counts

Selectable Stable Mode
5-4/5 Digits 500,000 counts for DC Voltage &
6 Digits 999,999 Counts for H

Power Supply

Single Alkaline 9V Battery

Power Consumption

6mA

Sensing

AC, AC + DC True RMS

Update Rate

4-4/5 Digits Fast Mode : 5 Per Second Nominal
5-4/5 Digits Stable Mode : 1.25 Per Second Nominal
42 Segments Analog Bar Graph :60 Per Second Max

Polarity

Automatic

Low Battery

Below approx 7V

Operating Temperature

0 °C to 45 °C

Relative Humidity

Max. 80% R.H. For Temperature Up To 31°C Decreasing Linearly To 50% R.H. at 45°C

Altitude

Operating Below 2000m

Storage Temperature

-20 °C to 60 °C, < 80% R.H. (With Battery Removed)

Temperature Coefficient

Nominal 0.15 x ( Specified Accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 40°C), Or Otherwise Specified

APO Timing

Idle for 17 Minutes

APO Consumption

70mA Typical

Dimension

186(L) mm x 87(W) mm x 35.5(H) mm;
198(L) mm x 97(W) mm x 55(H) mm with Holster

Weight

Approx. 390 gm
Approx. 500 gm with Holster

Warranty

As Per Manufacturer Terms and Condition
$88.79

Original: $295.98

-70%
Kusam-meco Autoranging Digital Multimeter 5-4/5 Digits 500,000 Counts KM 859CF—

$295.98

$88.79

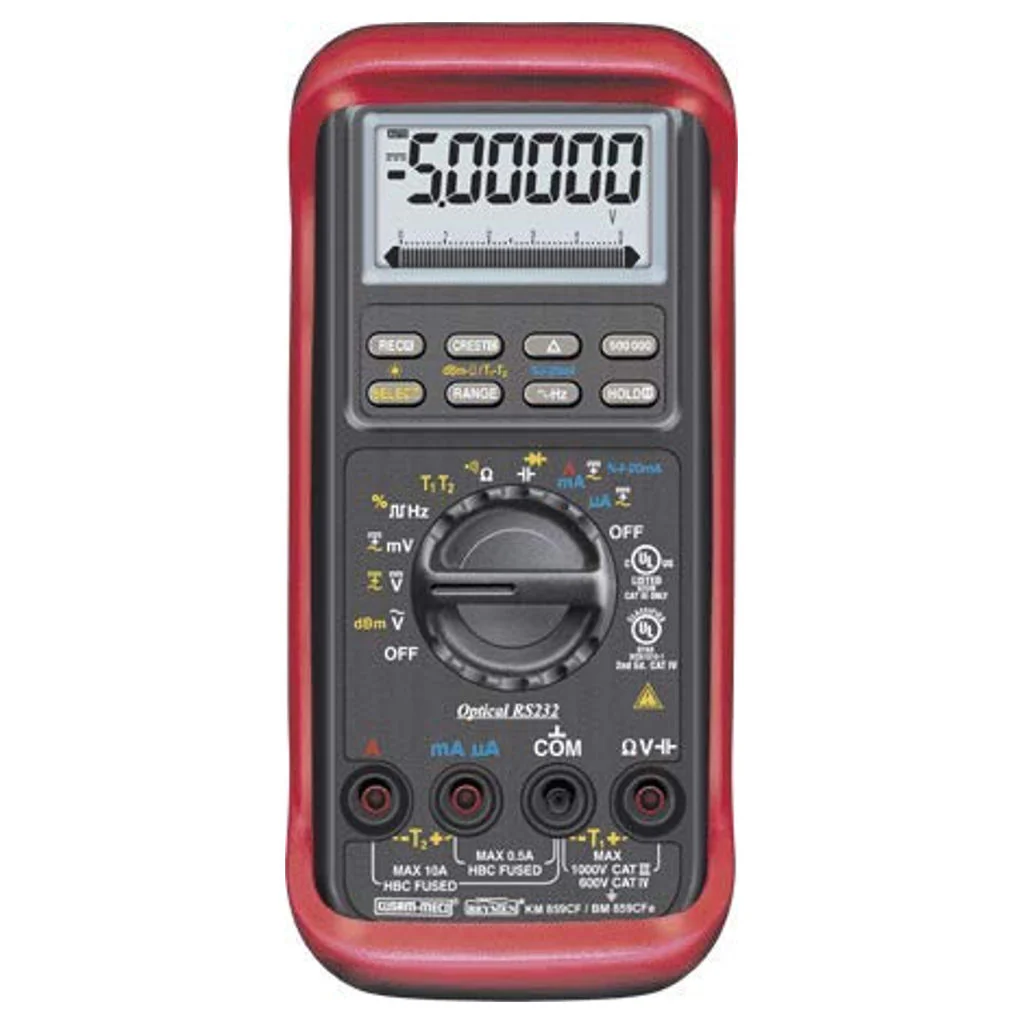

Product image 1
