Kusam-meco Autoranging Digital Multimeter 5-4/5 Digits 500,000 Counts KM 857

Kusam-meco Autoranging Digital Multimeter 5-4/5 Digits 500,000 Counts KM 857

Product Description

  • 500,000 counts high resolution stable reading mode

  • 20kHz Bandwidth voltage function

  • Record MAX, MIN, MAX-MIN readings

    Crest (Instantaneous Peak Hold) MAX, MIN, MAX- MIN readings

  • Relative zero mode

  • dBm readings

  • % 4 -20mA loop current readings

  • High noise rejection filtered Line Level

  • Frequency mode

  • Line Level Frequency with 4 Trigger Levels

  • HBC Fuse Protection

  • DC Voltage Basic Accuracy 0.03%

  • Fully Autoranging

  • Backlighted display

  • Fast Data Measurement 5/sec

  • Data Hold function

  • Diode Test & Duty Cycle

  • Audible & Visible input warning

  • Auto Power Off

Product Specification

Brand

Kusam-meco

Product Model

KM 857

Product Type

Digital Multimeter

Display

4-4/5 Digits 50,000 Counts

Selectable Stable Mode
5-4/5 Digits 500,000 Counts for DC Voltage &
6 Digits 999,999 Counts for Hz

Power Supply

Single Alkaline 9V Battery

Power Consumption

55μA Typical

Sensing

AC, AC + DC True RMS

Update Rate

4-4/5 Digits Fast Mode : 5 Per Second Nominal
5-4/5 Digits Stable Mode : 1.25 Per Second Nominal
42 Segments Analog Bar Graph :60 Per Second Max

Polarity

Automatic

Low Battery

Below Approx 7V

Operating Temperature

0 °C to 45 °C

Relative Humidity

Maximum 80% R.H. For o Temperature upto 31 C decreasing linearly to o 50% R.H. at 45 C

Altitude

Operating Below 2000m

Storage Temperature

-20 °C to 60 °C, < 80% R.H. (With Battery Removed)

Temperature Coefficient

nominal 0.1 x o o (specified accuracy) / °C @ (0 C -- 18 C or o o 28 C -- 40 C), or otherwise specified

APO Timing

Idle for 17 Minutes

APO Consumption

70mA Typical

Dimension

186(L) mm x 87(W) mm x 35.5(H) mm
198(L) mm x 97(W) mm x 55(H) mm with Holste

Weight

Approx. 390 gm,
Approx. 500 gm with Holster

Warranty

As Per Manufacturer Terms and Condition
$65.29

Original: $217.63

-70%
Kusam-meco Autoranging Digital Multimeter 5-4/5 Digits 500,000 Counts KM 857—

$217.63

$65.29

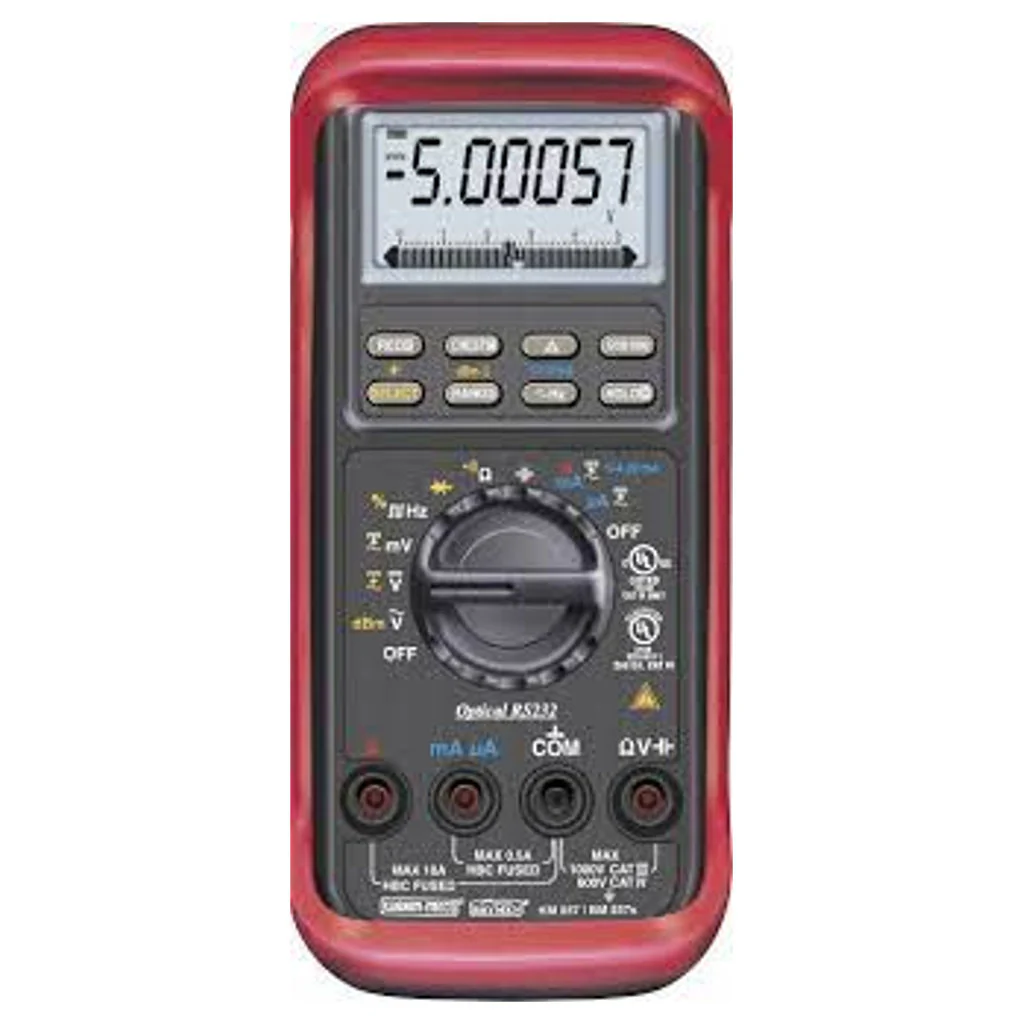

Product image 1
