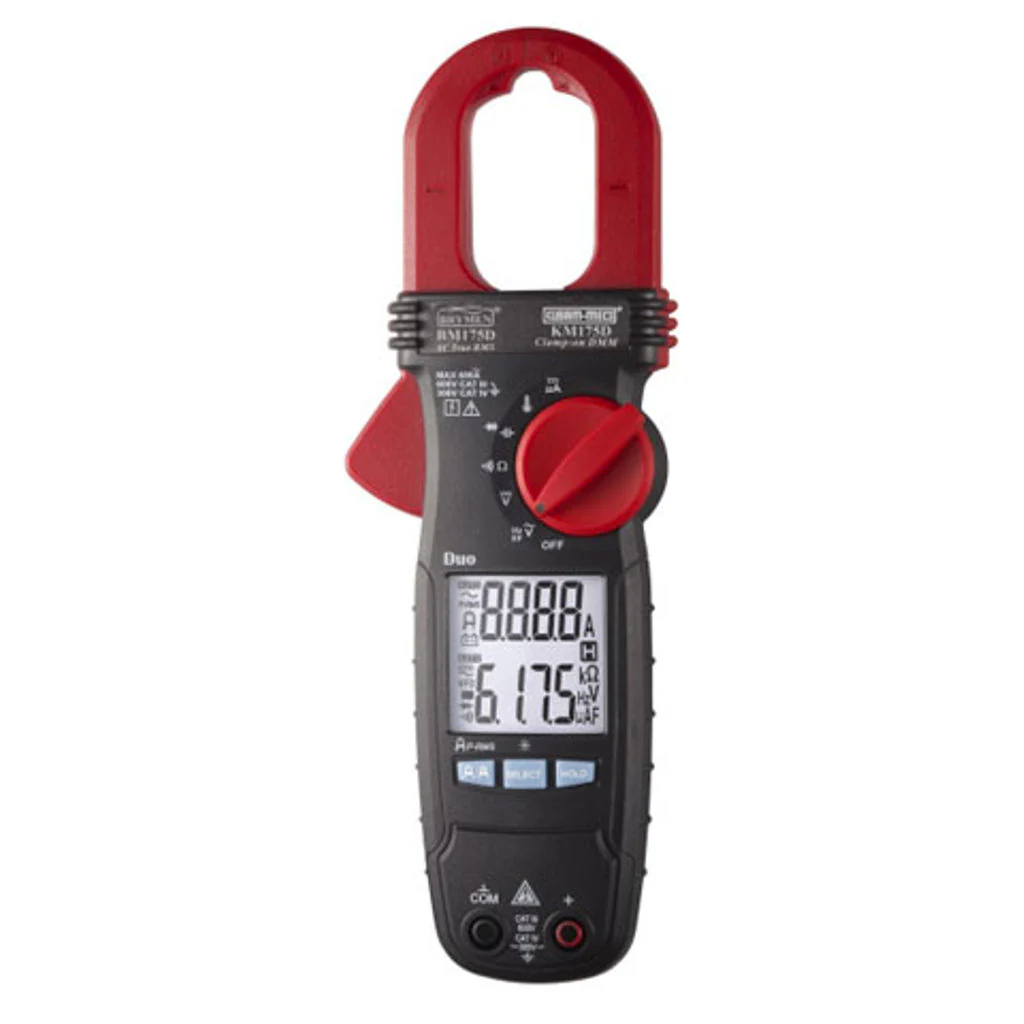

Kusam-meco AC True RMS Digital Clampmeter KM 175D
Product Description
-
AmpTip low-current range
-
Backlighted LCD display
-
Duo-Core to simultaneously measure clamp-on Amps + A DMM functions
-
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
-
Display Hold & Non-Contact EF-Detection (NCV)
-
AC True RMS Voltage & Current functions
-
Fast 80ms Peak-RMS mode to capture in-rush currents
-
Probe contact EF-Detection for more precise indication of live
-
Line level ACV frequency 10.00Hz to 999.9Hz
-
Cx ranges 200.0 µF to 2500 µF for start & Run Motor Capacitors
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
KM 175D |
|
Product Type |
Clampmeter |
|
Power Supply |
Standard 1.5V AAA Battery x 2 |
|
Power Consumption |
Typical 6.2 mA |
|
APO Timing |
Idle for 3 Minutes |
|
APO Consumption |
230 µ A Typical on Voltage & Current Function |
|
Sensing |
True TRMS |
|
Jaw Opening Size & Conductor Diameter |
30mm Max |
|
Display |
3-5/6 Digits 6000 counts, dual display |
|
Update Rate |
5 Per Second Nominal |
|
Polarity |
Automatic |
|
Low Battery Indication |
Below Approx. 2.4V |
|
Operating Temperature |
0 °C to 40 °C |
|
Relative Humidity |
Maximum 80% R. H. for Temperature Upto 31° C Decreasing Linearly To 50% Relative Humidity At 40° C |
|
Storage Temperature |
-20 °C to 60 °C,<80% RH (With Battery Removed) |
|
Temperature Coefficient |
Nominal 0.15x (Specified Accuracy)/ °C @(0 °C-18 °C or 28 °C-40 °C)Or Otherwise Specified |
|
Altitude |
Operating Below 2000m |
|
Low Battery |
Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V For other Functions |
|
Dimension |
217(L) x 76(W) x 37(H)mm |
|
Weight |
Approx. 189gm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $144.91
-70%$144.91
$43.47
Description
Product Description
-
AmpTip low-current range
-
Backlighted LCD display
-
Duo-Core to simultaneously measure clamp-on Amps + A DMM functions
-
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
-
Display Hold & Non-Contact EF-Detection (NCV)
-
AC True RMS Voltage & Current functions
-
Fast 80ms Peak-RMS mode to capture in-rush currents
-
Probe contact EF-Detection for more precise indication of live
-
Line level ACV frequency 10.00Hz to 999.9Hz
-
Cx ranges 200.0 µF to 2500 µF for start & Run Motor Capacitors
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
KM 175D |
|
Product Type |
Clampmeter |
|
Power Supply |
Standard 1.5V AAA Battery x 2 |
|
Power Consumption |
Typical 6.2 mA |
|
APO Timing |
Idle for 3 Minutes |
|
APO Consumption |
230 µ A Typical on Voltage & Current Function |
|
Sensing |
True TRMS |
|
Jaw Opening Size & Conductor Diameter |
30mm Max |
|
Display |
3-5/6 Digits 6000 counts, dual display |
|
Update Rate |
5 Per Second Nominal |
|
Polarity |
Automatic |
|
Low Battery Indication |
Below Approx. 2.4V |
|
Operating Temperature |
0 °C to 40 °C |
|
Relative Humidity |
Maximum 80% R. H. for Temperature Upto 31° C Decreasing Linearly To 50% Relative Humidity At 40° C |
|
Storage Temperature |
-20 °C to 60 °C,<80% RH (With Battery Removed) |
|
Temperature Coefficient |
Nominal 0.15x (Specified Accuracy)/ °C @(0 °C-18 °C or 28 °C-40 °C)Or Otherwise Specified |
|
Altitude |
Operating Below 2000m |
|
Low Battery |
Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V For other Functions |
|
Dimension |
217(L) x 76(W) x 37(H)mm |
|
Weight |
Approx. 189gm |
|
Warranty |
As Per Manufacturer Terms and Condition |
