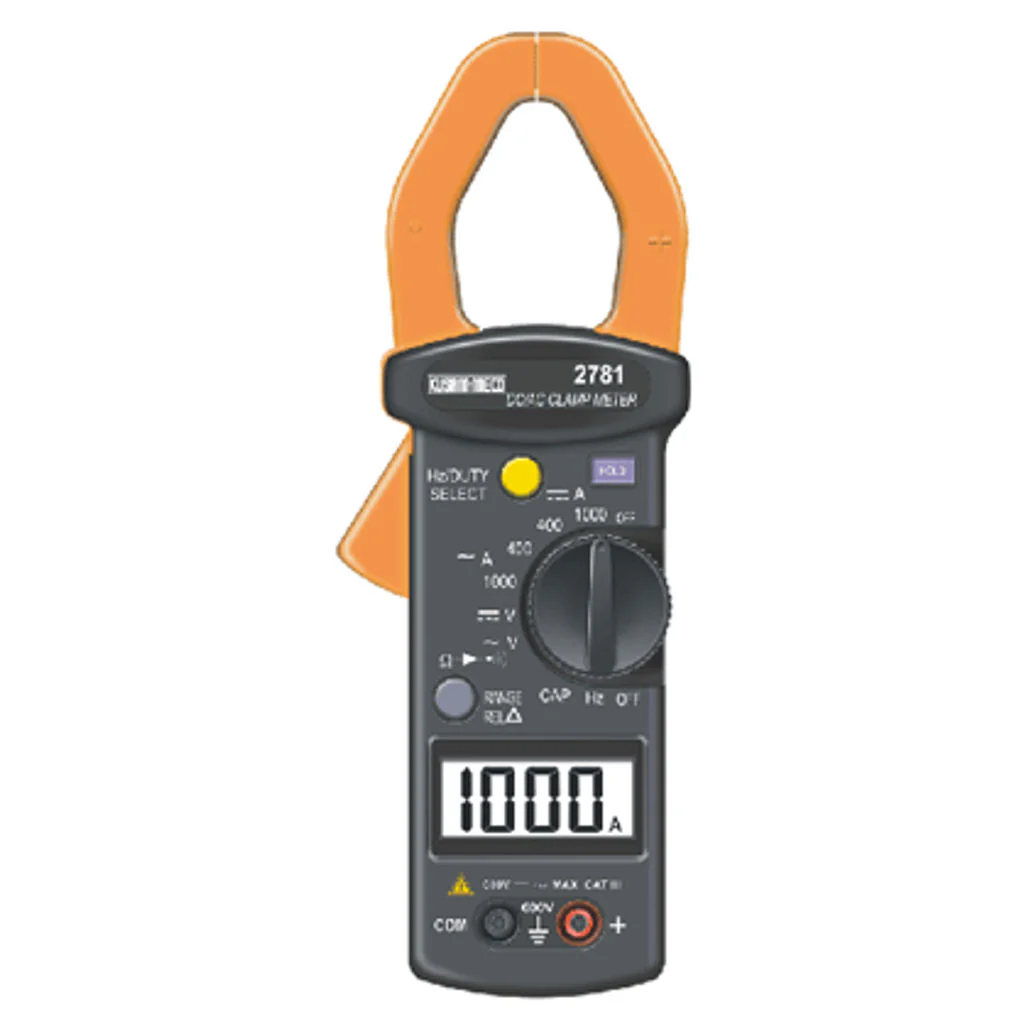

Kusam-meco AC/DC Digital Clampmeter 3½ Digits 2781
Product Description
-
Overload protection on all ranges
-
Maximum Voltage between any terminal and earth ground 600V rms
-
Dual slope integration
-
Data-hold facility
-
DCA zero button for accurate reading
-
Low battery indication
-
Auto power off
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
2781 |
|
Product Type |
Digital Clampmeter |
|
Power Supply |
1.5V AAA x 2 |
|
Display |
3 ¾ Digit 3999 Counts Liquid Crystal LCD display |
|
Sensing |
Average Sensing |
|
Jaw Opening Size |
Cables Ø 40mm |
|
Over Range Indication |
Display
of “OL” on LCD At The Highest Position Means Range Selection
Too Low For The Input |
|
Polarity |
Symbol “-” Automatic Displayed For Negative Input |
|
Sampling Rate |
3 Times Per Second (Digital Display) |
|
Auto Power Off |
The Meter Is Automatically Powered Off After Idling For 15 Minutes To Awake The Meter, Turn The Rotary Function Switch Or Push Any Button |
|
Operating Temperature & Humidity |
0°C to 40°C; < 80% R.H. Non-Condensing |
|
Low Battery |
The Symbol " -+ " Is Displayed When The Batteries Are Weak And Below The Operating Voltage Replace Batteries Immidiately |
|
Battery Life |
Approx. 60 Hrs Continuously Use With Alkaline Batteries |
|
Dimension |
228(L) x 75(W) x 36(H)mm |
|
Weight |
Approx. 465 gms. (Including Battery) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $53.14
-70%$53.14
$15.94
