KMP V4 Submersible Pump Set 25Feet 3Phase KMP4T-7.5/50 H

Product Description

• Other Details

• V4 Submersible Pump are multistage centrifugal units which operate below water level and are driven by water filled AC single phase (or) three phase induction submersible motors

• Their pumps are well suited for borewell diameter of minimum 4" (or) 100 mm

• Our pumps work on principle of a modular structure where with limited number of parts different tailor made request can be achieved

• A dynamically balanced rotor rotates in a oversized twin bearings on each bearing housing

• An installed diaphragm in the lower motor housing provides pressure / volume compensation of the motor during internal motor temperature changes

• This is a very special and successful product because of its simple assembly concept

• Salient Features

• Three is a wide range of pumps to match any duty point

• High pump efficiency

• Due to less weight installation cost is very less

• Semi axial impellers make priming automatic

• Easy to dismantle and repair due to right construction

• Application

• Domestic water supply

• Small irrigation

• Civil and industrial applications

• Fire fighting applications

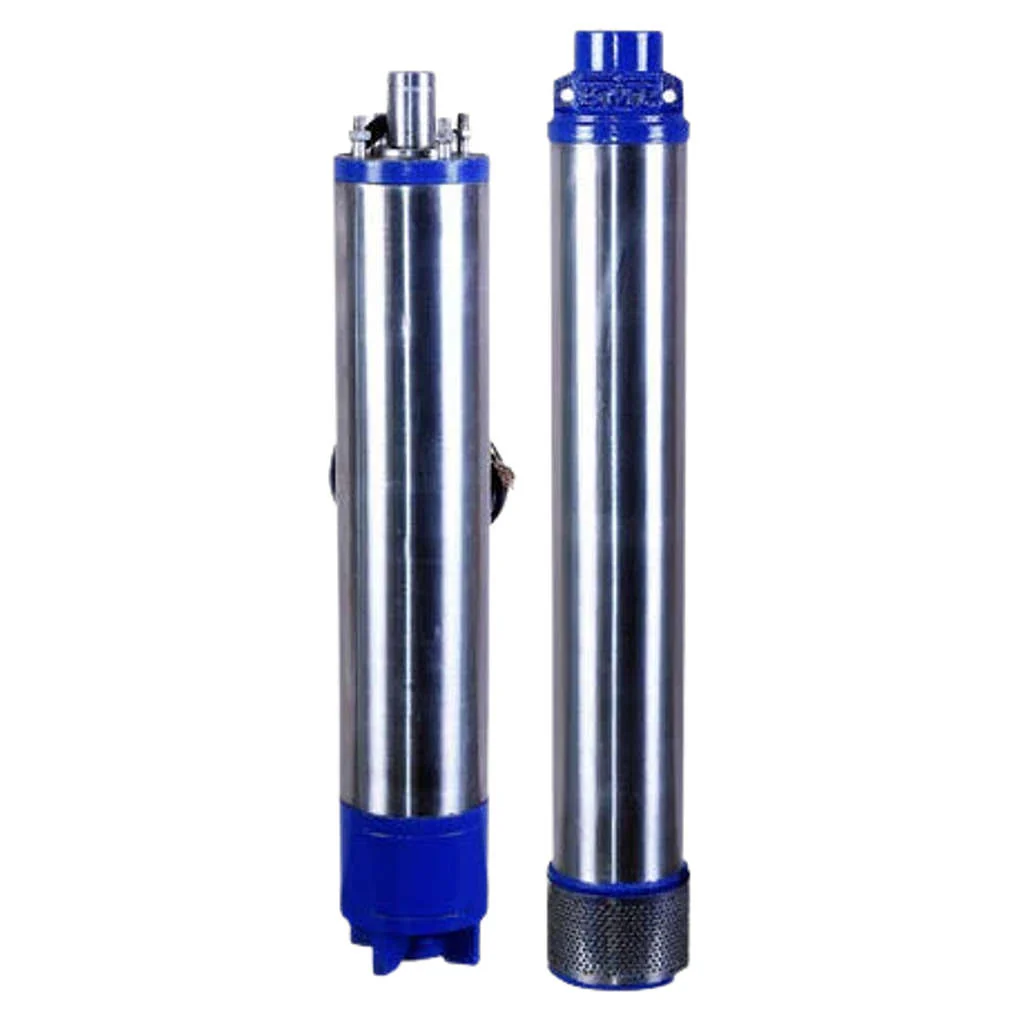

• Note*Actual product image may vary from that shown on the picture

Product Specification

Brand	KMP
Product Type	Submersible Pumps Set
Product Model	KMP4T-7.5/50 H
Series	V4
H.P	7.5
Stage	50
Delivery	1¼ Inch
Head(Feet)	1250
Speed	2900 RPM
Operating Voltage	360V to 415V
No Of Phase	Three Phase
Discharge	6.0 LPS - 0.2 LPS
Maximum Starts Per Hour	20 Times
Method Of Starting	DOL - 3 Phase
Note	Control Panel Not Included
Warranty	As Per Manufacturer Terms And Conditions

Other Details

Dimension (CM) LxBxH	63 x 24 x 10
Unit Of Measurement	1 Piece
Weight	19 kg
Generic Name	Submersible Pumps Set
Manufacturer Details	KMP Industries No. 43/183, A Puthu Thottam, E.N.G.Pudur Urumandampalayam, Coimbatore - 641029, Tamil Nadu,+91-8048978981
Packer Details	KMP Industries No. 43/183, A Puthu Thottam, E.N.G.Pudur Urumandampalayam, Coimbatore - 641029, Tamil Nadu,+91-8048978981
Country Of Origin	India
