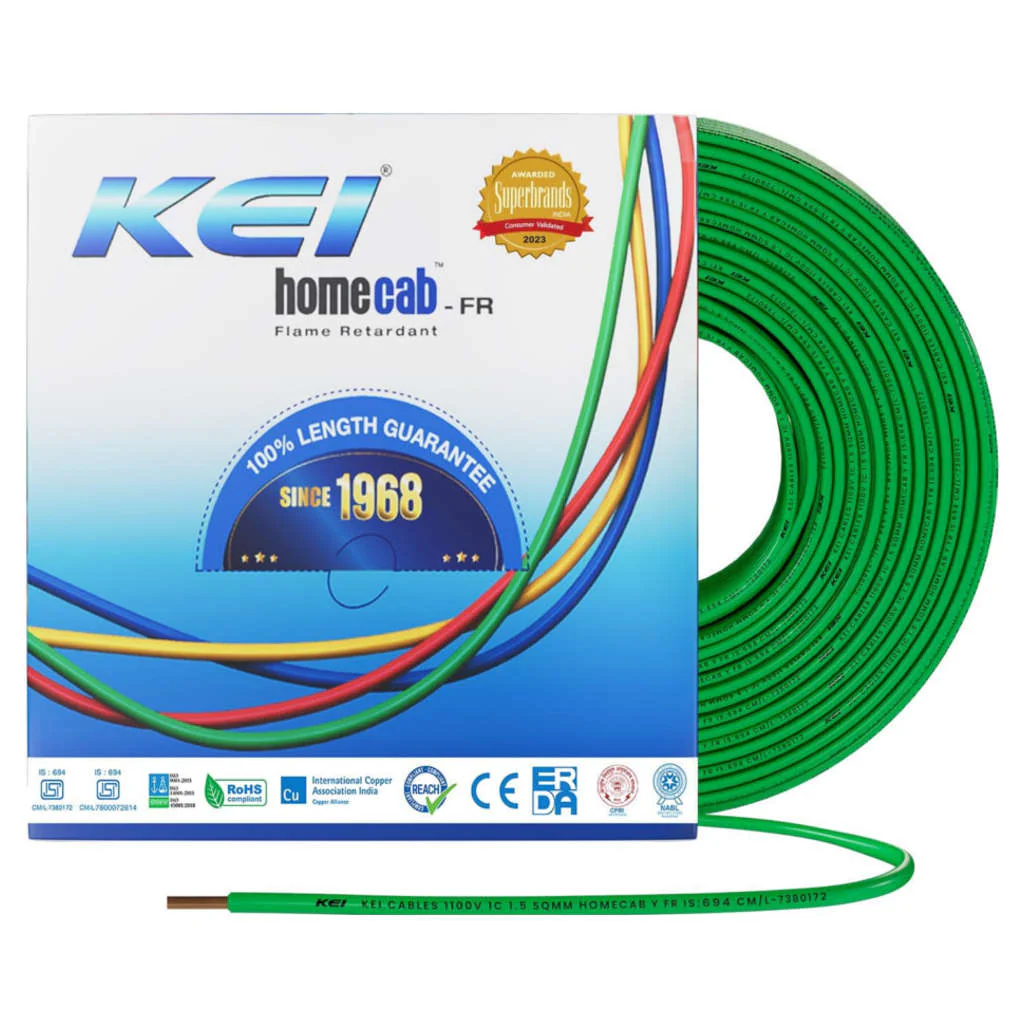

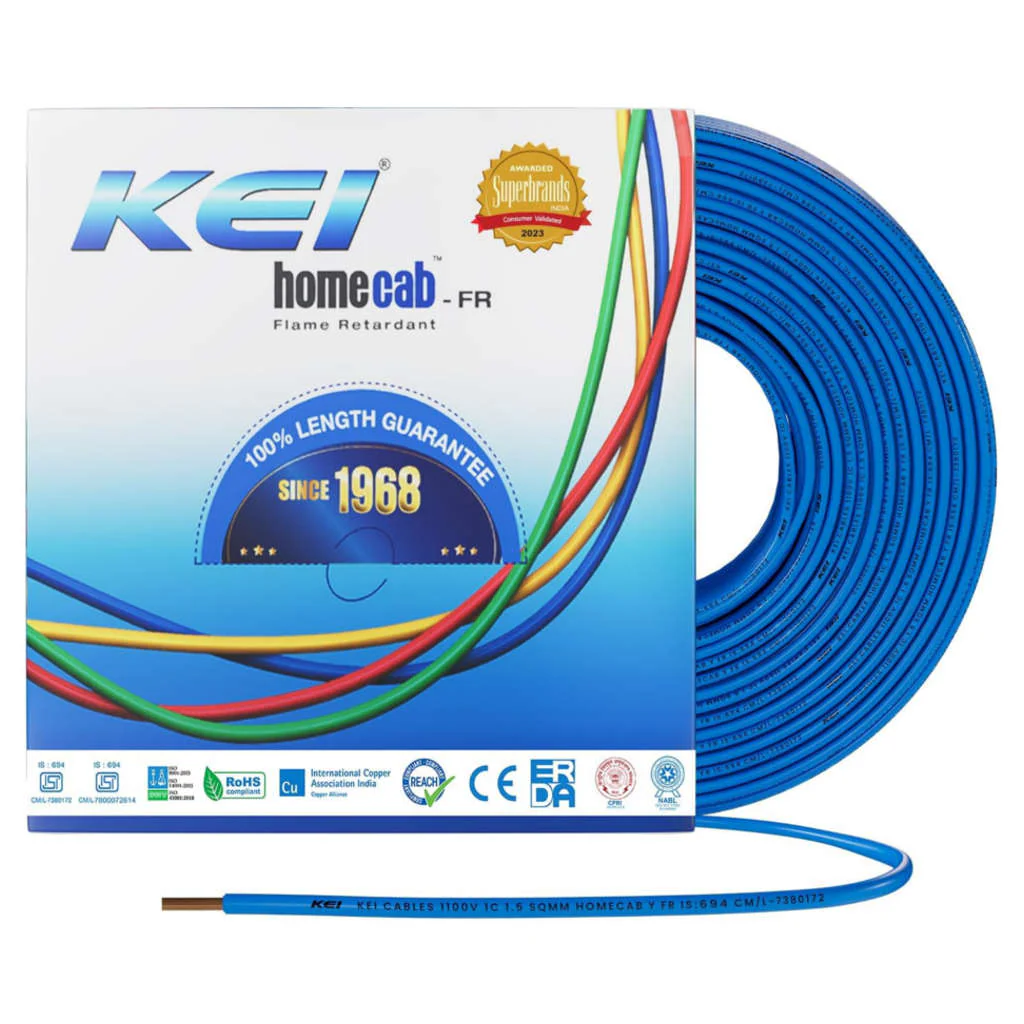

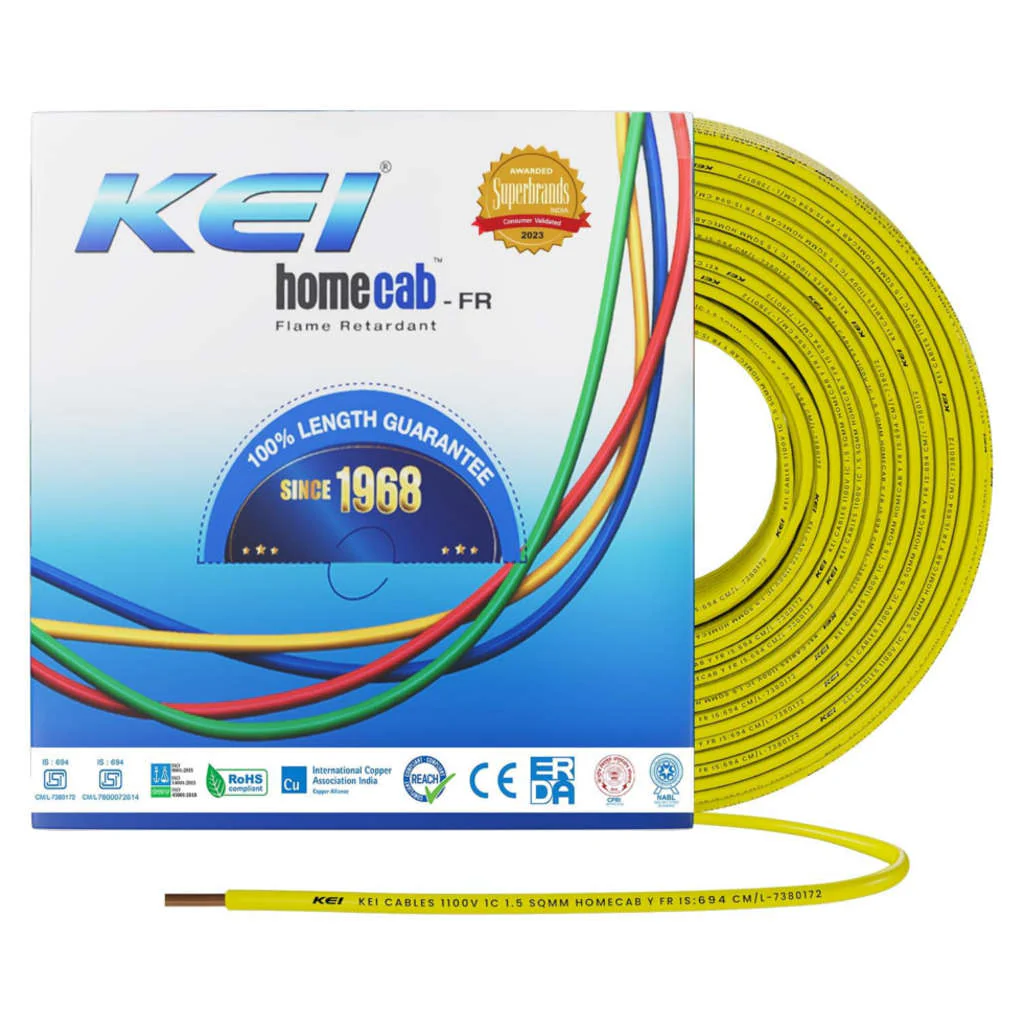

KEI HomeCab FR Unsheathed Single Core Flexible Cable PVC Insulated 4Sq.mm 90Meter

KEI HomeCab FR Unsheathed Single Core Flexible Cable PVC Insulated 4Sq.mm 90Meter

Product Description

  • HomeCab is a multi-stranded flexible wire with flame retardant properties

  • It has specially formulated insulation with a high oxygen and temperature index, enabling the wire to withstand overloads preventing electric mishaps

  • So, give yourself the promise of security and supreme quality

  • Conductor

  • The conductors, drawn from bright electrolytic grade copper and annealed and bunched together

  • Insulation

  • The bunched conductors are insulated with specially formulated FR PVC compound with a high insulation resistance value

  • The insulation process is carried out on modern high speed extrusion lines, which ensures high accuracy and consistency in performance

  • Flame retardant properties enable the cable to withstand overloads

  • The insulation is resistant to boiling water, steam and vapors

  • This prevents ageing and cracking in kitchens, bathrooms, damp walls and chemical industries

  • Applications

  • These cables are used for wiring domestic and commercial buildings

  • A fine drawn multi strand conductor provides enhanced Flexibility & makes it ideal for concealed wiring

  • It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C)

  • Features

  • Excellent Electrical & mechanical properties

  • High Flame retardant properties

  • Higher Flexibility ensure easy handling & longer life

  • Steam and boiling water resistant & anti-rodent

  • FR-Flame Retardant

Product Specification

Brand

KEI

Product Type

Flexible Cable

Product Model

HomeCab FR

Color

Red

Black

Blue

Green

Yellow

Cable Length

90 Meter

Conductor Area

4 Sq.mm

No & Size Of Wire

56/0.30 mm

Current Rating

26 Amps

No Of Cores

Single Core

Rated Voltage

1100 V

Conductor

99.98% pure electrolyte grade Bright annealed bare Copper

Insulation

FR+HR PVC compound with a high insulation resistance ensures uninterrupted power supply at all weather condition

Operating Temperature

-15℃ to maximum + 85℃

Insulation Material

PVC

Conductor Material

Copper

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) LxWxH

21.3 x 15.5 x 20

Unit Of Measurement

1 Piece

Weight

4.7 kg

Generic Name

1 Core Flexible Cables 90 Meter

Manufacturer Details

KEI Industries Limited,

D-90, Okhla Industrial Area Phase-I,

New Delhi-110020, India.

Tel : +91-11-26818840 / 8642 / 0242

Fax : 26817225, 26811959

E-mail : [email protected]

Packer Details

KEI Industries Limited,

D-90, Okhla Industrial Area Phase-I,

New Delhi-110020, India.

Tel : +91-11-26818840 / 8642 / 0242

Fax : 26817225, 26811959

E-mail : [email protected]

Country Of Origin

India

Select Color
From $22.95

Original: $76.51

-70%
KEI HomeCab FR Unsheathed Single Core Flexible Cable PVC Insulated 4Sq.mm 90Meter

$76.51

$22.95
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
