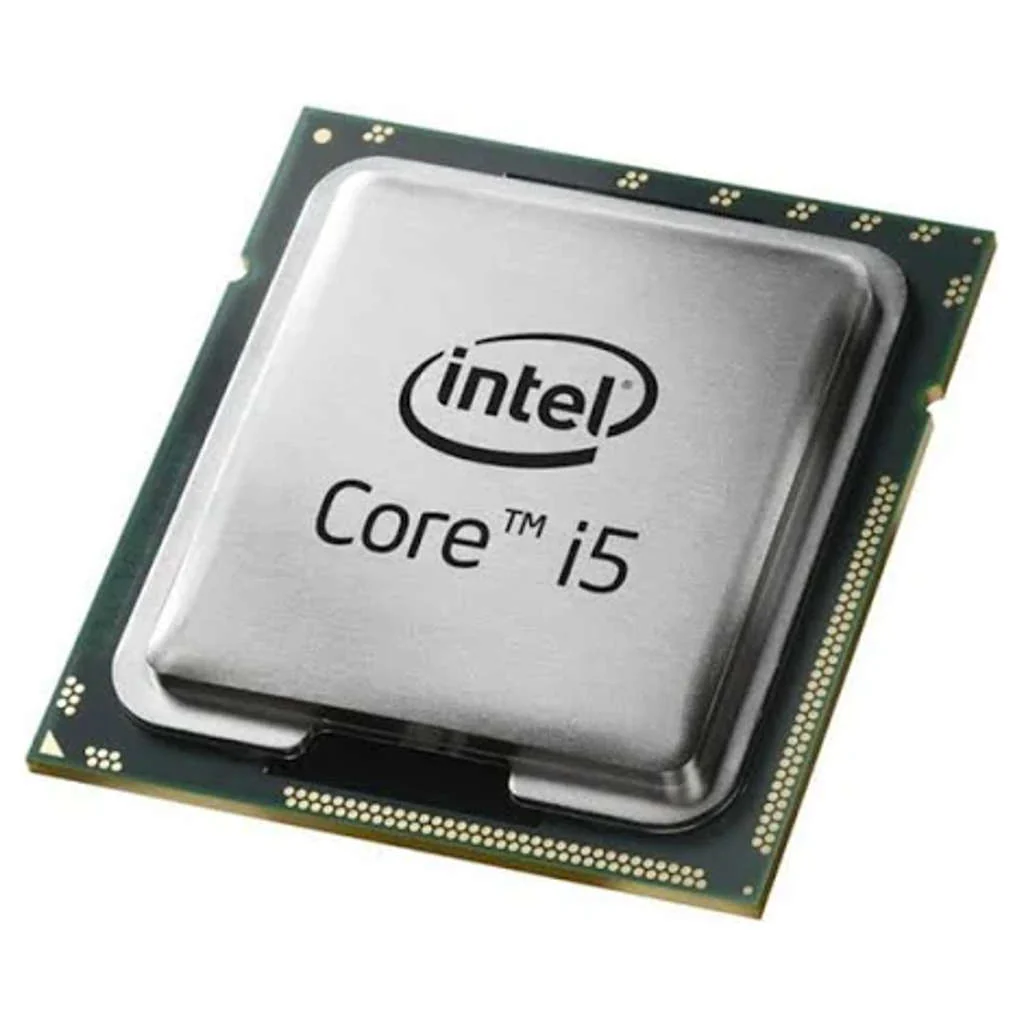

Intel i5 Core 3rd Generation Processor

Product Description

• Intel's 3rd Generation i5 Core Processors are 64-bit, multi-core processors built on 22nm process technology

• The processor is designed for a two-chip platform

• The two-chip platform consists of a processor and a Platform Controller Hub(PCH) and enables higher performance, lower cost, easier validation, and improved x-y footprint

• The processor includes Integrated Display Engine, Processor Graphics, and an Integrated Memory Controller

• The processor is designed for desktop or mobile platforms

• Intel's i5 Core Processors provide up to a 3.4GHz clock speed, Max TDP of 77W, 32GB Max Memory, and a Intel HD Graphics 2500 or 4000 processor

• Graphics

• Intel HD Graphics 2500 or 4000 Processor Graphics

• 350MHz, 650MHz or 950MHz Graphics Base Frequency

• 1.05GHz, 1.1GHz or 1.15GHz Graphics Max Dynamic Frequency

• Intel Quick Sync Video

• Intel InTru 3D Technology

• Intel Insider

• Intel Flexible Display Interface(Intel FDI)

• Intel Clear Video HD Technology

• 3 Displays Supported

• Advanced Technologies

• Intel Turbo Boost 2.0 Technology(not included on all models)

• Intel Hyper-Threading Technology(not included on all models)

• Intel Virtualization Technology(VT-x)

• Intel vPro Technology(not included on all models)

• AES New Instructions

• Intel 64

• Intel Anti-Theft Technology

• Intel My WiFi Technology(not available on all models)

• Idle States

• Enhanced Intel SpeedStep Technology

• Thermal Monitoring Technologies

• Execute Disable Bit

• Intel VT-x with Extended Page Tables(EPT)

• Intel Identity Protection Technology

Product Specification

Brand	Intel
Product Type	Processor
Product Model	i5 3rd Generation
General Specification	2 or 4 Cores, 4 Threads, Up to 3.4GHz Clock Speed, Up to 3.8GHz Max Turbo Frequency, 3MB or 6MB Intel Smart Cache, 5 GT/s DMI, 64-bit Instruction Set, AVX Instruction or SSE4.1/4.2, AVX Instruction Set Extensions, 22nm Lithography, 77W Max TDP
Memory Specification	16GB or 32GB Max Memory Size(dependent on memory type), DDR3/L/-RS 1333/1600 Memory Types, 2 Memory Channels, 25.6GB/s Max Memory Bandwidth
Expansion Options	PCI Express Revision 2.0 or 3.0, 1x16, 2x8, 1x8, 2x4 PCI Express Configurations
Package Specification	1 Max CPU Configuration, 37.5mm x 37.5mm(rPGA988B & FCLGA1155) or 31.0mm x 24.0mm(BGA1023) package size, FCPGA988, FCBGA1023 or FCLGA1155 Sockets Supported
Warranty	As Per Manufacturer Terms and Condition
